What is the difference between a smoke curtain and a smoke barrier

Views: 81     Author: Site Editor     Publish Time: 2024-07-04      Origin: Site

Smoke curtains and smoke barriers are two critical components in fire protection and smoke control systems, designed to manage the spread of smoke in buildings during a fire. While they share some similarities, they also have distinct differences in their design, functionality, and applications. This detailed exploration will delve into the differences between smoke curtains and smoke barriers, covering their definitions, types, materials, installation methods, applications, advantages, and regulatory considerations, with a word count around 2,000.

Definitions

4

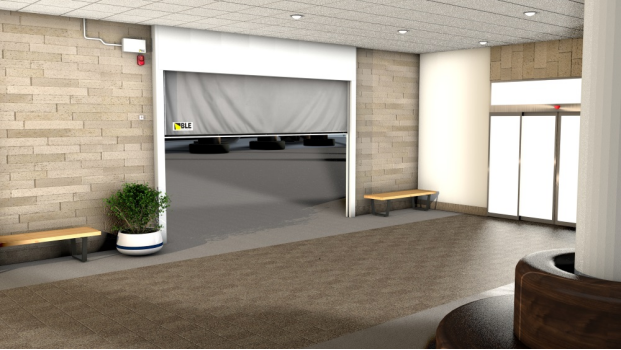

Smoke Curtain: A smoke curtain is a flexible, retractable barrier designed to contain and control the movement of smoke during a fire. It is typically made from fire-resistant fabrics and can be deployed from the ceiling or stored inconspicuously until needed. Smoke curtains are often used to create temporary smoke compartments or to protect escape routes and critical areas.

Smoke Barrier: A smoke barrier is a fixed or permanent construction designed to restrict the movement of smoke. It is usually made from rigid, fire-resistant materials such as gypsum board, concrete, or steel. Smoke barriers are built into the structure of a building and are used to create fire-rated compartments or zones that prevent the spread of smoke from one area to another.

Types

Types of Smoke Curtains:

1. Vertical Smoke Curtains: These curtains descend from the ceiling to the floor or a specified height to create a vertical barrier against smoke.

2. Horizontal Smoke Curtains: These curtains deploy horizontally across openings such as atriums, escalators, or stairwells to contain smoke.

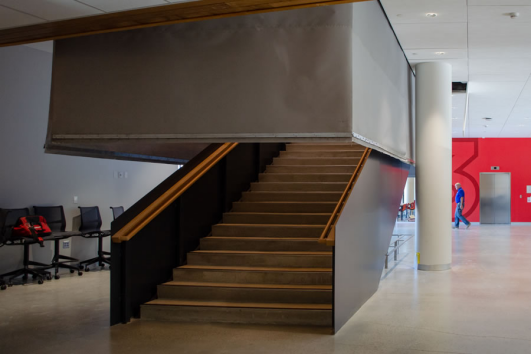

3. Draft Curtains: These are fixed smoke curtains that hang from the ceiling to direct smoke towards smoke vents or extraction systems.

Types of Smoke Barriers:

1. Wall Smoke Barriers: These are vertical walls made of fire-resistant materials that extend from floor to ceiling and sometimes beyond to form a complete barrier.

2. Ceiling Smoke Barriers: These are horizontal barriers installed within the ceiling assembly to prevent the spread of smoke through ceiling cavities.

3. Floor Smoke Barriers: These barriers are integrated into the floor assembly to stop smoke from spreading between different levels of a building.

Materials

Materials Used in Smoke Curtains:

1. Fiberglass Fabric: Often coated with silicone or polyurethane to enhance fire resistance and durability.

2. Kevlar: High-strength material known for its excellent heat resistance.

3. E-glass: A type of glass fiber that offers good fire-resistant properties.

Materials Used in Smoke Barriers:

1. Gypsum Board: Fire-rated gypsum board is commonly used in wall and ceiling assemblies.

2. Concrete: Provides robust fire resistance and structural integrity.

3. Steel: Used for its strength and ability to withstand high temperatures.

4. Fire-Rated Glass: Used in areas where visibility and natural light are needed while still providing smoke protection.

Installation Methods

6

Installation of Smoke Curtains:

1. Ceiling Mounted: Smoke curtains are often installed within the ceiling cavity, with the mechanism concealed until activation.

2. Surface Mounted: For existing structures, smoke curtains can be surface-mounted to the ceiling or walls.

3. Integrated Systems: In new constructions, smoke curtains can be integrated into the building’s fire safety systems and connected to fire alarms for automatic deployment.

Installation of Smoke Barriers:

1. Incorporated into Building Structure: Smoke barriers are usually part of the building’s original design and construction, integrated into walls, floors, and ceilings.

2. Retrofit Installations: In existing buildings, additional smoke barriers can be installed to enhance fire safety, often requiring significant modifications to the structure.

Applications

Applications of Smoke Curtains:

1. Atriums and Large Open Spaces: Smoke curtains are ideal for open spaces where smoke needs to be contained without obstructing the architecture.

2. Escape Routes: Used to protect corridors, stairwells, and lobbies, ensuring clear and safe evacuation paths.

3. Elevator Shafts: Deployed to prevent smoke from spreading through elevator shafts and compromising multiple floors.

4. Shopping Centers and Malls: Used to compartmentalize large areas and protect occupants and assets.

Applications of Smoke Barriers:

1. Compartmentalization: Creating fire-rated compartments within buildings to prevent the spread of smoke and fire.

2. Healthcare Facilities: Protecting vulnerable areas such as patient rooms, operating theaters, and intensive care units.

3. Residential Buildings: Ensuring that smoke does not spread between apartments or common areas.

4. Industrial Facilities: Used in manufacturing plants, warehouses, and other industrial settings to protect equipment and personnel.

Advantages

Advantages of Smoke Curtains:

1. Flexibility: Can be deployed and retracted as needed, making them suitable for various architectural designs.

2. Aesthetic Integration: When not in use, smoke curtains remain hidden, preserving the aesthetic appeal of the building.

3. Automatic Operation: Can be connected to fire alarm systems for automatic deployment during a fire.

4. Cost-Effective: Typically less expensive to install and maintain compared to permanent smoke barriers.

Advantages of Smoke Barriers:

1. Permanent Protection: Provides continuous and reliable smoke control without the need for deployment.

2. Structural Integrity: Enhances the overall fire resistance of the building by creating solid, fire-rated compartments.

3. No Maintenance Required: Unlike smoke curtains, fixed barriers do not require regular testing or maintenance.

4. Compliance with Building Codes: Often required by building codes and regulations, especially in high-risk areas.

Regulatory Considerations

Regulations for Smoke Curtains:

1. NFPA 92: The National Fire Protection Association’s standard for smoke control systems includes guidelines for the design, installation, and testing of smoke curtains.

2. EN 12101-1: European standard for smoke and heat control systems, specifying requirements for smoke barriers and curtains.

3. Local Building Codes: Vary by region but often include specific requirements for the use of smoke curtains in certain types of buildings.

Regulations for Smoke Barriers:

1. IBC (International Building Code): Provides comprehensive requirements for fire barriers, smoke barriers, and smoke partitions.

2. NFPA 101: Life Safety Code, which includes provisions for the installation and use of smoke barriers in various occupancies.

3. BS 9999: British standard for fire safety in the design, management, and use of buildings, which includes guidelines for smoke barriers.

Comparison Summary

Functionality:

· Smoke Curtains: Offer temporary smoke control, ideal for protecting specific areas and pathways.

· Smoke Barriers: Provide permanent smoke containment, creating fire-rated compartments to prevent smoke spread.

Installation:

· Smoke Curtains: Can be retrofitted and are suitable for flexible, modern architectural designs.

· Smoke Barriers: Typically integrated into the building’s structure, offering long-term protection.

Maintenance:

· Smoke Curtains: Require regular testing and maintenance to ensure functionality.

· Smoke Barriers: Generally maintenance-free once installed.

Cost:

· Smoke Curtains: More cost-effective in terms of installation and maintenance.

· Smoke Barriers: Higher initial cost but provide permanent protection.

Aesthetics:

· Smoke Curtains: Concealable and do not impact building aesthetics when not deployed.

· Smoke Barriers: Visible elements of the building structure, which may impact design.

Conclusion

Smoke curtains and smoke barriers are essential components of comprehensive smoke control and fire protection strategies. While smoke curtains offer flexibility, automatic deployment, and aesthetic integration, smoke barriers provide permanent, reliable protection and structural integrity. The choice between using smoke curtains or smoke barriers depends on the specific requirements of the building, including its design, occupancy, and fire safety needs. Both systems play a crucial role in ensuring the safety of occupants and the protection of property during a fire, and understanding their differences helps in making informed decisions about their implementation.
