BS EN 12101-1 Single Or Linkage Control rolling style smoke curtain

There are two types of smoke curtain: Vertical smoke curtain and Horizontal smoke curtain.
We can customized smoke curtain according to your specific requirements.
Availability:
Quantity:
  • AL-ZDDJ
  • ANLIN

BS EN 12101-1 Single Or Linkage Control rolling style smoke curtain

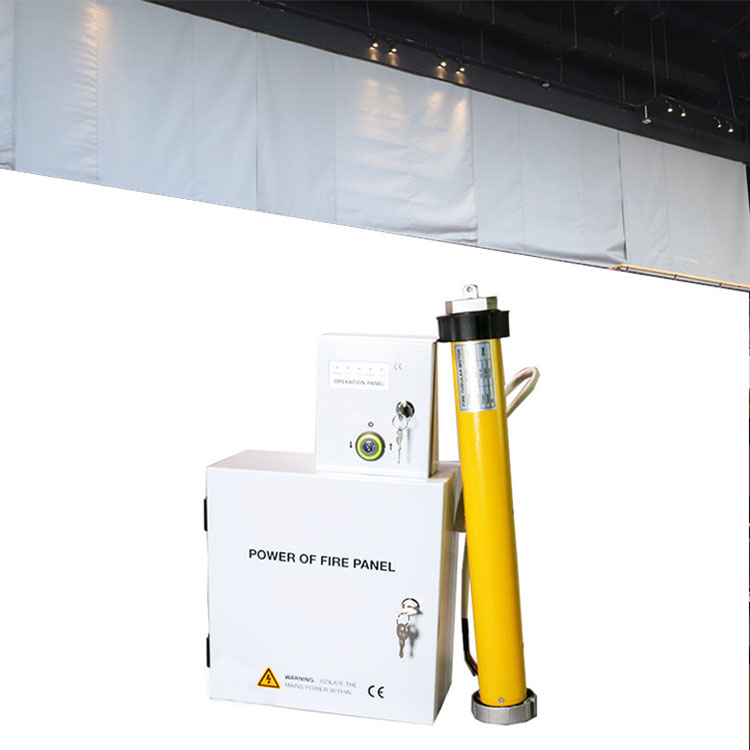

elevator fire curtain

Anlin smoke curtain make up of fiberglass fabric indide stainless steel wire, with double-sided silicone coating material.

Smoke curtain can be applied in escape route, elevator door, elevator lobby, escalators and stairs, Atrium Chimney ,etc..

We can customized smoke curtain according to your specific application scenarios.Passive fire protection

smoke control fire curtains fire smoke curtain fabric


double side silicone coated fabric for smoke curtain

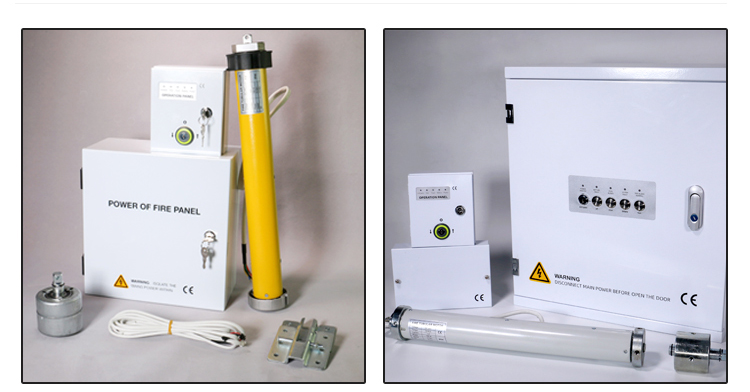

Option 1: 1 control 1 set                                                              Option 2: 1 control 4, 1 control 8, 1 control 12 set

Inclusions:Motor,Controller,operation lock box                            Inclusions:Motor,Group controller, Sub-controller,                                                                                                                                                     operation lock box

rolling smoke curtain

smoke curtain tubular

ANLIN fire & smoke curtain system is composed of two parts: drive and control.

The drive part is mainly composed of motor,roller, idler and fire fabric.
The control part is composed of group control center, motor controller and operation panel.

fire proof curtain

                                                              System Data
Input Voltage 220V/50Hz
Motor Rated Voltage  DC24V
Motor Rated Current  8A
Input Power 192W
Output Power 58W
Torque 30N.m
Lifting weight
15-70kg with 80mm barrel
Speed 18rpm
Level of Protection IP44
Continuous Running time S2 10min
Standby time of batteries back-up when suspending curtain 24h (7Ah)
Descending speed by gra between 0.06m/s and 0.15m/s



                                                         Motor Parameters
Rated Voltage DC21V
Motor Diameter 59mm
Rated Current 8A
Rated Power 192W
Rated Torque 30N.m
Rated Speed 18rpm
IP Level IP44
Battery standby time 2h

chuban0928_13

                                                                                 Control Center Parameters
Rated Voltage AC220V-240V 50Hz
Output Voltage DC24V
3 Models: 1 can control 4,8,12 motors respectively
Self-testing function: control the curtain to descend until the lower limit, then rise to the upper limit.
Automatic reset function: After the fire alarm disappears, the curtain automatically rises to the upper limit.

Automatic descending function without mains power: when there is no mains power, the curtain automatically

descends to the lower limit

chuban0928_14

non combustible curtains

Certification
ANLIN is the only company who is listed in Intertek directory of building products
in accordance with the standard BS EN12101-1:2005+A1
Intertek has conducted an evaluation for FUJIAN ANLIN INTELLIGENT SCIENCE AND TECHNOLOGY CO.,LTD to determine the performance of Reliability and durability, Default operation to fire position, Response time, Permeability to smoke and Temperature/time resistance of the Automatic smoke curtain.

Intertek fire curtain

chuban0928_16

Fujian Anlin Intelligent Technology Co., Ltd. (formerly Zhangzhou Kylin Electronics Co., Ltd.),  is a national high-tech enterprise in Fujian province, which integrates R&D, production, sales and service of intelligent electric windows and doors. Our main products are Rolling door motor, anti-fire rolling door motor, Smoke curtains etc.. We provide customization serverce, welcome to contact with us if any interesting.
