What's a Elevator smoke curtain?

An elevator smoke curtain, also known as an elevator lobby smoke curtain or elevator shaft smoke barrier, is a specialized fire and smoke control system designed to prevent smoke and heat from spreading into elevator shafts and lobbies during a fire emergency. These curtains play a crucial role in enhancing fire safety in buildings by creating a smoke-tight seal at the elevator openings, helping to contain smoke and fire within the area of origin and facilitating the safe evacuation of occupants.

#### Purpose and Importance

The primary purposes of elevator smoke curtains are:

- **Smoke Containment**: They prevent smoke from entering elevator shafts, which can act as vertical chimneys, drawing smoke and heat upward and spreading it to other floors.

- **Firefighter Access**: By keeping elevator lobbies smoke-free, they provide a clear and safe environment for firefighters to access and operate elevators, enabling them to reach different floors quickly.

- **Occupant Safety**: Smoke is a significant hazard during fires, often causing more fatalities than direct flames. Elevator smoke curtains help protect occupants from smoke inhalation as they evacuate the building.

- **Property Protection**: By limiting the spread of smoke and fire, these curtains can minimize damage to building structures and contents.

#### Design and Components

Elevator smoke curtains are typically designed as flexible barriers that can be quickly deployed when activated by a fire alarm system. The key components include:

- **Curtain Material**: The curtains are made from fire-resistant and smoke-sealing materials, such as reinforced fiberglass or silicone-coated fabrics, which can withstand high temperatures and resist burning.

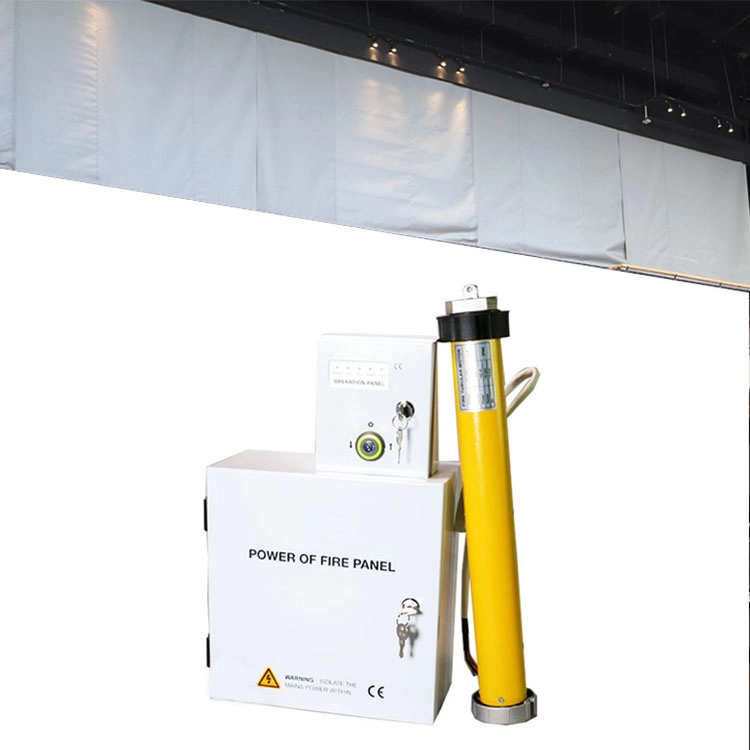

- **Motorized Rollers**: The curtains are stored in compact roller boxes at the top of the elevator openings. When activated, a motorized mechanism quickly deploys the curtain downward to seal the opening.

- **Smoke Sensors**: These sensors detect the presence of smoke and trigger the deployment of the curtains. They are strategically placed in elevator lobbies and shafts to ensure timely activation.

- **Control Panel**: The control system manages the operation of the smoke curtains, receiving signals from smoke sensors and activating the motors to deploy the curtains.

- **Guidance Rails**: To ensure smooth and precise deployment, the curtains are guided by vertical rails or tracks on both sides of the elevator opening.

- **Sealing Mechanism**: The bottom edge of the curtain is designed to create a tight seal with the floor, preventing smoke from passing underneath. This can be achieved using weighted bars, pneumatic seals, or other mechanisms.

- **Backup Power Supply**: In case of power failure, a backup battery system ensures that the smoke curtains can still be deployed and remain operational.

#### Operation and Activation

Elevator smoke curtains are designed to operate automatically in response to a fire alarm. The typical activation process includes:

- **Smoke Detection**: When smoke sensors detect the presence of smoke, they send a signal to the control panel.

- **Curtain Deployment**: Upon receiving the signal, the control panel activates the motorized rollers, causing the curtains to deploy rapidly and seal the elevator openings.

- **Visual and Audible Alarms**: Simultaneously, visual and audible alarms are activated to alert building occupants and firefighters to the fire emergency.

- **Manual Override**: In some systems, there may be a manual override option to deploy or retract the curtains in case of system failure or for maintenance purposes.

#### Compliance and Standards

The design, installation, and operation of elevator smoke curtains are subject to various fire safety codes and standards, which may vary by region and country. Some common standards include:

- **NFPA 80**: This standard, published by the National Fire Protection Association (NFPA) in the United States, provides guidelines for the installation and maintenance of fire doors and other opening protectives, including smoke curtains.

- **EN 1366**: In Europe, the EN 1366 series of standards specifies the requirements for fire resistance and smoke control of curtain systems.

- **Local Building Codes**: Building codes in different jurisdictions may have specific requirements for the installation and performance of elevator smoke curtains.

#### Maintenance and Inspection

Regular maintenance and inspection are essential to ensure the proper functioning of elevator smoke curtains. Routine tasks include:

- **Visual Inspection**: Regularly check the curtains for any signs of damage, wear, or obstruction.

- **Functional Testing**: Periodically test the deployment and retraction of the curtains to ensure they operate smoothly and effectively.

- **Smoke Sensor Testing**: Test the smoke sensors to ensure they are functioning correctly and are sensitive to smoke.

- **Control Panel Inspection**: Check the control panel and backup power supply to ensure they are in good working condition.

- **Documentation**: Maintain detailed records of inspections, tests, and any repairs or replacements performed on the smoke curtain system.

#### Challenges and Considerations

While elevator smoke curtains are effective in enhancing fire safety, there are some challenges and considerations to be aware of:

- **Complexity of Installation**: Installing smoke curtains in existing buildings can be challenging, especially if the elevator openings have irregular shapes or sizes.

- **Maintenance Requirements**: Regular maintenance is crucial to ensure the curtains remain in good condition and function properly when needed.

- **User Awareness**: Building occupants and maintenance personnel should be aware of the presence and function of the smoke curtains to avoid accidental damage or interference.

- **Integration with Fire Alarm System**: The smoke curtains must be seamlessly integrated with the building's fire alarm system to ensure timely and coordinated activation.

#### Future Developments

Advancements in technology are continually improving the effectiveness and reliability of elevator smoke curtains. Some emerging trends include:

- **Smart Smoke Sensors**: The development of more advanced smoke sensors that can differentiate between smoke and other particles, reducing false alarms.

- **Remote Monitoring**: Integration with building management systems and remote monitoring capabilities to allow for real-time monitoring and control of the smoke curtain system.

- **Improved Materials**: The use of new materials and technologies to enhance the fire resistance and smoke-sealing properties of the curtains.

- **Energy Efficiency**: The development of more energy-efficient motorized systems and control mechanisms.

In conclusion, elevator smoke curtains are vital components of fire safety systems in buildings, providing essential protection against the spread of smoke and facilitating safe evacuation and firefighting operations. Their effective design, installation, and maintenance are crucial to ensuring their reliability in the event of a fire emergency.
