What is the difference between a fire curtain and a fire shutter?

### Introduction to Fire Curtains and Fire Shutters

Fire safety is a critical aspect of building design and maintenance, ensuring the protection of lives and property in the event of a fire. Two key components in fire safety systems are fire curtains and fire shutters. While both serve the purpose of compartmentalizing areas to prevent the spread of fire, they differ in their design, installation, and application. This comprehensive guide will delve into the differences between fire curtains and fire shutters, exploring their features, benefits, and appropriate use cases.

### Definition and Basic Functionality

#### Fire Curtains

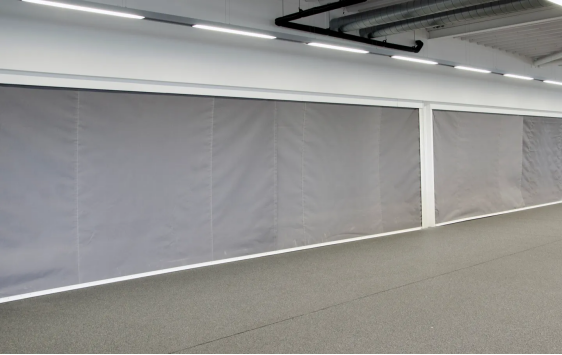

A fire curtain is a vertically deployed barrier that is typically hidden within the ceiling or wall until activated by a fire alarm system. When triggered, the curtain descends to form a physical barrier, effectively compartmentalizing the area and preventing the spread of fire and smoke. Fire curtains are made from high-temperature resistant materials, such as intumescent fabrics, which expand when exposed to heat, providing additional fire resistance.

#### Fire Shutters

A fire shutter, on the other hand, is a horizontally or vertically deployed barrier that is visible and often used in doorways, windows, and openings. Fire shutters are typically made from steel or aluminum and are designed to withstand high temperatures and provide a robust barrier against fire and smoke. They can be manually or automatically operated and are often integrated with fire detection systems for automatic deployment.

### Design and Construction

#### Material Composition

- **Fire Curtains**: Constructed from intumescent fabrics, which are lightweight and flexible. These materials are designed to resist high temperatures and expand when heated, enhancing their fire-resistant properties.

- **Fire Shutters**: Made from heavy-duty materials like steel or aluminum, which offer structural strength and durability. The materials are treated to resist corrosion and high temperatures, ensuring long-term reliability.

#### Deployment Mechanism

- **Fire Curtains**: Deployed vertically from a concealed location, usually within the ceiling or wall. The curtain is rolled out using a motorized system and guided by tracks to ensure smooth and precise deployment.

- **Fire Shutters**: Can be deployed either vertically or horizontally, depending on the application. They are typically stored in a roll above the opening and descend or extend using a motorized or manual mechanism.

### Installation and Integration

#### Visibility and Aesthetics

- **Fire Curtains**: Hidden from view when not in use, making them ideal for maintaining the aesthetic integrity of a space. They are particularly useful in areas where a visible barrier would be disruptive, such as in retail environments or public buildings.

- **Fire Shutters**: Visible at all times, which can impact the aesthetics of a space. However, they are often designed to blend in with the surrounding architecture and can be painted or finished to match the decor.

#### Space Requirements

- **Fire Curtains**: Require minimal space for installation, as they are concealed within the ceiling or wall. This makes them suitable for areas with limited overhead space.

- **Fire Shutters**: Require more space for storage and deployment, especially for larger openings. They may also need additional structural support, which can be a consideration in retrofitting existing buildings.

### Performance and Compliance

#### Fire Resistance Ratings

- **Fire Curtains**: Typically rated for fire resistance up to 4 hours (EI 240), although this can vary depending on the specific material and design. They are tested to meet international standards such as EN 1634-1 and BS 8524-1.

- **Fire Shutters**: Also rated for fire resistance, commonly up to 4 hours (EI 240). They are subject to rigorous testing and must comply with standards such as EN 1634-1 and BS 476-22.

#### Smoke and Heat Barrier

- **Fire Curtains**: Provide an effective barrier against both fire and smoke, thanks to their intumescent properties. They can help contain smoke and prevent it from spreading to other areas of the building.

- **Fire Shutters**: Offer robust protection against fire and can also act as a smoke barrier, depending on the design. Some models include smoke seals to enhance their effectiveness.

### Applications and Use Cases

#### Commercial and Industrial Settings

- **Fire Curtains**: Ideal for large open spaces such as shopping malls, atriums, and warehouses where maintaining visibility and aesthetics is important. They can also be used in areas with high foot traffic, such as airports and train stations.

- **Fire Shutters**: Suitable for doorways, windows, and other openings in commercial and industrial settings. They are commonly used in factories, warehouses, and storage facilities to protect critical equipment and inventory.

#### Residential and Public Buildings

- **Fire Curtains**: Useful in residential buildings, particularly in high-rise apartments and hotels, where they can compartmentalize corridors and stairwells. They are also beneficial in public buildings like schools and hospitals, where minimizing disruption is crucial.

- **Fire Shutters**: Commonly used in residential buildings for garage doors and other large openings. In public buildings, they can be installed in exit routes and emergency exits to ensure safe evacuation.

### Maintenance and Inspection

#### Regular Maintenance

- **Fire Curtains**: Require periodic inspection and testing to ensure they are functioning correctly. This includes checking the motorized system, tracks, and fabric for any signs of wear or damage.

- **Fire Shutters**: Also need regular maintenance, including lubrication of moving parts, inspection of the shutter itself, and testing of the deployment mechanism.

#### Compliance and Certification

- **Fire Curtains**: Must be installed and maintained in accordance with local fire codes and regulations. They should be certified by recognized bodies such as UL, FM, or CE.

- **Fire Shutters**: Similarly, must comply with local fire codes and be certified by relevant authorities. Regular inspections and certifications are essential to ensure ongoing compliance.

### Cost Considerations

#### Initial Installation Costs

- **Fire Curtains**: Generally more expensive due to the specialized materials and concealed installation. However, the cost can be justified by their aesthetic benefits and space-saving design.

- **Fire Shutters**: Less expensive in terms of initial installation, but the total cost can increase for larger or more complex installations.

#### Long-Term Costs

- **Fire Curtains**: May have lower long-term maintenance costs due to their concealed nature, which reduces exposure to environmental factors.

- **Fire Shutters**: Can have higher long-term maintenance costs, especially if they are frequently exposed to elements such as dust, moisture, or physical damage.

### Conclusion

Both fire curtains and fire shutters play crucial roles in fire safety, each with its own set of advantages and applications. Fire curtains are ideal for maintaining aesthetics and saving space, while fire shutters offer robust protection and are suitable for a wide range of openings. When choosing between the two, it is essential to consider the specific needs of the building, the required level of fire resistance, and the overall fire safety strategy. Consulting with a fire safety expert can help ensure that the most appropriate solution is selected to protect lives and property effectively.
