What are the benefits of fire curtains?

Unveiling the Unseen Shield: The Multifaceted Benefits of Fire Curtains

In the realm of modern building design and fire safety engineering, the pursuit of solutions that are both effective and aesthetically unobtrusive is constant. Fire curtains, often hidden within ceilings or bulkheads until called upon, represent a sophisticated and increasingly popular component of passive fire protection strategies. These deployable barriers, typically constructed from technologically advanced fire-resistant fabrics, offer a unique blend of safety, design flexibility, and compliance advantages that traditional fire separation methods sometimes struggle to match. Moving beyond simple definitions, understanding the extensive benefits of fire curtains reveals why they have become indispensable tools for architects, engineers, and building owners committed to protecting lives and property.

1. Enhanced Life Safety: The Paramount Benefit

The primary purpose of any fire protection system is safeguarding human life. Fire curtains excel in this critical role through several mechanisms:

Effective Compartmentation: Fire curtains act as dynamic barriers, rapidly deploying to divide large open spaces into smaller, manageable fire compartments upon activation by a fire alarm system. This containment is crucial. It restricts the fire to its area of origin, preventing or significantly slowing its spread horizontally and vertically through a building. By limiting the fire's growth, curtains buy invaluable time for occupants to evacuate safely.

Smoke Control and Management: Smoke inhalation is the leading cause of fire-related deaths. Fire curtains, particularly those designed specifically as smoke barriers (sometimes distinct from fire curtains, but often integrated or used in conjunction), are highly effective at containing and channeling smoke. They prevent smoke from rapidly filling large volumes like atria, shopping malls, or open-plan offices. By maintaining clear escape routes and preventing smoke logging in critical areas like stairwells and corridors, they ensure visibility and reduce the concentration of toxic gases, creating a more tenable environment for escaping occupants and enabling safer access for firefighters.

Protecting Means of Egress: Building codes mandate protected escape routes. Fire curtains can be strategically deployed to shield corridors, lobbies adjacent to stairwells, and exits from the immediate effects of fire and smoke originating in adjacent open areas. This ensures that the designated paths to safety remain usable for a longer duration during an emergency. Instead of needing permanent, potentially obtrusive fire doors or walls separating, for instance, a large atrium from escape corridors, a fire curtain can deploy only when needed, preserving the open feel during normal occupancy.

Preventing Flashover: By containing the heat generated by a fire within a smaller compartment, fire curtains can help delay or prevent flashover – the near-simultaneous ignition of most combustible materials in an enclosed area. Flashover represents a sudden and dramatic escalation of fire intensity, making conditions instantly unsurvivable and significantly hindering firefighting efforts. Compartmentation provided by fire curtains helps manage the fire's energy release.

2. Architectural Freedom and Design Flexibility

One of the most compelling advantages of fire curtains lies in the design possibilities they unlock, particularly relevant in contemporary architecture which often favors openness and light:

Enabling Open-Plan Designs: Modern aesthetics often lean towards large, interconnected spaces – think expansive office floors, multi-story atria in hotels or shopping centres, open lobbies, and airport terminals. Traditional fire separation methods like permanent fire-rated walls or numerous fire doors can fragment these designs, creating visual barriers and interrupting the intended flow. Fire curtains offer a solution: they remain virtually invisible when retracted, typically concealed within ceiling voids or discreet headboxes. This allows architects to achieve their vision of open, fluid spaces without compromising fire safety regulations. The barrier only becomes apparent when activated by a fire event.

Maintaining Sightlines and Aesthetics: Unlike bulky fire shutters or fixed walls, retracted fire curtains do not obstruct views or disrupt interior design schemes. They integrate seamlessly into the building fabric, preserving clean lines and uncluttered appearances. This is particularly valuable in high-end retail environments, museums, galleries, and corporate headquarters where aesthetics are paramount.

Solutions for Complex Geometries: Fire curtains can be engineered to follow curves, accommodate varying ceiling heights, and close off unusually shaped openings where installing traditional fire doors or shutters would be difficult, expensive, or architecturally undesirable. This adaptability makes them suitable for innovative and non-standard building designs.

Preserving Heritage Buildings: In historic or listed buildings, introducing modern fire safety measures without compromising the original character can be challenging. Installing permanent fire walls or doors might be architecturally damaging or prohibited. Fire curtains, with their minimal visual impact when retracted, often provide an acceptable alternative solution, allowing safety upgrades while respecting the building's heritage fabric.

3. Property Protection and Damage Limitation

While life safety is the priority, fire curtains also contribute significantly to protecting the building structure and its contents:

Limiting Fire Spread: By containing the fire to a specific zone, fire curtains directly reduce the amount of the building exposed to flames and extreme heat. This minimizes direct fire damage to the structure, finishes, and valuable contents like equipment, inventory, or irreplaceable items.

Reducing Smoke and Soot Damage: Smoke and soot can travel far beyond the fire's origin, causing extensive contamination and damage that is often costly and difficult to remediate. By effectively containing smoke, fire curtains limit the extent of this secondary damage, protecting assets in adjacent compartments.

Minimizing Water Damage: Sprinkler systems are crucial, but their activation can cause significant water damage. When a fire is effectively contained by fire curtains, it may require fewer sprinkler heads to activate to control or extinguish the blaze. This localization can drastically reduce the overall water damage inflicted on the building and its contents.

Protecting Critical Infrastructure: In facilities like data centres, control rooms, or areas housing sensitive manufacturing equipment, fire curtains can provide an essential layer of protection, isolating critical assets from a fire event elsewhere in the building, thereby supporting business continuity.

4. Compliance with Building Codes and Regulations

Fire curtains are recognized and accepted solutions within major building codes and fire safety standards (like the International Building Code - IBC, NFPA standards in the US, or EN standards in Europe) for specific applications:

Meeting Compartmentation Requirements: Codes mandate the division of buildings into fire compartments to limit fire spread. Fire curtains provide an approved method for achieving this compartmentation, especially across large openings or in situations where permanent walls are impractical.

Protecting Openings: They are frequently specified to protect vertical openings like atria and escalator voids, preventing the rapid vertical spread of fire and smoke between floors. They are also used to protect large horizontal openings in fire-rated walls or floors where fire doors are not feasible or desired.

Alternative Solutions (Performance-Based Design): In complex projects, fire engineers may use performance-based design approaches rather than strictly adhering to prescriptive code requirements. Fire curtains often feature as key components in these engineered solutions, demonstrating through modeling and analysis that they can achieve the required level of safety performance, sometimes offering more practical or cost-effective solutions than prescriptive methods would allow.

Specific Applications: Codes often explicitly permit or even mandate fire curtains for certain applications, such as proscenium openings in theatres (separating the stage from the auditorium) or protecting openings around large industrial conveyors passing through fire walls.

5. Potential Cost-Effectiveness

While the initial cost of a fire curtain system needs careful consideration, they can offer cost advantages in certain contexts:

Compared to Alternatives: In situations requiring fire separation across very large openings or complex geometries, the cost of installing, framing, and finishing extensive fire-rated glazing or constructing complex fire-rated assemblies can exceed the cost of a fire curtain system. Fire curtains can sometimes offer a more economical engineered solution.

Reduced Structural Load: Fire curtains are relatively lightweight compared to masonry walls or extensive fire-rated glass systems. This can lead to savings in the structural design of the building, as less load needs to be supported.

Space Optimization: By eliminating the need for bulky walls or lobbies required solely for fire separation, fire curtains can free up valuable floor space, which can translate to increased rentable or usable area – a significant financial benefit for building owners.

Long-Term Value: When considering the total cost of ownership, the value derived from architectural freedom, enhanced safety, potential reduction in fire damage, and optimized space utilization contributes to the overall cost-effectiveness of fire curtain systems.

6. Operational Reliability and Integration

Modern fire curtain systems are designed for reliable operation when needed most:

Automatic Deployment: Fire curtains are typically integrated with the building's fire alarm system. Upon detection of fire or smoke, they deploy automatically, ensuring rapid response without human intervention.

Fail-Safe Mechanisms: Most high-quality systems incorporate gravity fail-safe deployment (GFS). This means that even if primary power and backup power fail during a fire, the curtain will deploy under its own weight, ensuring the barrier is in place when needed. Control systems often include battery backup for controlled descent even without main power.

System Monitoring: Advanced systems can be monitored through the building management system (BMS) or fire alarm panel, providing status updates (fully retracted, deployed, fault condition), facilitating maintenance and ensuring operational readiness.

Testing and Maintenance: While regular testing and maintenance by qualified personnel are essential (as with any life safety system), the procedures are well-established. Routine tests involve deploying and retracting the curtain to ensure correct operation, checking battery backups, and inspecting the fabric and seals.

Considerations and Types

It's important to note that "fire curtain" is a broad term. Different types exist, designed for specific performance levels:

Fire Integrity Curtains: These are designed to stop the passage of flames and hot gases for a specific period (e.g., 60, 120, 180 minutes). They are rated for 'E' (Integrity).

Fire Insulating Curtains: In addition to integrity, these curtains also limit the temperature rise on the non-fire side for a specific period, protecting occupants from radiant heat and preventing ignition of materials on the safe side. They are rated for 'EI' (Integrity and Insulation). These are often thicker or incorporate insulating layers.

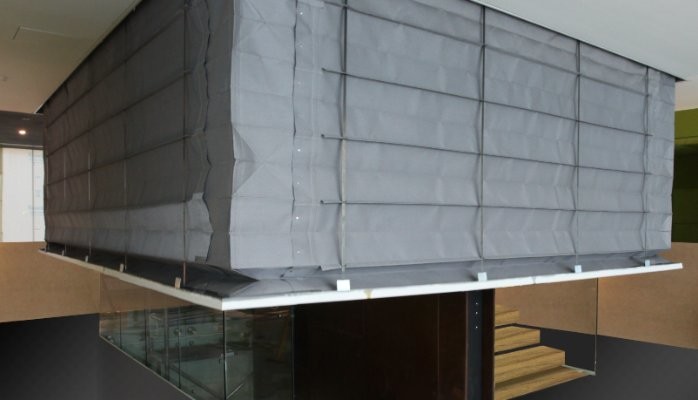

Smoke Barriers: These are specifically designed to limit the passage of cool or hot smoke. Their primary function is smoke containment rather than high-temperature fire resistance, although they usually offer some fire integrity. They often deploy faster and may have tighter seals.

Furthermore, factors like deployment speed, required fire rating (duration), environmental conditions, and the need for occupant egress routes through the curtain (using overlap or 'egress door' functionalities in some specialized curtains) must be carefully considered during specification. Obstructions in the deployment path are a critical concern that must be managed through design and operational procedures.

Conclusion

Fire curtains represent a sophisticated evolution in passive fire protection technology. Their benefits extend far beyond simply stopping fire; they are instrumental in enhancing life safety by controlling fire and smoke, enabling modern architectural expression through design flexibility, protecting valuable property, ensuring regulatory compliance, and offering potentially cost-effective solutions for complex building scenarios. While requiring proper specification, installation, and maintenance, their ability to provide robust, reliable, and often invisible protection makes them an increasingly vital component in the toolkit for creating safer, more functional, and aesthetically pleasing built environments. As building designs continue to push boundaries, the adaptability and effectiveness of fire curtains ensure they will remain a cornerstone of advanced fire safety strategies for years to come.
