What Is The Difference between A Fire Shutter And A Smoke Curtain?

A fire shutter and a smoke curtain are both essential components of a building's fire safety system, designed to prevent the spread of fire and smoke. However, they differ in their construction, functionality, and applications. This detailed comparison outlines the key differences between fire shutters and smoke curtains:

**1. Definition and Purpose:**

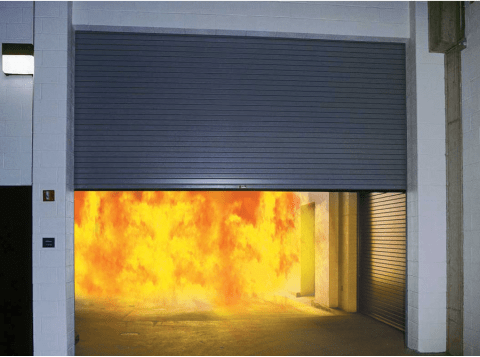

  - **Fire Shutter:** A fire shutter is a fire-resistant barrier, usually made of metal or other non-combustible materials, designed to compartmentalize a building and prevent the spread of fire and smoke from one area to another. Fire shutters are primarily intended to protect property, structural integrity, and to provide safe evacuation routes during a fire.

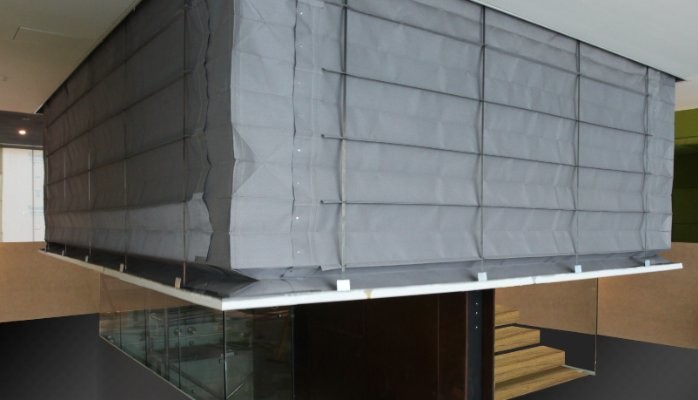

  - **Smoke Curtain:** A smoke curtain, also known as a smoke barrier or smoke seal, is a flexible or rigid barrier made of fire-resistant materials designed to prevent the spread of smoke and toxic gases within a building. Smoke curtains are primarily focused on maintaining visibility, reducing smoke inhalation, and facilitating safe evacuation and firefighting operations by controlling the movement of smoke.

**2. Construction and Materials:**



  - **Fire Shutter:** Fire shutters are typically constructed using materials such as steel, aluminum, or composite materials with fire-resistant insulation. They can be vertical, horizontal, or sectional, and are often motorized for automatic operation. Fire shutters are built to withstand high temperatures and direct exposure to fire for a specified duration, usually rated in terms of fire resistance (e.g., 60 minutes, 90 minutes, or 120 minutes).

  - **Smoke Curtain:** Smoke curtains are made from materials like woven fabric, silicone-coated fabrics, or metalized films that are designed to resist the passage of smoke. They can be fixed or retractable and are often suspended from the ceiling or a structural beam. Smoke curtains are not designed to withstand direct fire exposure but are effective in containing smoke within designated areas.

**3. Operation and Activation:**



  - **Fire Shutter:** Fire shutters are activated by fire detection systems, such as heat sensors or smoke detectors, and can also be controlled manually or through a building's fire alarm system. Once activated, they descend to seal off openings, such as doorways, windows, or atria, to create fire compartments. Some fire shutters are designed to close gradually to allow for evacuation before fully sealing the area.

  - **Smoke Curtain:** Smoke curtains can be activated by smoke detectors, heat sensors, or manual controls. Upon activation, they drop down from the ceiling to create a barrier at the designated height, usually just above head level, to contain smoke and maintain clear visibility. Some smoke curtains are designed to drop in stages to allow for the safe passage of people and equipment.

**4. Application and Installation:**



  - **Fire Shutter:** Fire shutters are commonly installed in large openings, such as atria, large doorways, and industrial openings where fire resistance is crucial. They are often found in commercial buildings, warehouses, shopping malls, and industrial facilities to protect against the spread of fire and to comply with fire safety codes and regulations.

  - **Smoke Curtain:** Smoke curtains are installed in areas where smoke control is necessary, such as stairwells, elevator shafts, atria, and open-plan office spaces. They are also used in buildings with high ceilings or large open spaces where traditional smoke detectors may not be effective in controlling smoke movement.

**5. Performance and Certification:**



  - **Fire Shutter:** Fire shutters are tested and certified to meet specific fire resistance standards, such as those set by national or international building codes (e.g., ASTM E119, BS 476, or EN 1366). They are rated based on their ability to withstand fire for a specified duration and to prevent the spread of fire and smoke.

  - **Smoke Curtain:** Smoke curtains are tested for their effectiveness in containing smoke and are certified based on their ability to resist the passage of smoke and maintain integrity under specific test conditions. They are typically certified to meet smoke control standards and may also be subjected to additional tests for visibility and toxicity.

**6. Aesthetics and Integration:**



  - **Fire Shutter:** Fire shutters can be less aesthetically pleasing due to their robust construction and are often visible in their closed position. However, they can be customized with finishes and designs to blend in with the building's aesthetics. Some fire shutters are designed to be concealed when not in use.

  - **Smoke Curtain:** Smoke curtains can be more aesthetically pleasing, as they are often designed to be retractable and can be concealed when not in use. They can also be customized with colors and patterns to match the building's interior design, making them a less obtrusive fire safety feature.

**7. Maintenance and Inspection:**



  - **Fire Shutter:** Fire shutters require regular maintenance, including lubrication of moving parts, inspection of seals and insulation, and testing of the automatic control system to ensure proper operation. Regular inspections and maintenance are necessary to maintain their fire resistance rating.

  - **Smoke Curtain:** Smoke curtains also require regular maintenance, including inspection of the fabric for damage, testing of the control system, and verification of the drop height and operation. Regular cleaning and maintenance are essential to ensure their effectiveness in containing smoke.

**8. Additional Features:**



  - **Fire Shutter:** Some fire shutters may be equipped with additional features such as thermal insulation to protect against heat radiation, integrated cooling systems, or remote monitoring capabilities for enhanced fire safety and protection.

  - **Smoke Curtain:** Smoke curtains may be designed with features such as transparency to maintain visibility, acoustic insulation to reduce noise transmission, or integration with building management systems for centralized control and monitoring.

**9. Cost and Installation Complexity:**



  - **Fire Shutter:** Fire shutters tend to be more expensive and complex to install due to their robust construction, motorized operation, and requirement for fire resistance. The cost and complexity can vary depending on the size, type, and fire resistance rating of the shutter.

  - **Smoke Curtain:** Smoke curtains are generally less expensive and easier to install compared to fire shutters. The cost and complexity can vary depending on the size, material, and control system requirements.

**10. Interaction with Building Systems:**



  - **Fire Shutter:** Fire shutters need to be integrated with the building's fire alarm system, electrical system, and sometimes with the building's ventilation system to ensure coordinated operation and effective fire protection.

  - **Smoke Curtain:** Smoke curtains also need to be integrated with the building's fire detection and alarm system and may interact with the ventilation system to control smoke movement and maintain smoke-free zones.

In summary, while both fire shutters and smoke curtains play a crucial role in fire safety, they serve different functions. Fire shutters are primarily designed to resist fire and compartmentalize buildings to prevent the spread of fire, while smoke curtains are designed to control the movement of smoke and maintain visibility for safe evacuation and firefighting operations. The choice between a fire shutter and a smoke curtain depends on the specific fire safety requirements of the building and the areas where they are to be installed. Both components are essential in creating a comprehensive fire safety system that ensures the protection of life, property, and the building structure.
