How Smoke And Fire Curtain Systems Work in High-Rise Buildings
Views: 569 Author: Site Editor Publish Time: 2026-03-16 Origin: Site
In modern urban architecture, high-rise buildings present unique fire safety challenges that demand sophisticated passive protection systems. Smoke and fire curtain systems have emerged as critical life-safety technologies that balance architectural openness with robust compartmentation. These intelligent barriers remain concealed during normal operations but deploy instantly during emergencies, creating protective zones that prevent the rapid vertical spread of fire and toxic smoke. Understanding how these systems function in high-rise environments is essential for architects, building managers, and safety professionals navigating complex building codes and life-safety requirements.
The Fundamental Mechanism: From Concealment to Protection
Smoke and fire curtain systems operate on a principle of gravity-fed or motorized deployment triggered by building fire detection systems. In their standby state, these curtains are rolled within compact headboxes installed above ceilings, behind bulkheads, or within wall cavities, completely invisible to building occupants. When activated—either by smoke detectors, heat sensors, fusible links, or direct connection to the building's Fire Alarm Control Panel (FACP)—the curtain rapidly descends to form a continuous barrier.
The deployment mechanism varies by system type. Gravity-operated vertical curtains release their locking mechanisms upon activation, allowing the fire-resistant fabric to descend at a controlled rate of no more than 0.2 meters per second. This controlled descent prevents injury to occupants while ensuring the barrier forms within critical timeframes—typically 30 seconds for curtains up to 6 meters in height, and up to 60 seconds for taller installations. Electrically-operated systems utilize DC24V motors with planetary gearboxes and microprocessor-controlled electronics that regulate closing speed to maximum 0.15 m/s, offering precise deployment and the ability to integrate with complex building management systems.
The curtain fabric itself represents advanced material engineering. Composed of heat-stabilized woven fiberglass with specialized coatings (such as silicone or aluminum treatments), these fabrics withstand temperatures ranging from 1700°F (1-hour rating) to 1920°F (3-hour rating). The material maintains flexibility while providing integrity against flame penetration and, in many configurations, thermal insulation to prevent heat transfer to protected areas.
Vertical Compartmentation: Combating the Chimney Effect
High-rise buildings are particularly vulnerable to the "chimney effect"—the natural tendency of hot smoke and combustion gases to rise rapidly through vertical shafts, atriums, and open connections between floors. This phenomenon can transform a localized fire on a lower floor into a building-wide emergency within minutes, trapping occupants on upper floors and compromising evacuation routes.

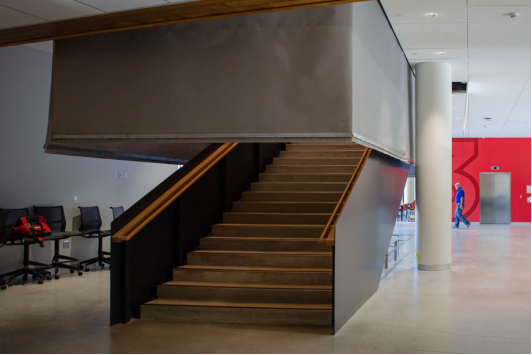

Vertical fire curtains address this challenge by creating temporary fire-resistant walls at critical vertical openings. Installed at elevator lobbies, stairway entrances, atrium perimeters, and floor-to-floor voids, these curtains descend to seal off vertical pathways when triggered. Unlike permanent fire walls that would compromise the open architectural designs favored in modern high-rises, vertical curtains provide on-demand compartmentation that maintains spatial aesthetics during normal operations.
In high-rise atriums—architectural features that extend multiple floors and create dramatic interior spaces—vertical curtains serve dual functions. They act as smoke barriers to contain toxic gases within specific zones, and as fire barriers to prevent flame spread between floors. Research demonstrates that combining smoke curtains with mechanical exhaust systems significantly improves smoke management efficiency, maintaining clear evacuation paths for extended periods.
Horizontal Protection: Floor-to-Floor Isolation
While vertical curtains address upward fire spread, horizontal fire curtains provide critical protection against horizontal fire migration and falling debris between floors. These systems deploy across ceiling openings, atrium tops, or between floor slabs, creating fire-resistant ceilings that seal off vertical shafts.
A compelling case study from Emily Carr University of Art and Design in Vancouver illustrates this technology's life-saving potential. When an arsonist attempted to spread fire by dropping burning debris through an atrium opening, six horizontal steel fire shutters—each over 9 feet wide and 50 feet long—deployed automatically at each floor level. These 2-hour rated shutters stopped the burning debris completely, limiting damage to the floor of origin and preventing the catastrophic vertical fire spread that could have compromised the entire high-rise structure.
Horizontal systems are particularly valuable in buildings with complex vertical geometries, such as those containing escalator voids, multi-floor lobbies, or mechanical shafts. They can be configured as concertina (accordion-style) curtains for irregular openings or as rigid steel shutters where enhanced impact resistance is required.
Integration with Engineered Smoke Control Systems
In sophisticated high-rise applications, smoke and fire curtains function as integral components of engineered smoke control systems rather than standalone devices. These comprehensive systems combine curtains with mechanical smoke exhaust, make-up air supply, and pressurization strategies to create tenable environments during evacuation.
Smoke curtains—distinct from fire-rated curtains—are specifically designed to restrict smoke passage while allowing some temperature differential. Installed at smoke zone boundaries, they work with exhaust fans to maintain smoke layers above head height, ensuring evacuation routes remain passable. In atrium designs, smoke curtains enable reduced mechanical exhaust volumes—one case study demonstrated how strategic curtain placement reduced required exhaust from 350,000 CFM to 100,000 CFM while maintaining equivalent safety levels.
The integration requires precise engineering coordination. Curtain deployment must synchronize with HVAC system modulation, exhaust fan activation, and potentially elevator recall systems. Modern intelligent control systems facilitate this integration, with centralized controllers capable of managing multiple curtains simultaneously and providing status feedback to building operators.
Activation Protocols and Safety Standards
The operation of smoke and fire curtain systems in high-rise buildings is governed by stringent codes that vary by jurisdiction but share common safety principles. Singapore's Fire Code 2023 and Malaysia's Uniform Building By-Laws 1984 exemplify modern regulatory frameworks, specifying activation modes based on installation location:
Building separation applications: Must activate via fire alarm systems from either connected building; fusible-link-only activation is prohibited
Compartment walls/floors: Gravity systems may use fusible links; electric systems require smoke detector activation
Atrium/void compartmentation: Only electrically-operated shutters permitted, activated by dedicated smoke detectors in respective smoke zones
Critical safety features include emergency power backup systems ensuring curtain closure during mains power failure, automatic reset functions that restore curtains after alarm cessation, and self-testing capabilities that verify operational readiness. Speed limitations (maximum 0.2 m/s descent) prevent curtain deployment from injuring occupants who may be passing through openings during evacuation.
Material Specifications and Performance Ratings
High-rise applications demand curtains meeting rigorous fire resistance ratings. Integrity (E) ratings demonstrate the curtain's ability to prevent flame and hot gas passage, while Insulation (I) ratings confirm temperature limitations on the non-fire side. For compartment walls and floors, curtains must match the fire resistance duration of the structure they protect—typically 1 to 3 hours depending on building height and occupancy type.
Curtain fabrics undergo comprehensive testing including 500-cycle durability testing, high-temperature motor performance verification, and smoke permeability assessment. Side guides with integrated seals ensure smoke-tight interfaces with building structure, while bottom bars create floor seals upon deployment.
Maintenance and Compliance Requirements
For high-rise building managers, maintaining curtain system functionality is a legal obligation under fire safety orders. Monthly operational testing, annual professional inspections, and immediate repair of any defects are standard requirements. Post-2025, China's updated GB 14102-2024 standards and international equivalents mandate enhanced documentation and traceability for all fire curtain components.
Conclusion
Smoke and fire curtain systems represent the convergence of architectural flexibility and life-safety engineering in high-rise buildings. By providing on-demand compartmentation that activates only when needed, these systems enable the open, connected spaces modern architecture demands while ensuring robust protection against fire's rapid vertical spread. As building codes evolve and smart building technologies advance, these systems continue to integrate more seamlessly with comprehensive fire safety strategies, making high-rise living and working environments safer than ever before.
