Gravity Fail-Safe Mechanism in Smoke and Fire Curtains

Introduction

Modern buildings require advanced fire and smoke protection systems to ensure occupant safety and comply with fire regulations. Among these systems, smoke curtains and fire curtains play a critical role in controlling the spread of smoke and flames during an emergency.

One of the most important safety features in these systems is the Gravity Fail-Safe Mechanism. This technology ensures that the curtain automatically deploys even if the building loses electrical power during a fire.

In this article, we will explain how the gravity fail-safe mechanism works, why it is essential for smoke and fire curtains, and how it enhances overall building safety.

What Is a Gravity Fail-Safe Mechanism?

A gravity fail-safe mechanism is a safety design that uses the curtain's own weight and gravity to deploy the curtain when electrical power is lost.

Under normal operating conditions, the curtain remains retracted within its headbox and is held in position by a motorized control system. When a fire alarm signal is received—or when power is interrupted—the motor releases control, allowing the curtain to descend safely under gravity.

Unlike systems that rely entirely on powered operation, a gravity fail-safe design ensures that the curtain can still function during one of the most critical moments of a fire emergency.

This principle is widely used in smoke curtain systems and fire curtain systems around the world because of its reliability and simplicity.

Why Is Gravity Fail-Safe Important?

During a fire, power failures are common. Electrical cables may be damaged, backup systems may fail, or the building's power supply may be intentionally shut down by emergency personnel.

If a smoke curtain or fire curtain depended solely on electrical power to deploy, the system could become ineffective when it is needed most.

A gravity fail-safe mechanism provides several important advantages:

Enhanced Safety

The curtain will automatically descend even during a total power outage.

Reliable Emergency Operation

The system remains functional regardless of electrical supply conditions.

Regulatory Compliance

Many fire safety standards require fail-safe operation to ensure reliable performance during emergencies.

Reduced Risk of System Failure

Gravity-based deployment minimizes reliance on complex electrical components during critical situations.

How Does a Gravity Fail-Safe Smoke Curtain Work?

The operation of a gravity fail-safe smoke curtain can be divided into several stages.

1. Normal Standby Mode

Under normal building conditions:

• The curtain is rolled or folded inside the headbox.

• The motor keeps the curtain in the fully retracted position.

• The control panel continuously monitors fire alarm signals and system status.

The curtain remains invisible, preserving the building's architectural appearance.

2. Fire Detection

When smoke detectors or the fire alarm system detect an emergency:

• A signal is sent to the smoke curtain controller.

• The controller activates the emergency deployment sequence.

• The motor brake is released.

3. Gravity Deployment

Once the brake is released:

• Gravity pulls the curtain downward.

• The curtain descends at a controlled speed.

• Side guides ensure stable movement.

• The curtain reaches its designated operational position.

This process creates a smoke barrier that helps contain smoke within a specific area.

4. Smoke Containment

After deployment:

• The curtain channels smoke toward extraction systems.

• Escape routes remain clearer for occupants.

• Firefighters gain improved visibility during rescue operations.

How Does a Gravity Fail-Safe Fire Curtain Work?

Fire curtains use a similar principle but are designed to provide fire compartmentation as well as smoke control.

When activated:

• The curtain descends automatically.

• Fire-resistant fabric forms a barrier.

• Open spaces such as atriums, escalators, and large openings are protected.

• The spread of flames and hot gases is delayed.

Depending on the design, fire curtains may provide fire resistance ratings ranging from 60 minutes to several hours.

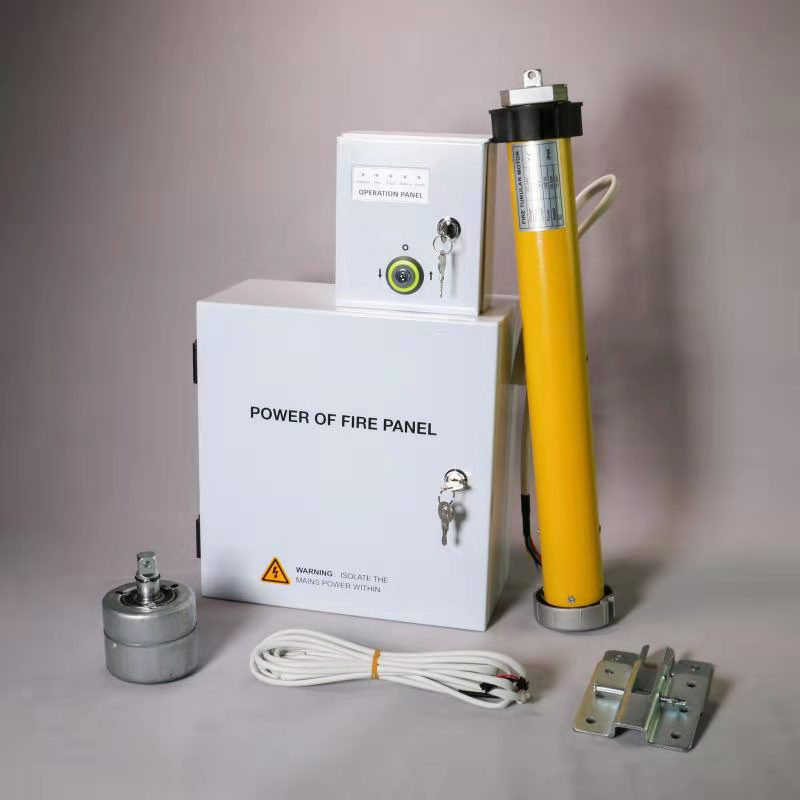

Key Components of a Gravity Fail-Safe Curtain System

Curtain Assembly

The curtain fabric is specially designed for smoke containment or fire resistance.

Drive Motor

The motor maintains the curtain in its retracted position during normal operation.

Brake System

An electromagnetic brake holds the curtain securely and releases automatically during emergencies.

Control Panel

The controller receives signals from fire alarm systems and manages deployment procedures.

Side Guides

Guide rails ensure smooth and accurate curtain movement.

Bottom Bar

The weighted bottom bar helps the curtain descend evenly under gravity.

Benefits of Gravity Fail-Safe Technology

Dependable Performance

Gravity is always available and does not rely on external power sources.

Faster Emergency Response

The curtain deploys immediately when triggered.

Lower Maintenance Complexity

The system requires fewer emergency backup mechanisms compared with fully powered deployment systems.

Improved Building Protection

Smoke and fire are contained more effectively, reducing damage and enhancing life safety.

Long-Term Reliability

Gravity fail-safe systems have proven performance in commercial buildings, airports, shopping malls, hotels, hospitals, and industrial facilities.

Applications of Gravity Fail-Safe Smoke and Fire Curtains

Shopping Malls

Large open spaces require effective smoke compartmentation.

Airports

Smoke curtains help maintain safe evacuation routes.

Hotels

Fire curtains protect lobby openings and public areas.

Hospitals

Reliable compartmentation is critical for patient safety.

Office Buildings

Atriums and open-plan areas benefit from automatic smoke control systems.

Industrial Facilities

Fire curtains help isolate hazardous zones and reduce fire spread.

Integration with Fire Alarm Systems

Modern gravity fail-safe curtain systems are typically integrated with the building's fire alarm network.

When detectors identify smoke or fire:

1. Fire alarm activates.

2. Signal is sent to the curtain controller.

3. Motor brake releases.

4. Curtain descends automatically.

5. Smoke control strategy is implemented.

This integration creates a coordinated fire protection system that improves emergency response effectiveness.

Compliance with International Standards

Gravity fail-safe smoke and fire curtains are commonly designed to meet international standards such as:

• EN 12101-1 for Smoke Barriers

• BS 8524 for Active Fire Curtain Barrier Assemblies

• EN 1634 Fire Resistance Testing

• UL Fire Protection Standards

• Local Building and Fire Codes

Compliance ensures that the curtain system performs as intended during emergency conditions.

Future Trends in Curtain Safety Systems

As building technologies evolve, gravity fail-safe curtain systems are becoming increasingly intelligent.

New developments include:

• Wireless control systems

• Absolute encoder limit technology

• Remote monitoring platforms

• Smart building integration

• Advanced fault diagnostics

These innovations improve system reliability while maintaining the essential fail-safe protection provided by gravity deployment.

Conclusion

The gravity fail-safe mechanism is one of the most important safety features in modern smoke curtain and fire curtain systems. By using gravity as a reliable deployment force, these systems ensure operation even during power failures and emergency conditions.

Whether installed in shopping malls, airports, hospitals, hotels, or industrial facilities, gravity fail-safe curtains provide dependable smoke control and fire compartmentation when it matters most.

For building owners, architects, fire engineers, and contractors, selecting a curtain system with a proven gravity fail-safe mechanism is a critical step toward achieving higher levels of fire safety, regulatory compliance, and occupant protection.
