What is a fire curtain system?

### Introduction to Fire Curtain Systems

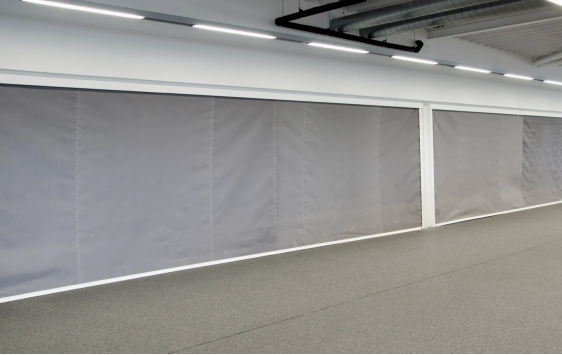

A fire curtain system is a type of passive fire protection measure designed to contain fires within specific areas or compartments in a building. Unlike active fire protection systems, such as sprinklers which actively extinguish fires, fire curtains are intended to prevent the spread of fire and smoke by creating barriers. They play an essential role in maintaining compartmentalization, which can help to save lives and protect property during a fire event.

### Components of a Fire Curtain System

Fire curtain systems typically consist of several key components:

1. **Curtain Fabric**: The curtain itself is made from a specialized fabric that is both fire-resistant and flexible. This material can withstand high temperatures and does not contribute to the spread of fire. Common materials include intumescent coatings on steel backings or woven glass fibers with stainless steel wire for reinforcement.

2. **Rolling Mechanism**: The curtain is usually stored in a roll above doorways, openings, or other locations where it may be deployed. A motorized or gravity-based mechanism allows for rapid deployment of the curtain when activated.

3. **Guide Channels**: These channels ensure the curtain drops straight down without obstruction and remains in place once deployed. Guide channels are often lined with heat-activated seals that expand when exposed to heat, improving the seal between the curtain and the channel.

4. **Control System**: The control system includes sensors, wiring, and actuators necessary to deploy the curtain automatically upon detection of a fire or receipt of a signal from a building's fire alarm system. It may also include manual release mechanisms.

5. **Ceiling Box/Housing**: The housing protects the rolled-up curtain and its operating mechanism when not in use. It must be robust enough to support the weight of the curtain and provide protection against accidental damage.

6. **Testing and Maintenance Equipment**: Regular testing and maintenance are critical to ensure the system operates correctly when needed. Special equipment and procedures are used to test the deployment, retraction, and overall functionality of the curtain.

### Operation and Activation

Fire curtains can be activated in several ways:

- **Automatic Activation**: Most fire curtains are connected to a building’s fire alarm system or heat detectors. When these devices detect a fire, they send a signal to the fire curtain control panel, triggering automatic deployment.



- **Manual Activation**: In some cases, fire curtains can be manually activated using pull stations located near the curtain. This might be useful if there is a need to close off an area preemptively or if the automatic activation system fails.

- **Fail-Safe Mechanisms**: Some fire curtains have fail-safe mechanisms that will cause them to deploy if power to the building is lost, ensuring they function even under adverse conditions.

### Applications and Benefits

Fire curtain systems offer numerous benefits and can be applied in various scenarios:

- **Escape Routes Protection**: By closing off corridors and stairwells, fire curtains can protect escape routes from smoke and flames, giving occupants more time to evacuate safely.

- **Property Protection**: Curtains can limit the extent of fire damage by preventing the fire from spreading beyond its origin point.

- **Flexibility in Building Design**: Fire curtains allow for more open floor plans while still complying with fire safety regulations, which can be advantageous for architects and interior designers.

- **Cost-Effective Solutions**: Installing fire curtains can be less expensive than constructing solid walls or doors, especially in retrofit applications where existing structures cannot easily accommodate new permanent barriers.

- **Enhanced Safety**: By reducing the risk of fire spreading, fire curtains can significantly enhance occupant safety and improve overall fire safety measures.

### Compliance and Regulations

The design, installation, and operation of fire curtain systems must comply with local and national building codes and standards. For example, in many jurisdictions, fire curtains must meet stringent testing requirements established by organizations like Underwriters Laboratories (UL) in the United States or the British Standards Institution (BSI) in the UK. Manufacturers must provide certification that their products meet these standards, and installers must ensure proper placement and functioning of the systems.

### Conclusion

In summary, fire curtain systems represent a crucial component of modern fire safety strategies. They offer effective containment of fires, thereby protecting lives and property. As technology advances, we can expect to see improvements in the materials, design, and operational efficiency of these systems, contributing to enhanced fire safety in buildings worldwide.
