The specification of Anlin smoke curtain

Views: 1     Author: Site Editor     Publish Time: 2022-10-28      Origin: Site

Anlin Smoke curtain composed of double-sided silicone coated with steel wire inside fiberglass fabric curtain ,motor, power box, control box, group control box, wireless remote control system.We adopts the latest absolute value, electronic limit technology, no need to reset the limit when power off.

Anlin have obtained the certification of Intertek's Warnock Hersey (WH) mark (construction product safety and performance mark recognized in North America and Europe),

also passed ISO: 9001, ISO: 14001 and ISO: 45001 management system certification.

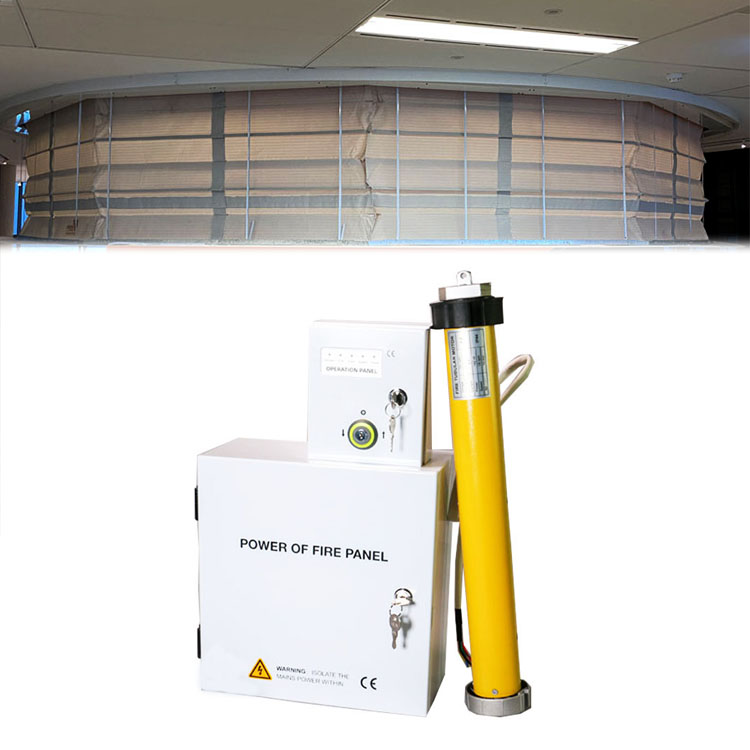

automatic smoke blocking curtain

I. Tech-data

State power: 220-240V/50Hz

Motor voltage: DC 24V

Motor diameter: 59mm

Adaptive external barrel: any tube of 82.5mm inner diameter

Current: 8A

Input power: 192W

Output power: 58W

Torque: 30N.m

Lift 15kg - 70kg with 80mm barrel

Speed: 18rpm

Level of protection: IP44

Continuous running time S2: 10min

Standby time of batteries back-up while suspending curtain: 2 hours

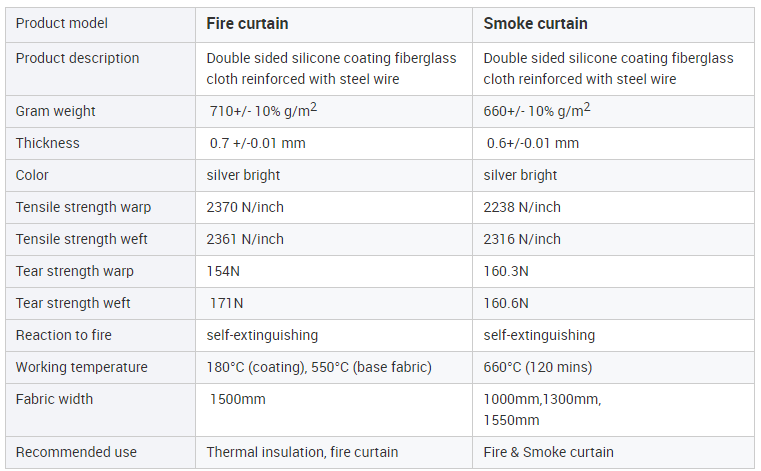

  Specification of curtain
smoke curtain specification
