Newest Absolute Value Electronic Limit Technology Fireproof Smoke Curtain
FIRE & SMOKE CURTAIN APPLICATIONS
The fire & smoke curtain Anlin designs and manufactures adopt the latest absolute value electronic limit technology, no need to reset the limit when power off.

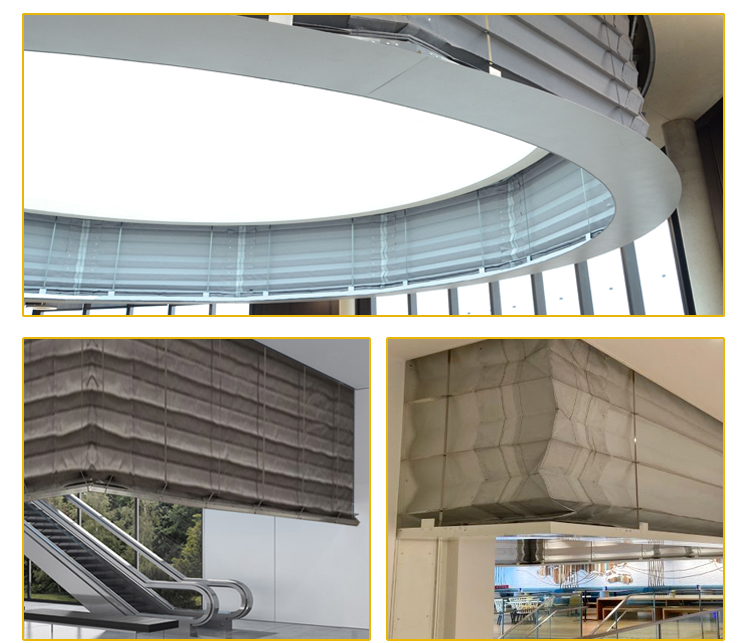

The smoke curtain can be applied in escape route, elevator door, elevator lobby, escalators and stairs, Atrium Chimney ,etc.. We can customized smoke curtain according to your specific application scenarios.
| ||Fire Curtain ||Smoke Curtain |
|Product Model ||AL-2036 ||AL-ZDDJ |
|Product description ||Double sided silicone coated fiberglass cloth reinforced with steel wire ||Double sided silicone coated fiberglass cloth reinforced with steel wire |
|Gram weight ||710+/-10%g/m2 ||660+/-10%g/m2 |
|Thickness || |
0.7 +/-0.01 mm
|0.60 +/-0.01 mm |
| || || |
|Color ||Silver bright ||silver bright |
|Tensile Strength Warp ||2370N/inch ||2238N/inch |
|Tensile Strength Weft ||2361N/inch ||2316N/inch |
|Tear Strength Warp ||154N ||160.3N |
|Tear Strength Weft ||171N ||160.6N |
|Reaction To Fire ||Self-extinguishing ||Self-extinguishing |
|Working temperature || |
550°C (base fabric)
|600°C /120min |
|Fabric Width ||1500mm ||1000mm,1300mm,1550mm |
|Recommended Use ||Thermal insulation, Fire curtain ||Fire& Smoke curtain |
Not Just Quality

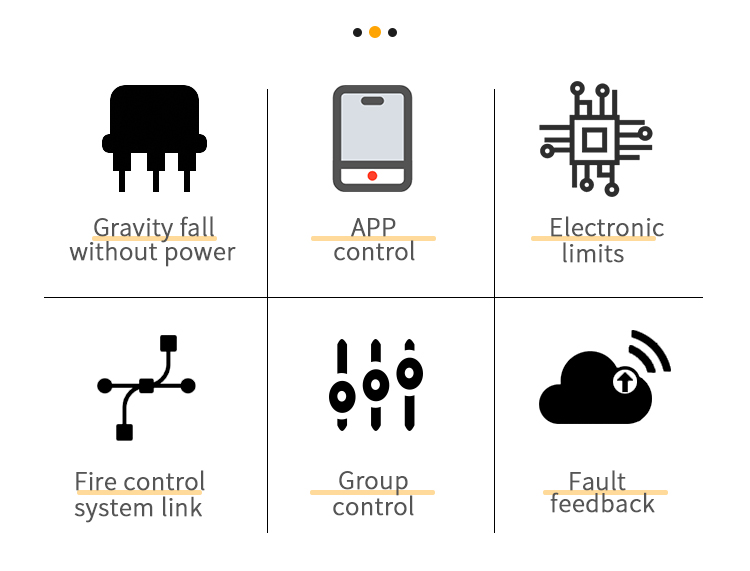

More Optional Functions
Integrate Multiple Technologies
Option 1: 1 control 1set Option 2:1control 4, 1control 8, 1control 12sets.

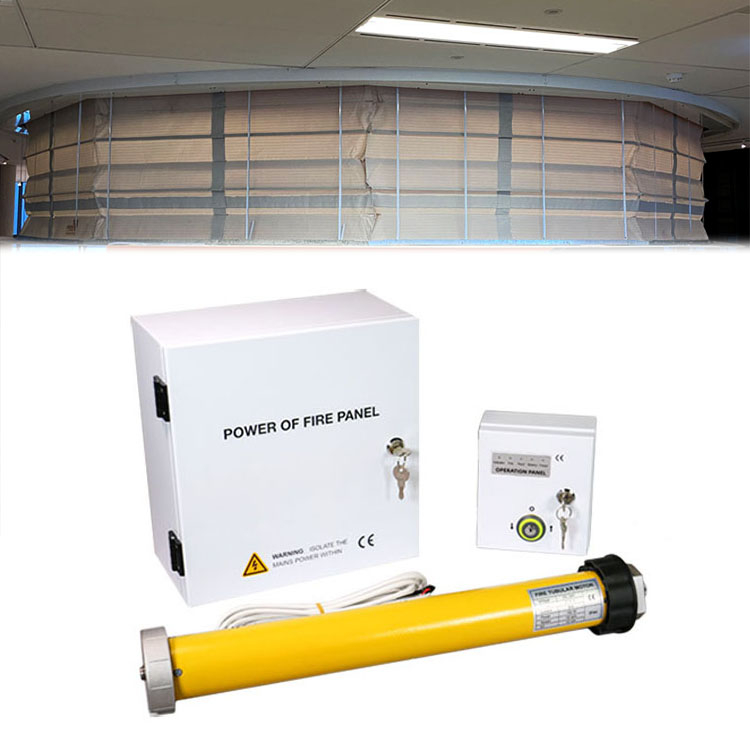

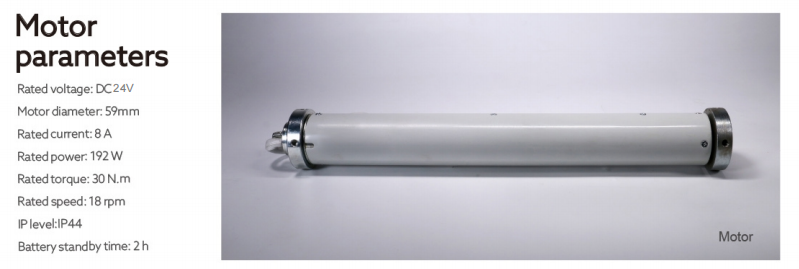

Inclusions:Motor,Controller,operation lock box Inclusions: Motor , Group controller , Sub-controller,
operation lock box
| | ANLIN is the only company who is listed in Intertek directory of building products
in accordance with the standard BS EN12101-1:2005+A1
Intertek has conducted an evaluation for FUJIAN ANLIN INTELLIGENT SCIENCE AND TECHNOLOGY CO.,LTD to determine the performance of Reliability and durability, Default operation to fire position, Response time, Permeability to smoke and Temperature/time resistance of the Automatic smoke curtain.
Fujian Anlin Intelligent Technology Co., Ltd. (formerly Zhangzhou Kylin Electronics Co., Ltd.), is a national high-tech enterprise in Fujian province, which integrates R&D, production, sales and service of intelligent electric windows and doors. Our main products are Rolling door motor, anti-fire rolling door motor, Smoke curtains etc.. We provide customization serverce, welcome to contact with us if any interesting.
