QL-300-1P
Anlin
We produce smoke & fire curtains, residential rolling door motors,bank security rolling door motors, fire shuttor motors ,tubular motors and Australian type motors ,welcome to browse the products you are interested in.

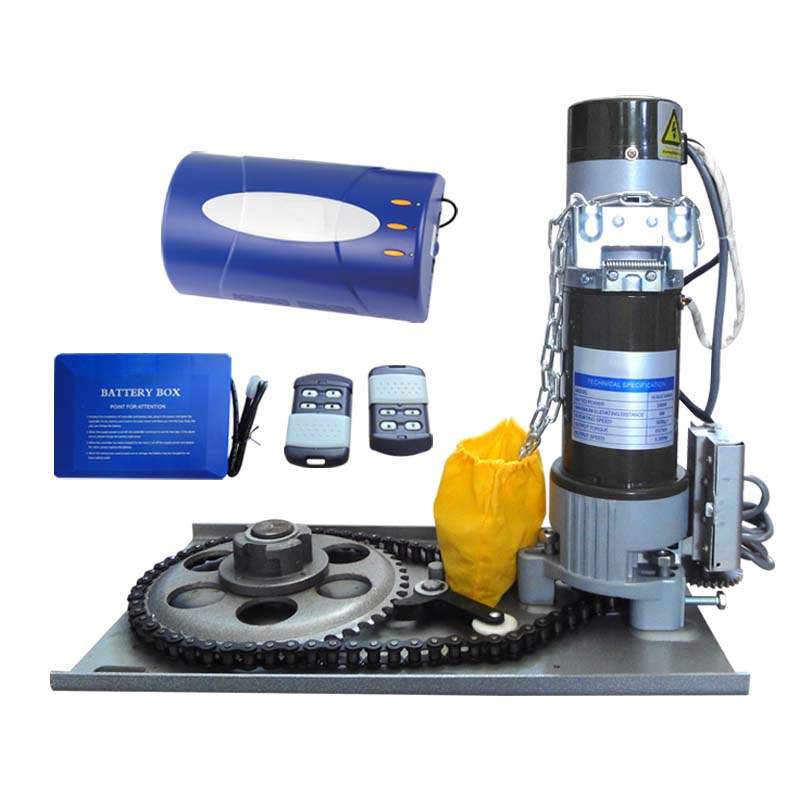

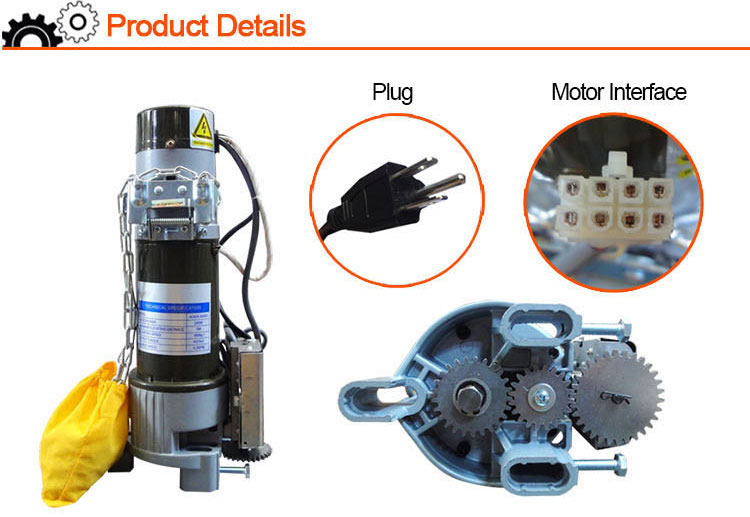

Mechanical Limit Automatic Sliding Garage Gate Rolling Door Shutter Motor for Rolling Door Remote Opener

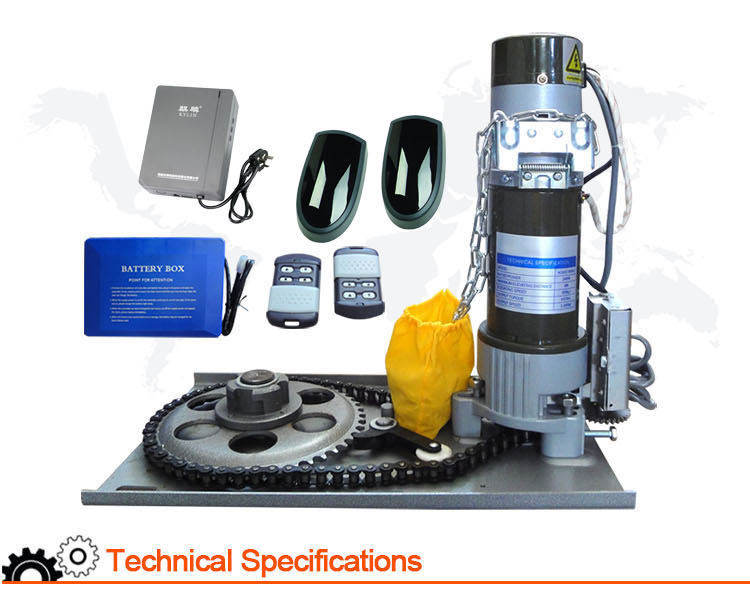

Specifications
| Technical Specifications | |||||||||
| Model | Rated Voltage | Rated Frequency | Rated Power (W) | Rated Current (A) | Lifting Force (kg.f) | Output Torque (N.m) | Rated Output Speed (r/min) | Max Lifting Height (m) | Continued Working Time (min) |
| QL-200-1P(200kg) | 220V/110V | 50Hz | 180 | 2.8 | 200 | 84 | 5 | 4 | 7 |
| QL-300-1P(300kg) | 220V/110V | 50Hz | 250 | 1.9 | 300 | 168 | 5.4 | 6 | 7 |
| QL-400-1P(400kg) | 220V/110V | 50Hz | 300 | 3.2 | 400 | 225 | 5.4 | 6 | 7 |
| QL-500-1P(500kg) | 220V/110V | 50Hz | 370 | 3.3 | 500 | 343 | 5.7 | 6 | 7 |
| QL-600-1P(600kg) | 220V/110V | 50Hz | 370 | 3.3 | 600 | 412 | 5.3 | 6 | 7 |
| QL-700-1P(700kg) | 220V/110V | 50Hz | 370 | 3.9 | 700 | 509 | 5.3 | 6 | 7 |
