Intertek Certificated Silicon Coated Fiberglass Cloth Smoke Guard Elevator Curtain Smoke Barriers

ANLIN fire & smoke curtain system adopts the latest absolute value, electronic limit technology, no need to reset the limit when power off.
We have obtained the certification of Intertek's Warnock Hersey (WH) mark (construction product safety and performance mark recognized in North America and Europe),
also passed ISO: 9001, ISO: 14001 and ISO: 45001 management system certification.
Availability:
Quantity:
sharethis sharing button
  • AL-ZDDJ

  • ANLIN

  Intertek Certificated Silicon Coated Fiberglass Cloth Smoke Guard Elevator Curtain Smoke Barriers


                                            Smoke Curtain
Product Model AL-ZDDJ
Product Description Double sized silicon coated fiberglass cloth reinforced with steel wire
Gram Weight

660 +/- 10% g/m2

Thickness

0.60 +/-0.01 mm

Color Silver Bright
Tensil Strength Wrap 2238N/inch
Tensil Strength Weft 2316N/inch
Tear Strength Wrap 160.3N
Tear Strength Weft 160.6N
Reaction To Fire Self-extinguishing
Working Temperature

600°C/120mins

Fabric Width 1000mm,1300mm,1550mm
Recommended Use Fire& Smoke curtain


elevator fire curtain

Passive fire protection

FIRE & SMOKE CURTAIN APPLICATIONS
We can customize the fire curtains and smoke curtains according to your actual needs for elevator, escape route, escalators and stairs,and atrlum patio,etc.

smoke control fire curtainsautomatic fire curtain


fire curtain

Option 1: 1 control 1 set                                                              Option 2: 1 control 4, 1 control 8, 1 control 12 set

Inclusions:Motor,Controller,operation lock box                            Inclusions:Motor,Group controller, Sub-controller,                                                                                                                                                     operation lock box

rolling smoke curtain

smoke curtain tubular

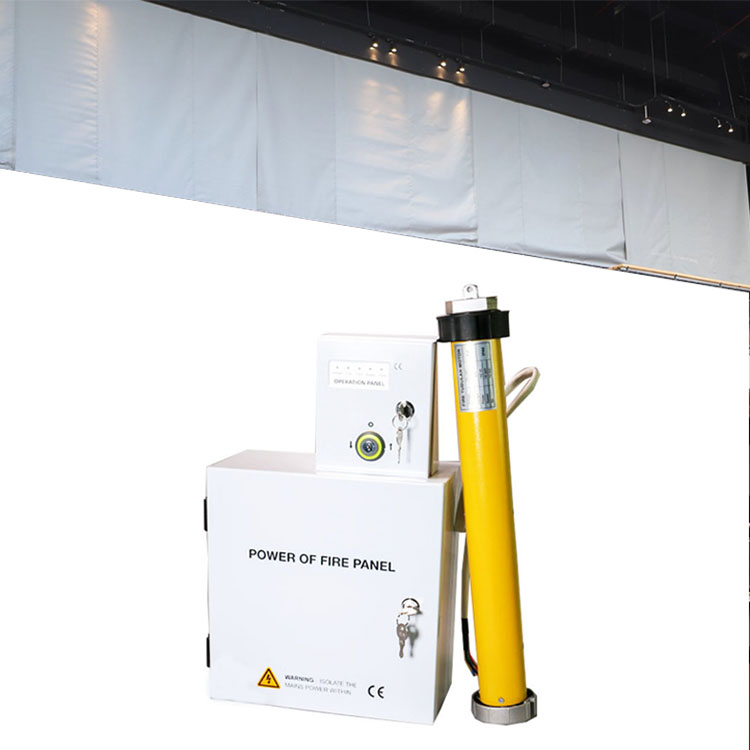

ANLIN fire & smoke curtain system is composed of two parts: drive and control.

The drive part is mainly composed of motor,roller, idler and fire fabric.
The control part is composed of group control center, motor controller and operation panel.

fire proof curtain

Smoke Curtains

chuban0928_14

non combustible curtains

Certification
ANLIN is the only company who is listed in Intertek directory of building products
in accordance with the standard BS EN12101-1:2005+A1
Intertek has conducted an evaluation for FUJIAN ANLIN INTELLIGENT SCIENCE AND TECHNOLOGY CO.,LTD to determine the performance of Reliability and durability, Default operation to fire position, Response time, Permeability to smoke and Temperature/time resistance of the Automatic smoke curtain.

Intertek fire curtain

We produce smoke & fire curtains, residential rolling door motors,bank security rolling door motors, fire shuttor motors ,tubular motors and Australian type motors ,welcome to browse the products you are interested in.

chuban0928_16
