AL-ZDDJ
ANLIN
High Temperature Resistant Fire Proof Smoke Curain Double Sided Silicone Fiberglass Smoke Barrier
Anlin smoke curtain make up of fiberglass fabric indide stainless steel wire, with double-sided silicone coating material.
Smoke curtain can be applied in escape route, elevator door, elevator lobby, escalators and stairs, Atrium Chimney ,etc..
We can customized smoke curtain according to your specific application scenarios.
Option 1: 1 control 1 set Option 2: 1 control 4, 1 control 8, 1 control 12 set

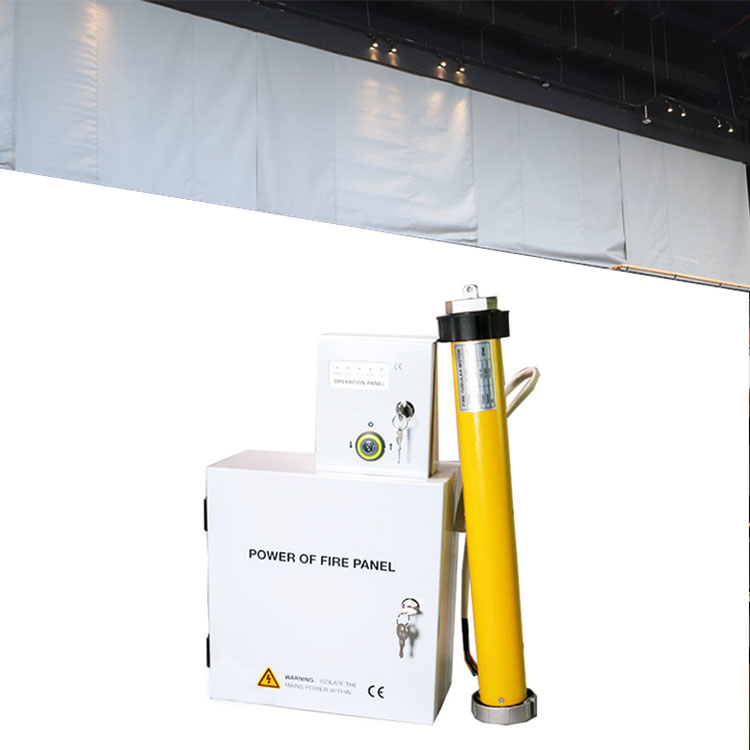

ANLIN fire & smoke curtain system is composed of two parts: drive and control.
System Data | |
Input Voltage | 220V/50Hz |
Motor Rated Voltage | DC24V |
Motor Rated Current | 8A |
Input Power | 192W |
Output Power | 58W |
Torque | 30N.m |
Lifting weight | 15-70kg with 80mm barrel |
Speed | 18rpm |
Level of Protection | IP44 |
Continuous Running time S2 | 10min |
Standby time of batteries back-up when suspending curtain | 24h (7Ah) |
Descending speed by gra | between 0.06m/s and 0.15m/s |
Motor Parameters | |
Rated Voltage | DC24V |
Motor Diameter | 59mm |
Rated Current | 8A |
Rated Power | 192W |
Rated Torque | 30N.m |
Rated Speed | 18rpm |
IP Level | IP44 |
Battery standby time | 2h |
Control Center Parameters | |
Rated Voltage | AC220V-240V 50Hz |
Output Voltage | DC24V |
3 Models: 1 can control 4,8,12 motors respectively | |
Self-testing function: control the curtain to descend until the lower limit, then rise to the upper limit. | |
Automatic reset function: After the fire alarm disappears, the curtain automatically rises to the upper limit. | |
Automatic descending function without mains power: when there is no mains power, the curtain automatically descends to the lower limit |
Certification |
ANLIN is the only company who is listed in Intertek directory of building products in accordance with the standard BS EN12101-1:2005+A1 Intertek has conducted an evaluation for FUJIAN ANLIN INTELLIGENT SCIENCE AND TECHNOLOGY CO.,LTD to determine the performance of Reliability and durability, Default operation to fire position, Response time, Permeability to smoke and Temperature/time resistance of the Automatic smoke curtain. |
Fujian Anlin Intelligent Technology Co., Ltd. (formerly Zhangzhou Kylin Electronics Co., Ltd.), is a national high-tech enterprise in Fujian province, which integrates R&D, production, sales and service of intelligent electric windows and doors. Our main products are Rolling door motor, anti-fire rolling door motor, Smoke curtains etc.. We provide customization serverce, welcome to contact with us if any interesting.
