Explosion Proof Rolling Shutter Motors Nameplate Suppliers

1, handsome in appearance, compact structure, strong horsepower
2, low noise, low vibration, low power consumption, long life
3, light weight, small size, easy installation and reliable
4, can be equipped with reserve power supply unit, power outages still work properly
5, when the power can also be manually operated to achieve the opening and closing the door
Availability:
Quantity:
  • 1000-3P
  • Anlin
  • 1000kg
  • 1000kg

We produce smoke & fire curtains, residential rolling door motors,bank security rolling door motors, fire shuttor motors ,tubular motors and Australian type motors ,welcome to browse the products you are interested in.

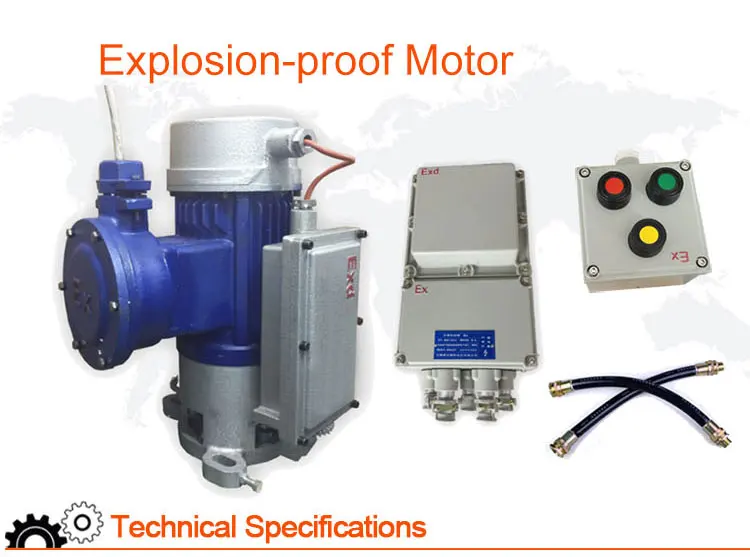

Explosion Proof Rolling Shutter Motors Nameplate Suppliers()_01.jpg

Models 600-3P 800-3P 1000-3P 1500-3P
Rated Voltage 380V 380V 380V 380V
Rated Power 550W 750W 750W 750W
Rated Current  1.4A 1.8A 1.8A 2.5A
Output Torque 420N.m 650N.m 820N.m 1650N.m
Roller Tube Diameter 154mm 165mm 165mm 219mm
Output Speed  3.9r/min 3.9r/min 3.9r/min 3r/min
Max Elevating Power 600kg 800kg 1000kg 1500kg
Max Elevating 8m 8m 8m 8m
Constant Working Time 30min 30min 30min 30min
Chain Type 10A 10A 12A 16A


1, handsome in appearance, compact structure, strong horsepower
2, low noise, low vibration, low power consumption, long life
3, light weight, small size, easy installation and reliable
4, can be equipped with reserve power supply unit, power outages still work properly

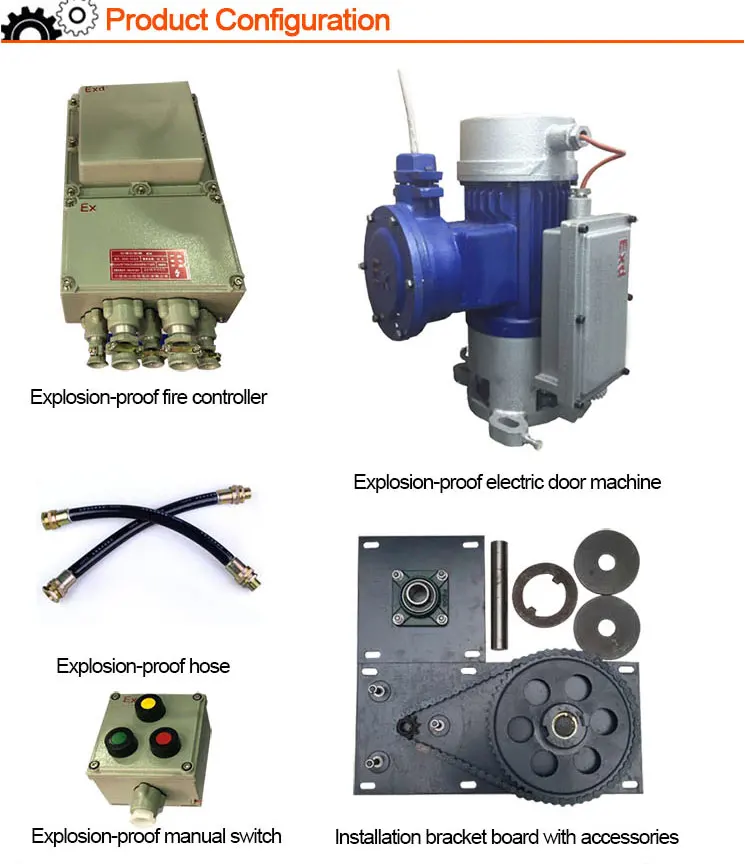

5, when the power can also be manually operated to achieve the opening and closing the door()_06.jpgDoor control system by explosion-proof electric door machine installation bracket board with accessories, explosion-proof fire controller, explosion-proof manual switch, explosion-proof hose



()-1_06
