| Quantity: | |
|---|---|
800-3P
ANLIN
800kg
800kg
We produce smoke & fire curtains, residential rolling door motors,bank security rolling door motors, fire shuttor motors ,tubular motors and Australian type motors ,welcome to browse the products you are interested in.
Anlin changes the traditional shutter door motor and leads the whole industry. We invite you to join the "blue ocean plan" for win-win development.

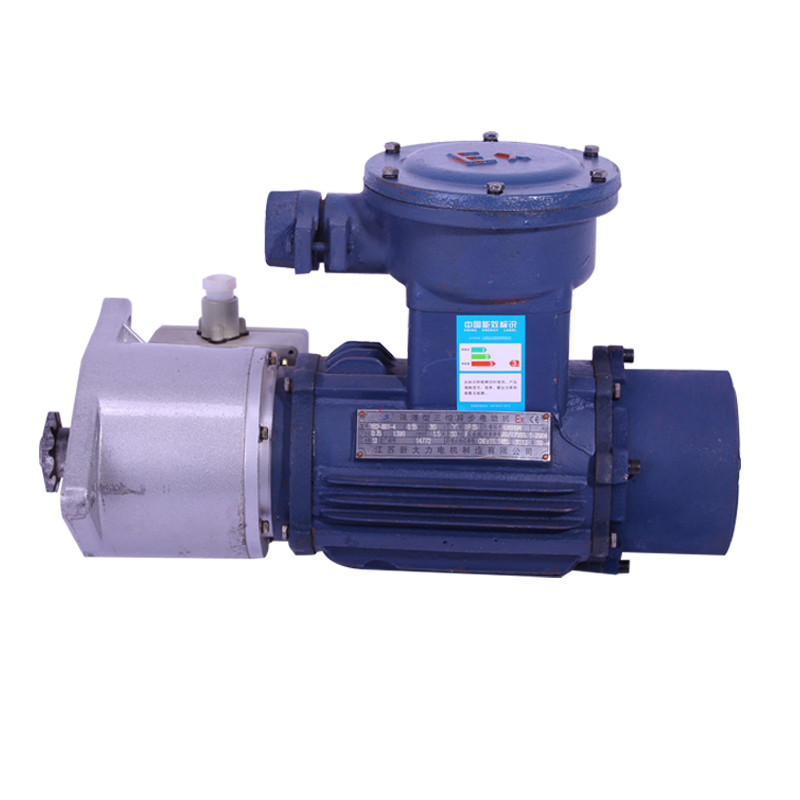

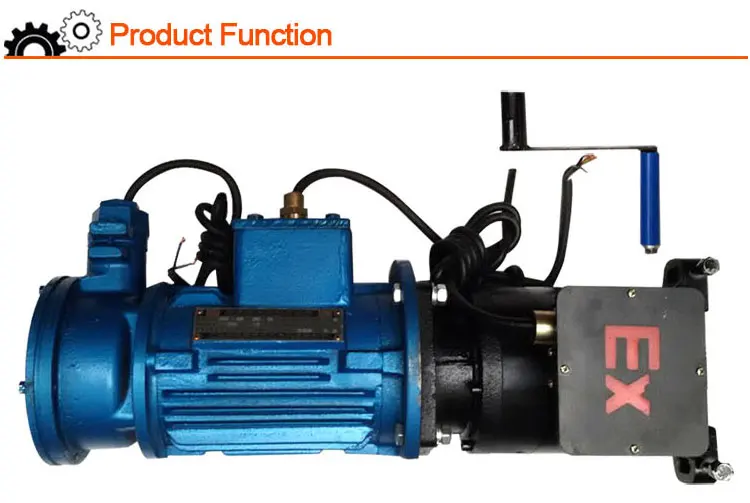

Explosion Proof Roll-up Door Opener Motor Control
| Models | 600-3P | 800-3P | 1000-3P | 1500-3P |
| Rated Voltage | 380V | 380V | 380V | 380V |
| Rated Power | 550W | 750W | 750W | 750W |
| Rated Current | 1.4A | 1.8A | 1.8A | 2.5A |
| Output Torque | 420N.m | 650N.m | 820N.m | 1650N.m |
| Roller Tube Diameter | 154mm | 165mm | 165mm | 219mm |
| Output Speed | 3.9r/min | 3.9r/min | 3.9r/min | 3r/min |
| Max Elevating Power | 600kg | 800kg | 1000kg | 1500kg |
| Max Elevating | 8m | 8m | 8m | 8m |
| Constant Working Time | 30min | 30min | 30min | 30min |
| Chain Type | 10A | 10A | 12A | 16A |
1, handsome in appearance, compact structure, strong horsepower
2, low noise, low vibration, low power consumption, long life
3, light weight, small size, easy installation and reliable perfomance
4, can be equipped with reserve power supply unit, power outages still work property
5, When the power can also be manually operated to achieve the opening and closing the door

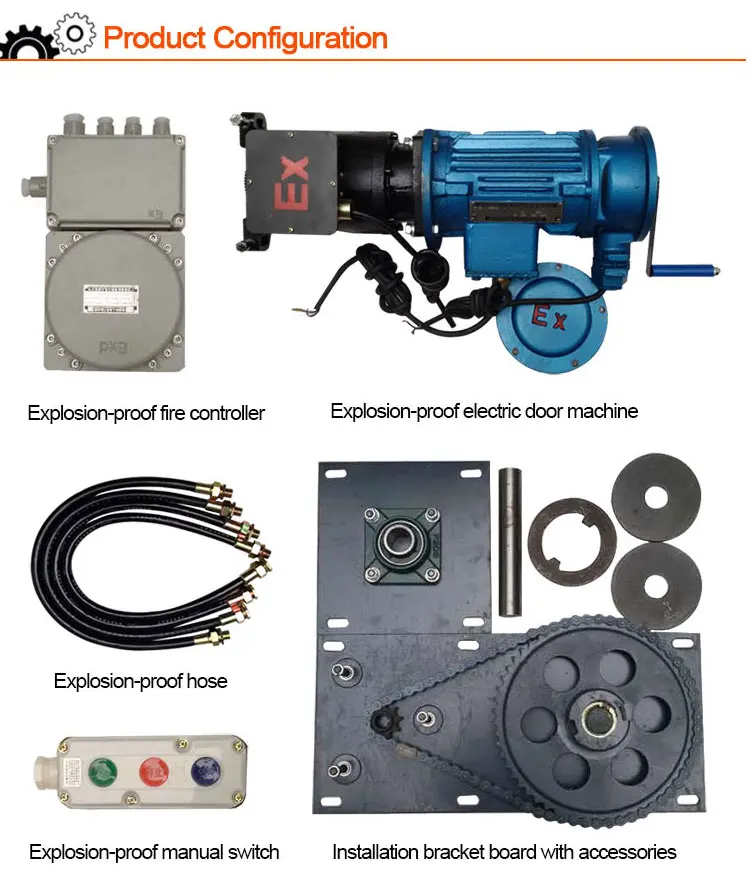

Door control system by explosion-proof electric door machinen stallation bracket board with
accessories, explosion-proof fire controller, explosion-proof manual switch, explosion-proof hose
Use environme1, explosive gas mixture for LA, B level, t1-t4 group of 1, level 2area. explosive dust area
2, ambient temperature-20 ℃-+40℃, atmospheric pressure0.0860. pa, air relative humidity is not greater
than 85%25℃
3, motor shell protection level P55, controller shell protection classIP65. 4, explosion-proof models and explosion-proof signs three Gas explosion-proof grade-exdib4 B, Gas explosion-proofgrade-exdiict4 C,
Dust explosion protection-dipa21, TA, T4.
