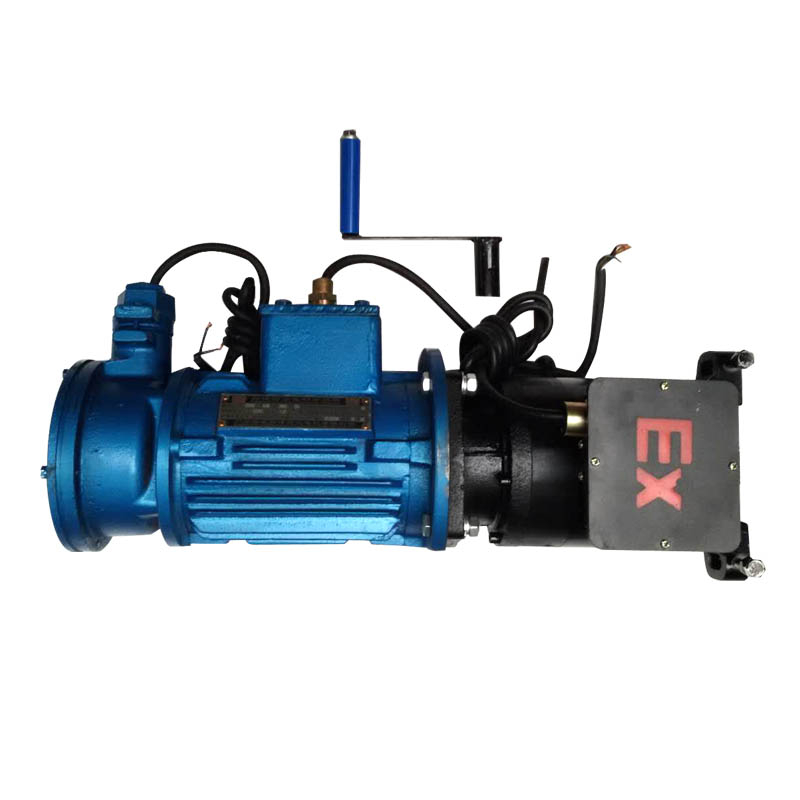

Explosion Proof Electric Rolling Shutter Door Motor

There are three kinds of explosion-proof motors: Gas explosion-prograde-EXd BT4 B, Gas explosion-proof grade-exdlict4 C, Dustexplosion protection-dipa21, TA, T4
Quantity:
  • 600-3P
  • Anlin
  • 600kg
  • 600kg

Explosion Proof Electric Rolling Shutter Door Motor_01.jpg
There are three kinds of explosion-proof motors: Gas explosion-prograde-EXd BT4 B, Gas explosion-proof grade-exdlict4 C, Dustexplosion protection-dipa21, TA, T4_03.jpg

Models 600-3P 800-3P 1000-3P 1500-3P
Rated Voltage 380V 380V 380V 380V
Rated Power 550W 750W 750W 750W
Rated Current  1.4A 1.8A 1.8A 2.5A
Output Torque 420N.m 650N.m 820N.m 1650N.m
Roller Tube Diameter 154mm 165mm 165mm 219mm
Output Speed  3.9r/min 3.9r/min 3.9r/min 3r/min
Max Elevating Power 600kg 800kg 1000kg 1500kg
Max Elevating 8m 8m 8m 8m
Constant Working Time 30min 30min 30min 30min
Chain Type 10A 10A 12A 16A


Applicable to nuclear power, thermal power, hydropower, oil chemical, military and other places where the explosion may be the safety of the need to set up the safety requirements of the explosion hazard_07.jpg

1, handsome in appearance, compact structure, strong horsepower,
2, low noise, low vibration, low power consumption, long life
3, light weight, small size, easy installation and reliable performance
4, can be equipped with reserve power supply unit, power outages still work properly
5, when the power can also be manually operated to achieve the opening and closing the door
