European Standard Fire Rated Smoke Curtain Building Fire Protection

ANLIN fire & smoke curtain system adopts the latest absolute value, electronic limit technology, no need to reset the limit when power off.
We have obtained the certification of Intertek's Warnock Hersey (WH) mark (construction product safety and performance mark recognized in North America and Europe),
also passed ISO: 9001, ISO: 14001 and ISO: 45001 management system certification.
sharethis sharing button


European Standard Fire Rated Smoke Curtain Building Fire Protection

                                            Smoke Curtain
Product Model AL-ZDDJ
Product Description Double sized silicon coated fiberglass cloth reinforced with steel wire
Gram Weight

660 +/- 10% g/m2


0.60 +/-0.01 mm

Color Silver Bright
Tensil Strength Wrap 2238N/inch
Tensil Strength Weft 2316N/inch
Tear Strength Wrap 160.3N
Tear Strength Weft 160.6N
Reaction To Fire Self-extinguishing
Working Temperature


Fabric Width 1000mm,1300mm,1550mm
Recommended Use Fire& Smoke curtain

elevator fire curtain

Passive fire protection

We can customize the fire curtains and smoke curtains according to your actual needs for elevator, escape route, escalators and stairs,and atrlum patio,etc.

smoke control fire curtainsautomatic fire curtain

fire curtain

Option 1: 1 control 1 set                                                              Option 2: 1 control 4, 1 control 8, 1 control 12 set

Inclusions:Motor,Controller,operation lock box                            Inclusions:Motor,Group controller, Sub-controller,                                                                                                                                                     operation lock box

rolling smoke curtain

smoke curtain tubular

ANLIN fire & smoke curtain system is composed of two parts: drive and control.

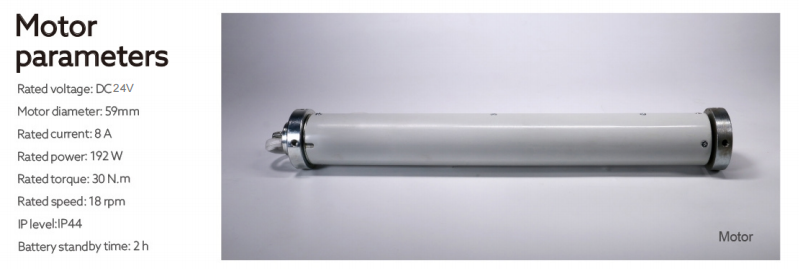

The drive part is mainly composed of motor,roller, idler and fire fabric.
The control part is composed of group control center, motor controller and operation panel.

fire proof curtain

Smoke Curtains

                                                                                 Control Center Parameters
Rated Voltage AC220V-240V 50Hz
Output Voltage DC24V
3 Models: 1 can control 4,8,12 motors respectively
Self-testing function: control the curtain to descend until the lower limit, then rise to the upper limit.
Automatic reset function: After the fire alarm disappears, the curtain automatically rises to the upper limit.

Automatic descending function without mains power: when there is no mains power, the curtain automatically

descends to the lower limit


non combustible curtains

ANLIN is the only company who is listed in Intertek directory of building products
in accordance with the standard BS EN12101-1:2005+A1
Intertek has conducted an evaluation for FUJIAN ANLIN INTELLIGENT SCIENCE AND TECHNOLOGY CO.,LTD to determine the performance of Reliability and durability, Default operation to fire position, Response time, Permeability to smoke and Temperature/time resistance of the Automatic smoke curtain.

Intertek fire curtain

We produce smoke & fire curtains, residential rolling door motors,bank security rolling door motors, fire shuttor motors ,tubular motors and Australian type motors ,welcome to browse the products you are interested in.
