Elevator Door Escalator Used Smoke Blocking Curtain Smoke Guard Elevator Curtain

NLIN fire & smoke curtain system adopts the latest absolute value, electronic limit technology, no need to reset the limit when power off.
We have obtained the certification of Intertek's Warnock Hersey (WH) mark (construction product safety and performance mark recognized in North America and Europe),
also passed ISO: 9001, ISO: 14001 and ISO: 45001 management system certification.
Availability:
Quantity:
  • AL-ZDDJ
  • ANLIN

            Elevator Door Escalator Used Smoke Blocking Curtain Smoke Guard Elevator Curtain

non combustible curtains (2)

fireproof curtain

FIRE & SMOKE CURTAIN APPLICATIONS

The fire & smoke curtain Anlin designs and manufactures adopt the latest absolute value

electronic limit technology, no need to reset the limit when power off.

We can customize the curtains according to your actual needs for elevator,escape route, escalators and stairs,and atrlum patio,etc.

folding smoke curtain

Fire Curtain Smoke Curtain
Product Model AL-2036 AL-ZDDJ
Product description Double sided silicone coated fiberglass cloth reinforced with steel wire Double sided silicone coated fiberglass cloth reinforced with steel wire
Gram weight 710+/-10%g/m2 660+/-10%g/m2
Thickness

0.7 +/-0.01 mm

0.60 +/-0.01 mm
Color Silver bright silver bright
Tensile Strength Warp 2370N/inch 2238N/inch
Tensile Strength Weft
2361N/inch 2316N/inch
Tear Strength Warp 154N 160.3N
Tear Strength Weft 171N 160.6N
Reaction To Fire Self-extinguishing Self-extinguishing
Working temperature

180°C (Coating)

550°C (base fabric)

600°C /120min
Fabric Width 1500mm 1000mm,1300mm,1550mm
Recommended Use Thermal insulation, Fire curtain Fire& Smoke curtain

                                                                 Not Just Quality

                                                 More Optional Functions

                                                       Integrate Multiple Technologies automatic fire curtain

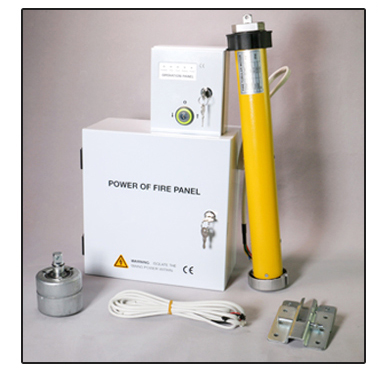

fire curtain system Option 1: 1 control 1set Inclusions:Motor,Controller,operation lock box

curtain of smoke

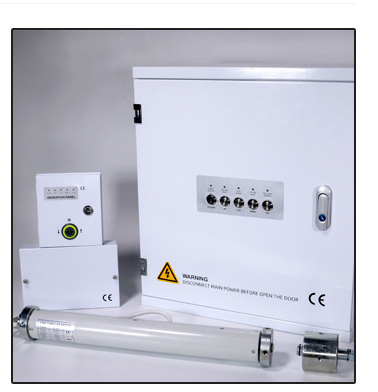

Option 2:1control 4, 1control 8, 1control 12sets.

Inclusions: Motor , Group controller , Sub-controller, operation lock box


rolling smoke curtain

smoke curtain tubular

There  are two parts of ANLIN fire & smoke curtain system: drive and control.

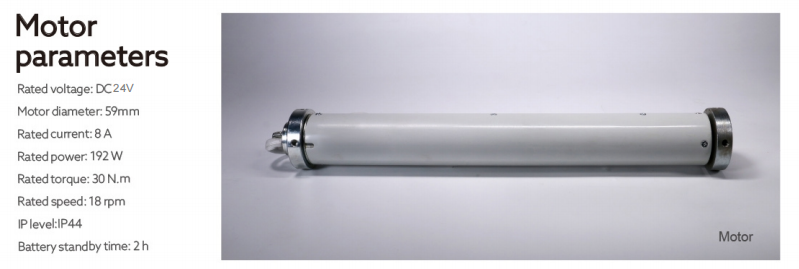

Motor,roller, idler and fire fabric composed of drive part .
The control part is composed of group control center, motor controller and operation panel.

fire proof curtain

chuban0928_13

chuban0928_14

non combustible curtains

Certification
ANLIN is the only company who is listed in Intertek directory of building products
in accordance with the standard BS EN12101-1:2005+A1
Intertek has conducted an evaluation for FUJIAN ANLIN INTELLIGENT SCIENCE AND TECHNOLOGY CO.,LTD to determine the performance of Reliability and durability, Default operation to fire position, Response time, Permeability to smoke and Temperature/time resistance of the Automatic smoke curtain.

Intertek fire curtain

We produce smoke & fire curtains, residential rolling door motors,bank security rolling door motors, fire shuttor motors ,tubular motors and Australian type motors ,welcome to browse the products you are interested in.
