Certified Manufacturer of Fire & Smoke Protection Smoke Curtains

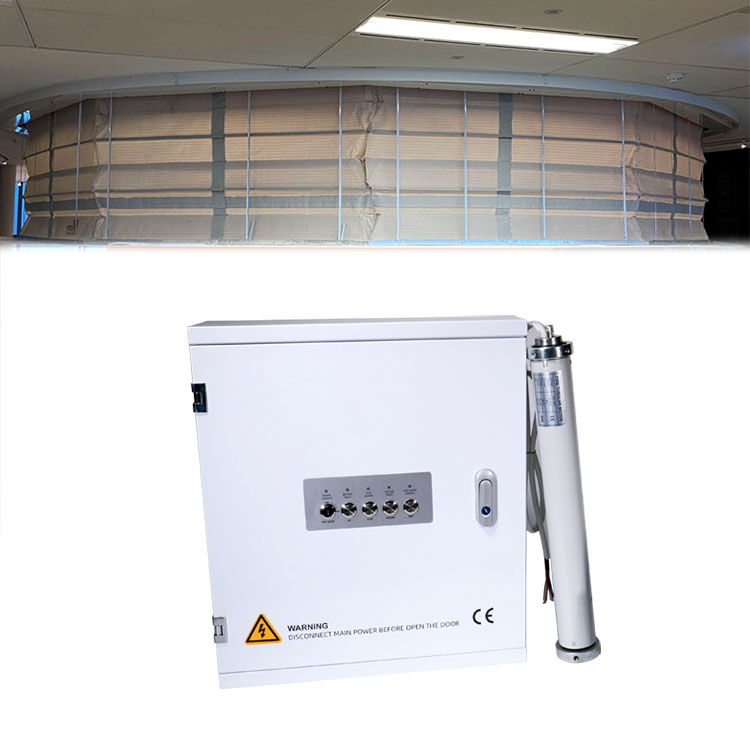

Anlin Smoke curtain composed of double-sided silicone coated with steel wire inside fiberglass fabric curtain ,motor, power box, control box, group control box, wireless remote control system.We adopts the latest absolute value, electronic limit technology, no need to reset the limit when power off.
Anlin have obtained the certification of Intertek's Warnock Hersey (WH) mark (construction product safety and performance mark recognized in North America and Europe),
also passed ISO: 9001, ISO: 14001 and ISO: 45001 management system certification.
Availability:
Quantity:
sharethis sharing button
  • AL-ZDDJ

  • ANLIN

Certified Manufacturer of  Fire & Smoke Protection Smoke Curtains non combustible curtains (2)

fireproof curtain

FIRE & SMOKE CURTAIN APPLICATIONS

The fire & smoke curtain Anlin designs and manufactures adopt the latest absolute value electronic limit technology, no need to reset the limit when power off.

The smoke curtain can be applied in escape route, elevator door, elevator lobby, escalators and stairs, Atrium Chimney ,etc.. We can customized smoke curtain according to your specific application scenarios.

folding smoke curtain


Fire Curtain Smoke Curtain
Product Model AL-2036 AL-ZDDJ
Product description Double sided silicone coated fiberglass cloth reinforced with steel wire Double sided silicone coated fiberglass cloth reinforced with steel wire
Gram weight 710+/-10%g/m2 660+/-10%g/m2
Thickness

0.7 +/-0.01 mm

0.60 +/-0.01 mm



Color Silver bright silver bright
Tensile Strength Warp 2370N/inch 2238N/inch
Tensile Strength Weft
2361N/inch 2316N/inch
Tear Strength Warp 154N 160.3N
Tear Strength Weft 171N 160.6N
Reaction To Fire Self-extinguishing Self-extinguishing
Working temperature

180°C (Coating)

550°C (base fabric)

600°C /120min
Fabric Width 1500mm 1000mm,1300mm,1550mm
Recommended Use Thermal insulation, Fire curtain Fire& Smoke curtain

                                                                 Not Just Quality

                                                 More Optional Functions

                                                       Integrate Multiple Technologies automatic fire curtain

fire curtain

    Option 1: 1 control 1set                                                                 Option 2:1control 4, 1control 8, 1control 12sets.

   Inclusions:Motor,Controller,operation lock box                               Inclusions: Motor , Group controller , Sub-controller,

                                                                                          operation lock box

rolling smoke curtainsmoke curtain tubular

fire proof curtain

fire Smoke Curtains

                                                                    Control Center Parameters

Rated Voltage AC220V-240V /50Hz
Output Voltage DC24V
3models : 1 control 4,8,12 motors respectively
Self-testing function: control the curtain to descend until the lower limit, then rise to the upper limit.
Automatic reset function: After the fire alarm disappears, the curtain automatically rises to the upper limit
Automatic descending function without mains power: when there is no mains power,the curtain automatically descends to the lower limit

chuban0928_14

non combustible curtains

Certification
ANLIN is the only company who is listed in Intertek directory of building products
in accordance with the standard BS EN12101-1:2005+A1
Intertek has conducted an evaluation for FUJIAN ANLIN INTELLIGENT SCIENCE AND TECHNOLOGY CO.,LTD to determine the performance of Reliability and durability, Default operation to fire position, Response time, Permeability to smoke and Temperature/time resistance of the Automatic smoke curtain.

Intertek fire curtain

chuban0928_16

Fujian Anlin Intelligent Technology Co., Ltd. (formerly Zhangzhou Kylin Electronics Co., Ltd.),  is a national high-tech enterprise in Fujian province, which integrates R&D, production, sales and service of intelligent electric windows and doors. Our main products are Rolling door motoranti-fire rolling door motor, Smoke curtains etc.. We provide customization serverce, welcome to contact with us if any interesting.
