BS EN12101-1 Standard 120min Resistant Smoke Curtain Motor System Smoke Blocking

ANLIN fire & smoke curtain system adopts the latest absolute value, electronic limit technology, no need to reset the limit when power off.
We have obtained the certification of Intertek's Warnock Hersey (WH) mark (construction product safety and performance mark recognized in North America and Europe),
also passed ISO: 9001, ISO: 14001 and ISO: 45001 management system certification.
Availability:
Quantity:
  • AL-ZDDJ
  • ANLIN

BS EN12101-1 Standard 120min Resistant Smoke Curtain Motor System Smoke Blocking

elevator fire curtain

Smoke curtain can be applied in escape route, elevator door, elevator lobby, escalators and stairs, Atrium Chimney ,etc.. We can customized smoke curtain according to your specific application scenarios.Passive fire protection

smoke control fire curtains automatic fire curtain


fire curtain

Option 1: 1 control 1 set                                                              Option 2: 1 control 4, 1 control 8, 1 control 12 set

Inclusions:Motor,Controller,operation lock box                            Inclusions:Motor,Group controller, Sub-controller,                                                                                                                                                     operation lock box

rolling smoke curtain

smoke curtain tubular

ANLIN fire & smoke curtain system is composed of two parts: drive and control.

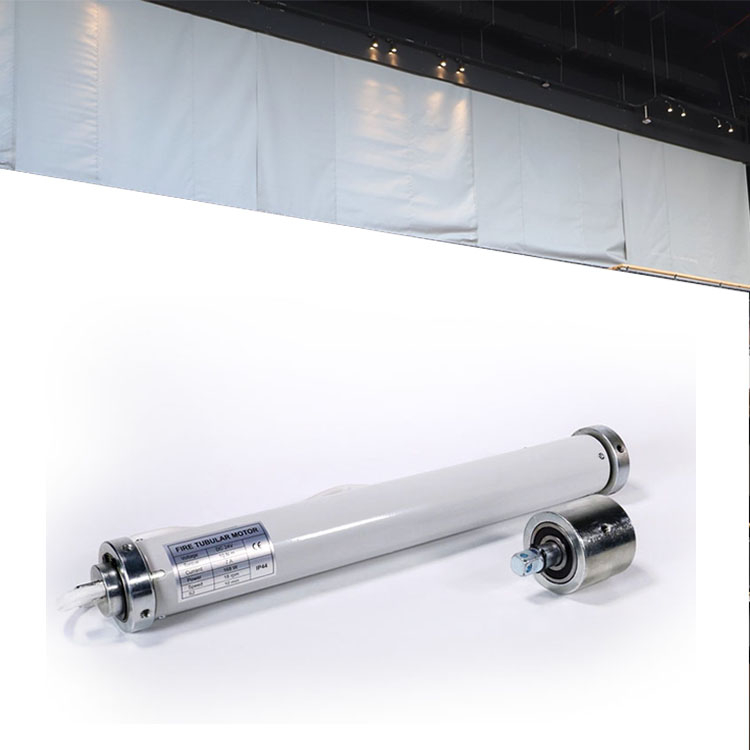

The drive part is mainly composed of motor,roller, idler and fire fabric.
The control part is composed of group control center, motor controller and operation panel.

fire proof curtain

                                                         Motor Parameters
Rated Voltage DC21V
Motor Diameter 59mm
Rated Current 8A
Rated Power 192W
Rated Torque 30N.m
Rated Speed 18rpm
IP Level IP44
Battery standby time 2h

chuban0928_13

                                                                                 Control Center Parameters
Rated Voltage AC220V-240V 50Hz
Output Voltage DC24V
3 Models: 1 can control 4,8,12 motors respectively
Self-testing function: control the curtain to descend until the lower limit, then rise to the upper limit.
Automatic reset function: After the fire alarm disappears, the curtain automatically rises to the upper limit.

Automatic descending function without mains power: when there is no mains power, the curtain automatically

descends to the lower limit

chuban0928_14

non combustible curtains

Certification
ANLIN is the only company who is listed in Intertek directory of building products
in accordance with the standard BS EN12101-1:2005+A1
Intertek has conducted an evaluation for FUJIAN ANLIN INTELLIGENT SCIENCE AND TECHNOLOGY CO.,LTD to determine the performance of Reliability and durability, Default operation to fire position, Response time, Permeability to smoke and Temperature/time resistance of the Automatic smoke curtain.

Intertek fire curtain

We produce smoke & fire curtains, residential rolling door motors,bank security rolling door motors, fire shuttor motors ,tubular motors and Australian type motors ,welcome to browse the products you are interested in.

chuban0928_16
