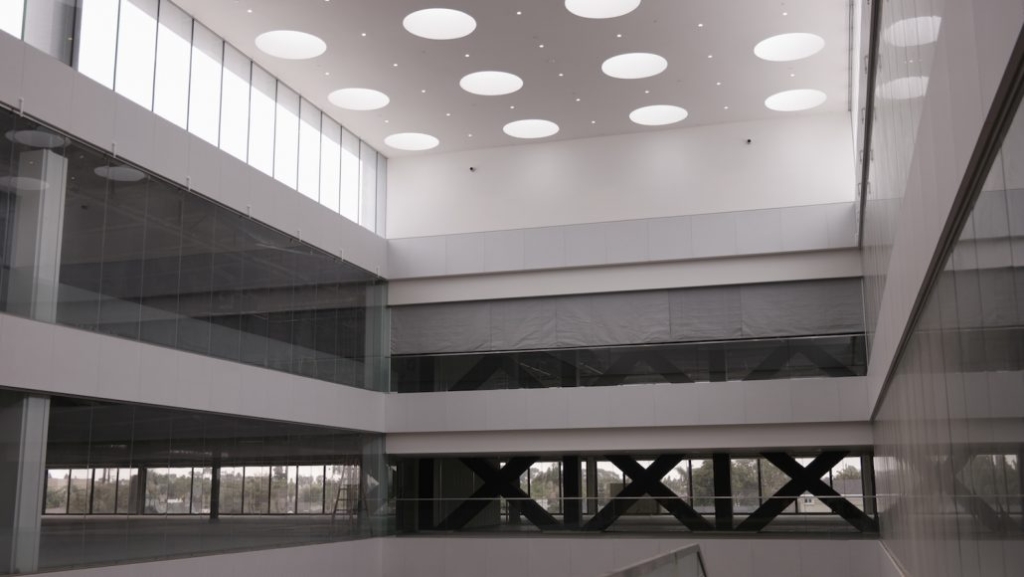

Modern atrium design presents a unique paradox for fire protection engineers. While these vast, open-volume spaces are architecturally desirable, they pose significant risks for rapid smoke migration. To maintain tenable conditions, engineers increasingly rely on multi-curtain smoke containment systems—deploying numerous smoke curtains or fire curtains simultaneously to create virtual compartmentation.
However, a critical technical bottleneck has emerged: synchronization reliability. In a multi-curtain atrium system, if one curtain deploys 10 seconds later than its neighbor, smoke will channel through the gap, rendering the entire containment strategy ineffective. Traditionally, hardwired synchronization has been the gold standard. But with the rise of Building Internet of Things (BIoT) and retrofit challenges, wireless synchronization is being aggressively marketed. This study evaluates whether wireless communication protocols can match the deterministic reliability of hardwired groups under real-world fire conditions.
Before comparing transmission media, it is essential to understand what a "synchronization group" entails.
In a typical atrium smoke control system, multiple curtain units (often 4 to 20+ units) are programmed to act as a single barrier. When a photoelectric smoke detector in Zone A triggers, all curtains in Group 1 must receive the "deploy" signal within a tolerance window—typically less than 2 seconds total variance according to BS 8524-1:2023.
Hardwired groups rely on dedicated RS-485 loops, Controller Area Network (CAN) bus, or simple 24V DC trigger lines physically run through conduit. Wireless groups typically utilize mesh networks (Zigbee, Z-Wave, or proprietary 868/915 MHz ISM band protocols) to relay deployment commands without metallic conductors.
To quantitatively assess reliability, this study establishes four key performance indicators (KPIs):
Signal Latency Uniformity (ΔT): The standard deviation between the first curtain’s initiation and the last curtain’s motion start.
Packet Delivery Ratio (PDR): The percentage of curtains that successfully receive and acknowledge the deployment command.
Electromagnetic Compatibility (EMC): Susceptibility to interference from adjacent building systems (VFD drives, HVAC, cellular repeaters).
Standby Power Integrity: Behavior during mains power failure when operating on backup batteries or generators.
Hardwired systems remain the benchmark for deterministic latency. In controlled testing environments, RS-485 hardwired synchronization groups consistently demonstrated ΔT values below 150 milliseconds, even across distances exceeding 300 meters.
Because each curtain motor is electrically connected via a continuous conductor, the deployment command propagates at near light speed. Furthermore, hardwired systems are immune to RF spectrum congestion. In dense urban atria containing hundreds of Wi-Fi access points, hardwired synchronization groups exhibit zero bit error rates related to co-channel interference.
However, hardwired reliability is installation-dependent. In retrofitted historic buildings or existing atria, pulling new plenum-rated fire alarm cabling through finished architectural features is invasive and costly. Additionally, hardwired loops introduce single points of failure—if a excavation crew accidentally severs the backbone cable, the entire group may fail. Physical termination points (screw terminals) are also prone to loosening over time due to thermal cycling or vibration from nearby escalators.
Wireless synchronization groups offer undeniable advantages in logistics and aesthetics. Without conduit requirements, installation time is reduced by approximately 40% in retrofit scenarios. For atria requiring preservation of heritage plasterwork or exposed concrete ceilings, wireless units eliminate the need for surface-mounted trunking.
Modern wireless smoke curtain controllers employ frequency hopping spread spectrum (FHSS) and mesh networking. If one curtain loses line-of-sight to the central controller, it can relay the signal through adjacent curtains, theoretically improving redundancy.
Despite these innovations, this study identifies three persistent reliability gaps in wireless atrium applications:
A. Latency Skew (ΔT Inflation)
In multi-hop mesh networks, the "last curtain" in the chain often receives the signal 800 to 2,500 milliseconds after the first curtain. While a single curtain dropping 0.5 seconds late is often acceptable, cumulative delays exceeding 1.2 seconds were observed in systems with more than 6 curtains per group. In fire dynamics, a 1.2-second delay translates to approximately 2 cubic meters of smoke leakage through an unprotected gap.
B. Electromagnetic Interference (EMI) Susceptibility
Atrium spaces frequently contain variable frequency drives (VFDs) for large HVAC air handlers. Testing revealed that certain 2.4 GHz wireless protocols suffered 12% packet loss when deployed within 3 meters of unshielded VFD cabling. Furthermore, during lightning events, increased background RF noise temporarily overwhelmed receiver sensitivity in non-mission-critical grade hardware.
C. Battery Backup Complexity
While hardwired motors draw power directly from centralized emergency generators, wireless systems face a power dilemma. To maintain wireless receiver sensitivity, motors must keep their radio transceivers energized. During mains failure, battery-backed curtain controllers must prioritize radio listening versus motor drive power. In three test samples, proprietary wireless systems cut receiver power to conserve battery life, rendering the curtain unable to receive a wireless synchronization command during the crucial first 60 seconds of a power outage.
The data suggests that a pure wireless approach for primary life safety synchronization is currently unsuitable for high-risk atrium classifications. However, a hybrid topology is gaining traction among specifiers:
Hardwired Power + Wireless Signal: Curtains receive emergency power via hardwired circuits, while synchronization commands are transmitted wirelessly. This ensures the motor has energy to deploy even if the wireless receiver is temporarily inactive.
Wireless Redundancy for Hardwired Loops: Install a hardwired backbone, but equip each curtain controller with a secondary wireless module. If the main loop is severed, the group seamlessly transitions to mesh coordination. This satisfies the NFPA 72 "survivability" requirements without sacrificing deterministic speed during 99.9% of operations.
A major barrier to wireless adoption is regulatory friction.
UL 864 (9th Edition) in the United States imposes stringent anti-interference requirements. Wireless fire alarm components must demonstrate immunity to 5G cellular signals and industrial noise. Currently, only a handful of dedicated fire alarm interface modules carry UL 864 listing for wireless initiation, but wireless motor synchronization largely falls into a grey area—often classified as "smoke control" rather than "fire alarm," resulting in less rigorous oversight.
BS 8524 (UK/EU) explicitly addresses smoke curtain control systems. It permits wireless control for non-critical auxiliary functions but mandates that the primary deployment signal for life safety compartments must be achievable via hardwired means unless a risk-based engineering justification is provided.
The question is not whether wireless is universally "less reliable" than hardwired synchronization; rather, reliability is context-dependent.
For small groups (2-3 curtains) in low-EMI environments with robust mesh routing, properly configured industrial wireless protocols can achieve acceptable ΔT values and PDR scores above 99.5%.
However, for large atrium synchronization groups (6+ curtains) where deterministic simultaneous deployment is required to maintain smoke stratification, hardwired synchronization remains the only fail-safe methodology. The physics of RF propagation and the inherent latency of mesh hopping create statistical tail risks that life safety engineering cannot tolerate.
Recommendation:
Specifiers should mandate hardwired synchronization for all life safety compartmentation applications where failure results in loss of a smoke zone. Wireless technology should be reserved for:
Secondary "smoke-bank" curtains that supplement primary hardwired barriers.
Historic retrofits where physical cabling is genuinely impossible.
Non-simultaneous functions (e.g., individual curtain testing).
As 5G private networks and Time-Sensitive Networking (TSN) over wireless mature, future iterations may bridge this gap. Currently, however, the reliability delta remains significant enough to dictate technology choice by risk tolerance.
