Smoke is responsible for the majority of fatalities during building fires. In many cases, it spreads much faster than flames, reducing visibility, contaminating escape routes, and making evacuation significantly more difficult. For this reason, modern buildings increasingly rely on smoke curtain systems as an essential part of their smoke control strategy.

But where are smoke curtains used, and why have they become such an important component in commercial buildings?

This guide explains the most common applications of smoke curtains, how they work in different environments, and why architects, fire engineers, contractors, and building owners specify them in projects around the world.

What Is a Smoke Curtain?

A smoke curtain is an automatic barrier designed to control the movement of smoke during a fire. Unlike a fire curtain, which is intended to resist flames and heat, a smoke curtain mainly limits smoke migration and helps maintain smoke reservoirs or protected escape routes.

Most automatic smoke curtain systems remain hidden inside a ceiling box during normal operation. Once activated by a fire alarm or smoke detection system, the curtain descends automatically to create a smoke barrier.

This allows smoke extraction systems to work more efficiently while providing occupants with more time to evacuate safely.

Why Are Smoke Curtains Important?

Smoke can travel through open spaces within minutes. Large modern buildings often feature open-plan layouts, atriums, shopping areas, and interconnected corridors that allow smoke to spread rapidly.

Installing smoke curtains offers several important advantages:

• Controls smoke movement during emergencies

• Improves visibility along escape routes

• Supports smoke extraction systems

• Protects occupants during evacuation

• Helps reduce smoke damage to property

• Assists buildings in meeting fire safety regulations

• Preserves architectural openness without permanent walls

Because of these benefits, smoke curtains have become a preferred solution in many contemporary buildings.

Where Are Smoke Curtains Used?

Smoke curtains are suitable for a wide range of commercial, public, and industrial buildings.

Below are the most common applications.

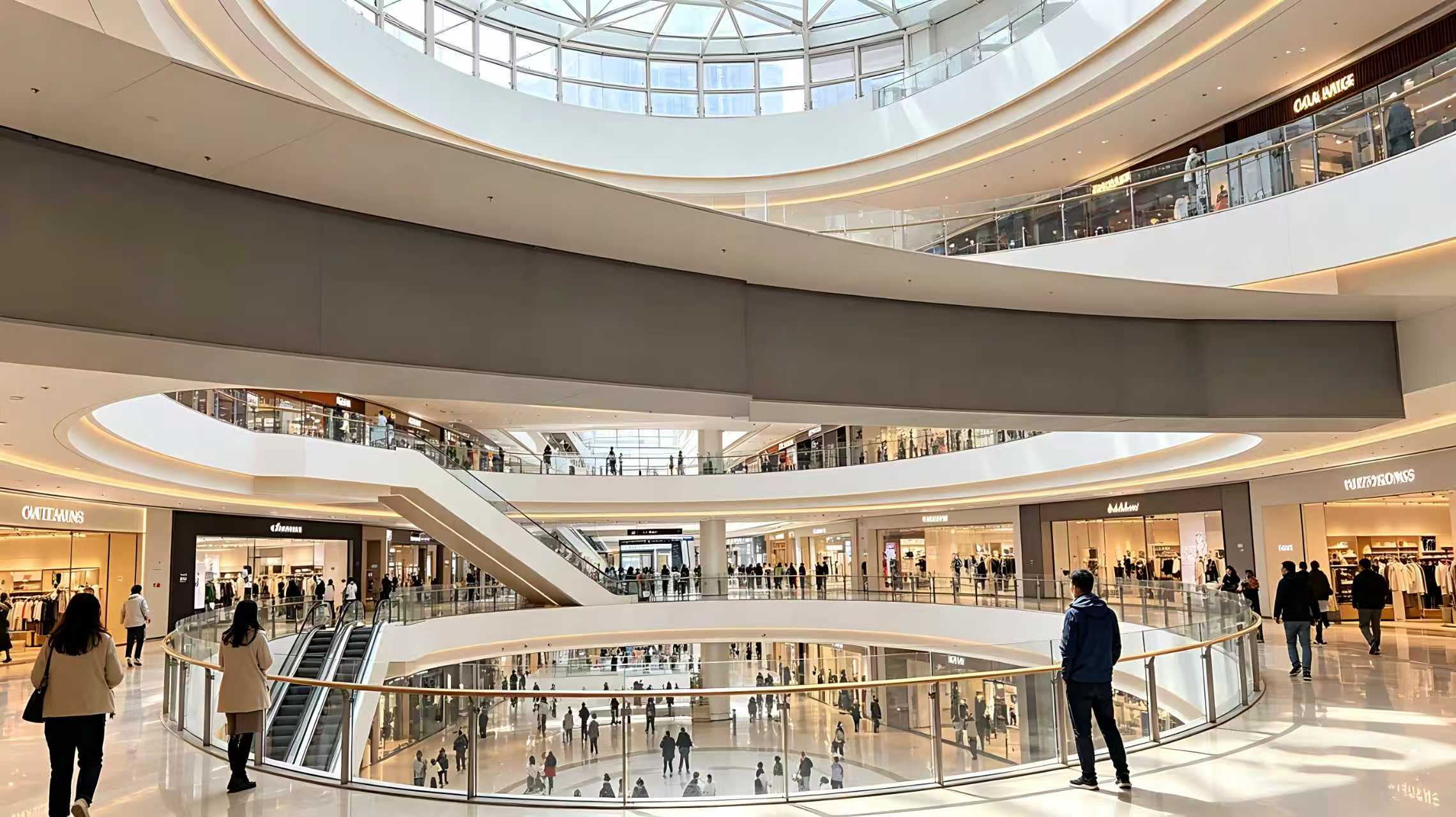

1. Shopping Malls

Shopping malls usually contain large atriums connecting multiple floors.

Without smoke control, smoke can quickly spread throughout the entire building.

Smoke curtains are commonly installed:

• Around atriums

• Between retail zones

• Near escalators

• Above shop entrances

• Around food courts

These systems help contain smoke within designated areas while allowing smoke extraction fans to remove smoke effectively.

2. Airports

Airports require high levels of life safety due to heavy passenger traffic.

Smoke curtains are often installed in:

• Departure halls

• Arrival halls

• Duty-free shopping areas

• Terminal atriums

• Security checkpoints

Since airports usually have large open ceilings, smoke curtains provide compartmentation without affecting the architectural appearance.

3. Hotels

Hotels accommodate sleeping occupants who may need additional evacuation time.

Smoke curtain systems are frequently installed near:

• Hotel lobbies

• Reception areas

• Conference centers

• Restaurants

• Large atriums

Proper smoke control helps keep evacuation routes clearer and reduces smoke migration between public spaces.

4. Hospitals

Hospitals require special consideration because many occupants cannot evacuate independently.

Smoke curtains may be installed around:

• Central atriums

• Waiting areas

• Connecting corridors

• Emergency departments

• Multi-story public spaces

They assist phased evacuation strategies by controlling smoke movement between compartments.

5. Office Buildings

Modern office buildings often feature open architectural designs.

Smoke curtains are commonly found in:

• Lobby entrances

• Atriums

• Open office floors

• Elevator lobbies

• Meeting centers

They preserve the building's open appearance while providing automatic smoke compartmentation during emergencies.

6. Metro Stations and Railway Stations

Transportation hubs experience high daily passenger volumes.

Smoke curtain systems help protect:

• Passenger platforms

• Ticket halls

• Underground passages

• Waiting areas

• Commercial zones

Effective smoke management is particularly important in underground environments where smoke accumulation can occur rapidly.

7. Exhibition Centers

Convention and exhibition halls usually contain extremely large open spaces.

Smoke curtains divide these areas into smoke reservoirs, allowing smoke extraction systems to function more efficiently.

Applications include:

• Exhibition halls

• Conference centers

• Event venues

• Convention entrances

8. Warehouses and Logistics Centers

Large warehouses may contain valuable inventory and high ceilings.

Smoke curtains assist by:

• Limiting smoke spread

• Supporting smoke ventilation

• Protecting storage zones

• Improving firefighter access

Combined with smoke exhaust systems, they help reduce property damage during fire incidents.

9. Manufacturing Facilities

Factories often include large production halls where smoke can spread rapidly.

Smoke curtain systems are suitable for:

• Assembly plants

• Manufacturing workshops

• Distribution centers

• Industrial production areas

The exact design depends on the building layout and local fire safety requirements.

10. Theaters and Performing Arts Centers

Many theaters use automatic smoke or fire curtains to protect audiences and stage areas.

Smoke curtains can also be installed in:

• Entrance halls

• Auditoriums

• Public foyers

These systems support smoke management while maintaining the venue's architectural aesthetics.

Factors to Consider Before Choosing a Smoke Curtain

Every building has different fire safety requirements.

Before selecting a smoke curtain system, engineers typically evaluate:

• Building height

• Ceiling structure

• Atrium dimensions

• Smoke reservoir design

• Fire alarm integration

• Control system compatibility

• Local building regulations

• Required certifications

• Maintenance accessibility

Choosing the right system during the design stage helps reduce installation challenges later in the project.

Smoke Curtain Standards and Certifications

Depending on the target market, smoke curtains may need to comply with specific standards.

Examples include:

• EN 12101 for smoke and heat control systems

• BS 8524 for active fire curtain barrier assemblies

• Local building codes and fire regulations

• Project-specific certification requirements

Always confirm the applicable standards with local authorities and project specifications.

Frequently Asked Questions

Can smoke curtains stop fire?

No. Smoke curtains are primarily designed to control smoke movement rather than resist direct fire exposure. Buildings that require fire separation may also need dedicated fire curtains or fire shutters.

Can smoke curtains remain hidden?

Yes. Most automatic smoke curtains are concealed within ceiling housings and deploy only when activated by the fire alarm system.

Do smoke curtains require maintenance?

Yes. Like other life safety equipment, smoke curtain systems should be inspected and tested periodically according to the manufacturer's recommendations and local regulations.

Are smoke curtains suitable for retrofit projects?

In many cases, yes. Existing commercial buildings can often incorporate smoke curtains with careful planning and professional installation, although feasibility depends on structural conditions and fire strategy.

Conclusion

Smoke curtains play a vital role in modern fire safety by controlling smoke movement, protecting evacuation routes, and supporting smoke extraction systems. From shopping malls and airports to hospitals, warehouses, office buildings, and transportation hubs, these systems provide an effective solution without compromising architectural design.

Understanding where smoke curtains are used helps architects, consultants, contractors, and facility owners choose the most appropriate smoke control strategy for each project.

When selecting a smoke curtain system, consider the building layout, applicable standards, integration with the fire alarm system, and long-term maintenance requirements. Working with an experienced manufacturer can help ensure reliable performance and compliance throughout the building's service life.

Please contact us for more solutions.
