Sliding Gate Opener Automatic Sliding Gate Opener Sliding Gate Motor Commercial And Residential Slide Gate Operators Sliding Gates Kit And Motor Automatic Sliding Gate Openers

Sliding Gate Opener Automatic Sliding Gate Opener Sliding Gate Motor Commercial And Residential Slide Gate Operators Sliding Gates Kit And Motor Automatic Sliding Gate Openers

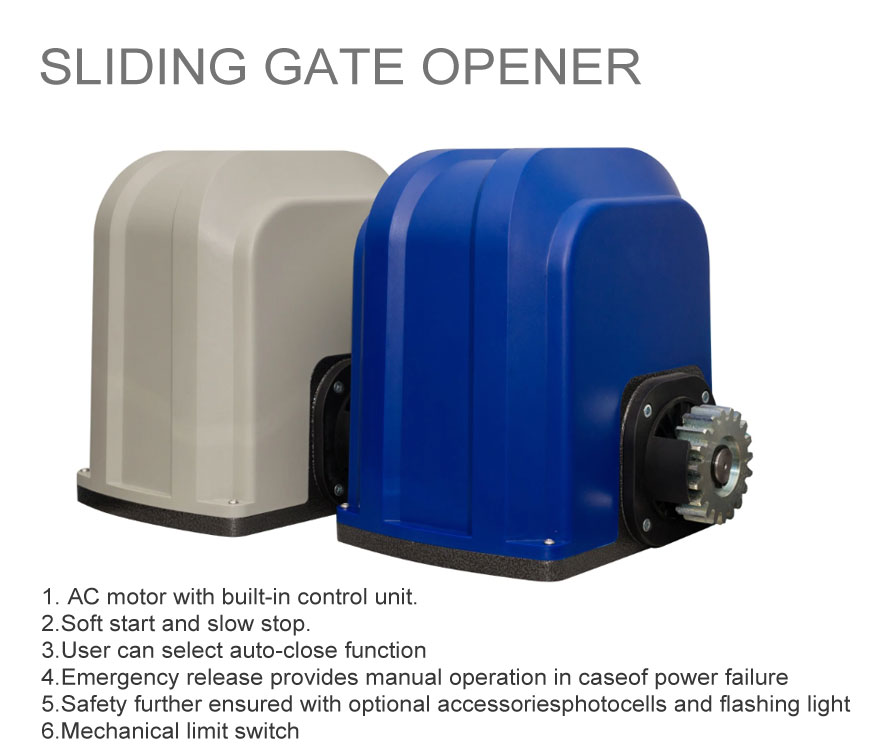

1. AC motor with built-in control unit.
2.Soft start and slow stop.
3.User can select auto-close function
4.Emergency release provides manual operation in case of power failure
5.Safety further ensured with optional accessories photocells and flashing light
6.Mechanical limit switch

Quantity:
Availability:





Inquire Add to Basket

Product Description

SLIDING-GATE-OPENER_01 SLIDING-GATE-OPENER_03 SLIDING-GATE-OPENER_04 SLIDING-GATE-OPENER_05

Specification
Model	DCK-156D	DCK-166D	DCK-166E	DCK-176D	DCK-186D	DCK196D
Input Power (V)	AC Single-phase120V/220V 240V
Max. gate weight (KG)	500KG	800KG	1200KG	1600KG	2000KG	2500KG
Max. Torque	18Nm	22Nm	35Nm	50Nm	60Nm	75Nm
Rated Power (W)	370W	450W	550W	750W	900W	1200W
Protection Class	IP44	IP44	IP44	IP44	IP44	IP44
Speed (m/min)	12	12	12	12	12	12
Temperature (°C)	-45℃~+65℃	-45℃~+65℃	-45℃~+65℃	-45℃~+65℃	-45℃~+65℃	-45℃~+65℃
Noise	≤56dB	≤56dB	≤56dB	≤56dB	≤56dB	≤56dB
Certification	CCC/CE	CCC/CE	CCC/CE	CCC/CE	CCC/CE	CCC/CE

Sliding Gate Opener Automatic Sliding Gate Opener Sliding Gate Motor Commercial and Residential Slide Gate Operators Sliding gates Kit and Motor Automatic Sliding Gate Openers Slide Gate Operators Electric Sliding Gate Opener Slide Gate Openers
