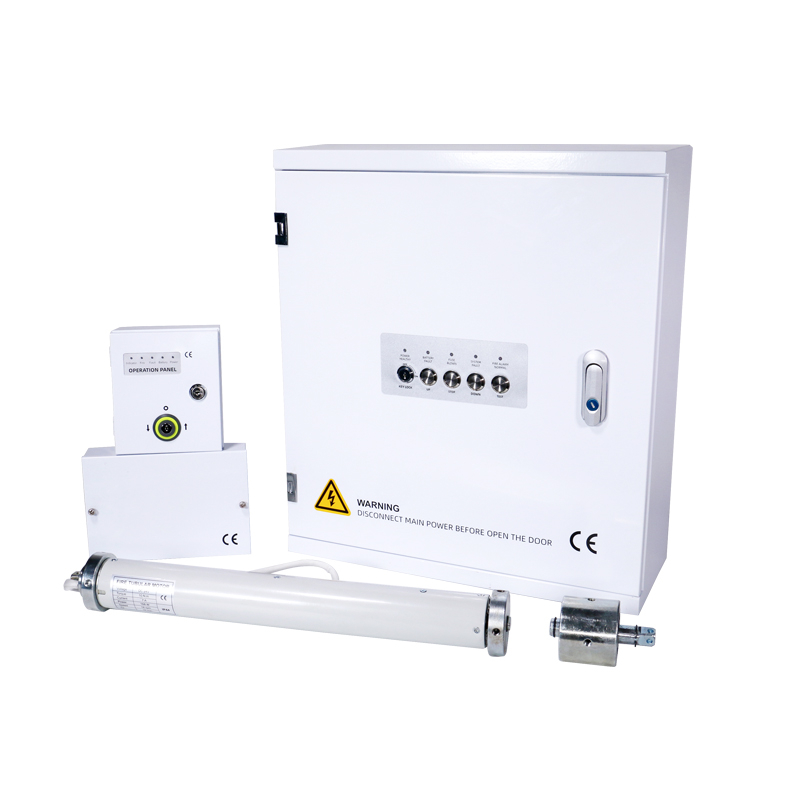

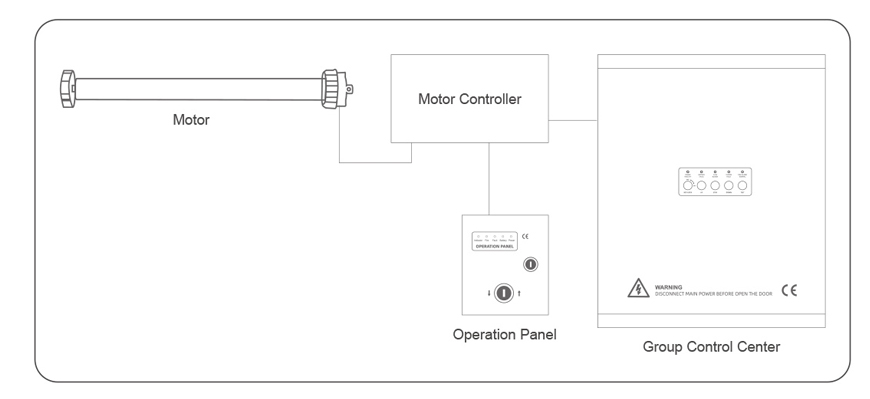

ANLIN fire &smoke curtain system is composed of two parts:drive and control. The drive partis mainly composed of motor,roller,idler and fire fabric. The control part is composed of group control center, motor controller and operation panel.
| Model | 10N | 30N | 50N |
| Rated Voltage | 24V | 24V | 24V |
| No-load current | 1A | 1A | 1A |
| Load Current | 4A | 4.5A | 8A |
| Load Current | 96W | 108W | 192W |
| Load weight | 40kg | 60kg | 100kg |
| Load speed | 23rpm | 15rpm | 16rpm |
| Declining weight | 7.5kg | 12kg | 20kg |
| Declining speed | 22rpm | 15rpm | 13rpm |
| Function of Controller | single control | group control | group control |
| Power failure motor descending by itself | √ | √ | √ |
| Firefighting linkage | √ | √ | √ |
| Autonomous linkage | × | √ | √ |
| Remote control | × | √ | √ |
ANLIN fire &smoke curtain system is composed of two parts:drive and control. The drive partis mainly composed of motor,roller,idler and fire fabric. The control part is composed of group control center, motor controller and operation panel.
| Model | 10N | 30N | 50N |
| Rated Voltage | 24V | 24V | 24V |
| No-load current | 1A | 1A | 1A |
| Load Current | 4A | 4.5A | 8A |
| Load Current | 96W | 108W | 192W |
| Load weight | 40kg | 60kg | 100kg |
| Load speed | 23rpm | 15rpm | 16rpm |
| Declining weight | 7.5kg | 12kg | 20kg |
| Declining speed | 22rpm | 15rpm | 13rpm |
| Function of Controller | single control | group control | group control |
| Power failure motor descending by itself | √ | √ | √ |
| Firefighting linkage | √ | √ | √ |
| Autonomous linkage | × | √ | √ |
| Remote control | × | √ | √ |
