Brushless Industrial Door Motor No torsion spring is required during installation Rolling Door motor

Brushless Industrial Door Motor for Rolling Shutters – No Torsion Spring Needed | Specialized Lift Door Motor

Upgrade your industrial rolling door system with our specialized brushless motor, engineered for heavy-duty performance and hassle-free installation. Unlike traditional systems, this lift door motor eliminates the need for torsion springs, reducing maintenance and safety risks.
.

Quantity:
Availability:





Inquire Add to Basket

Product Description

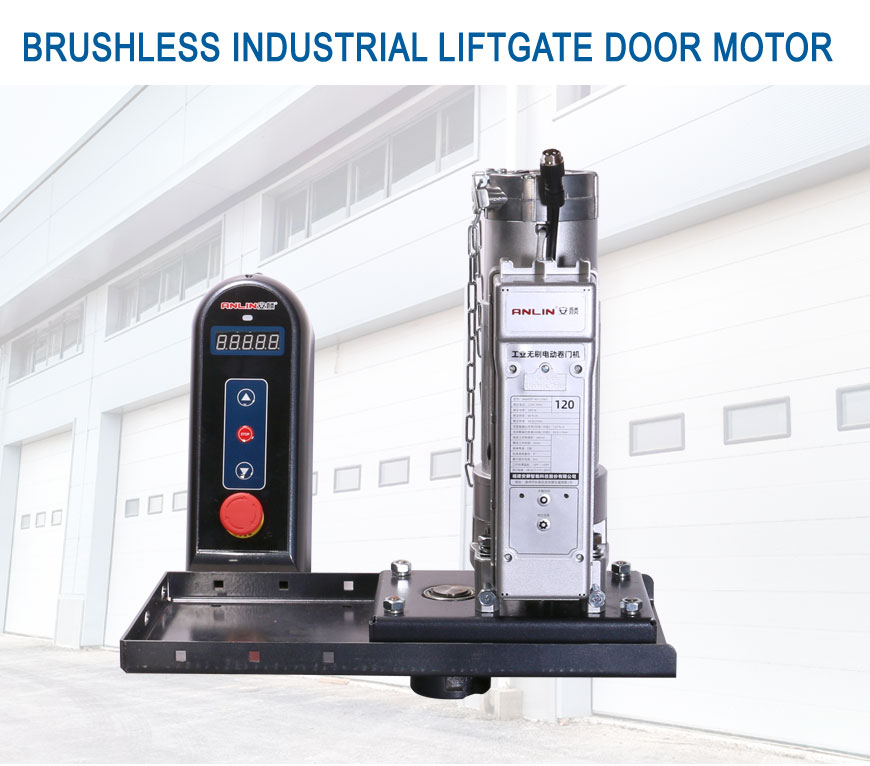

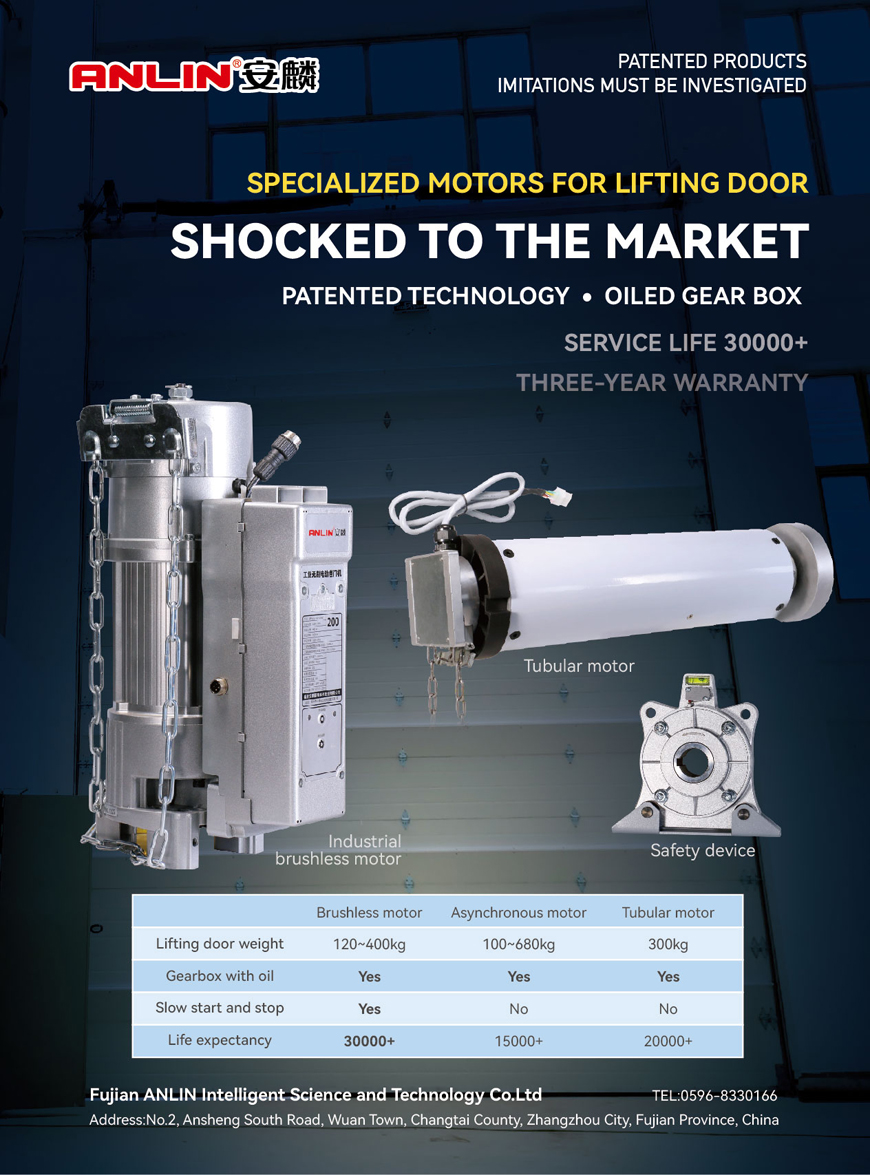

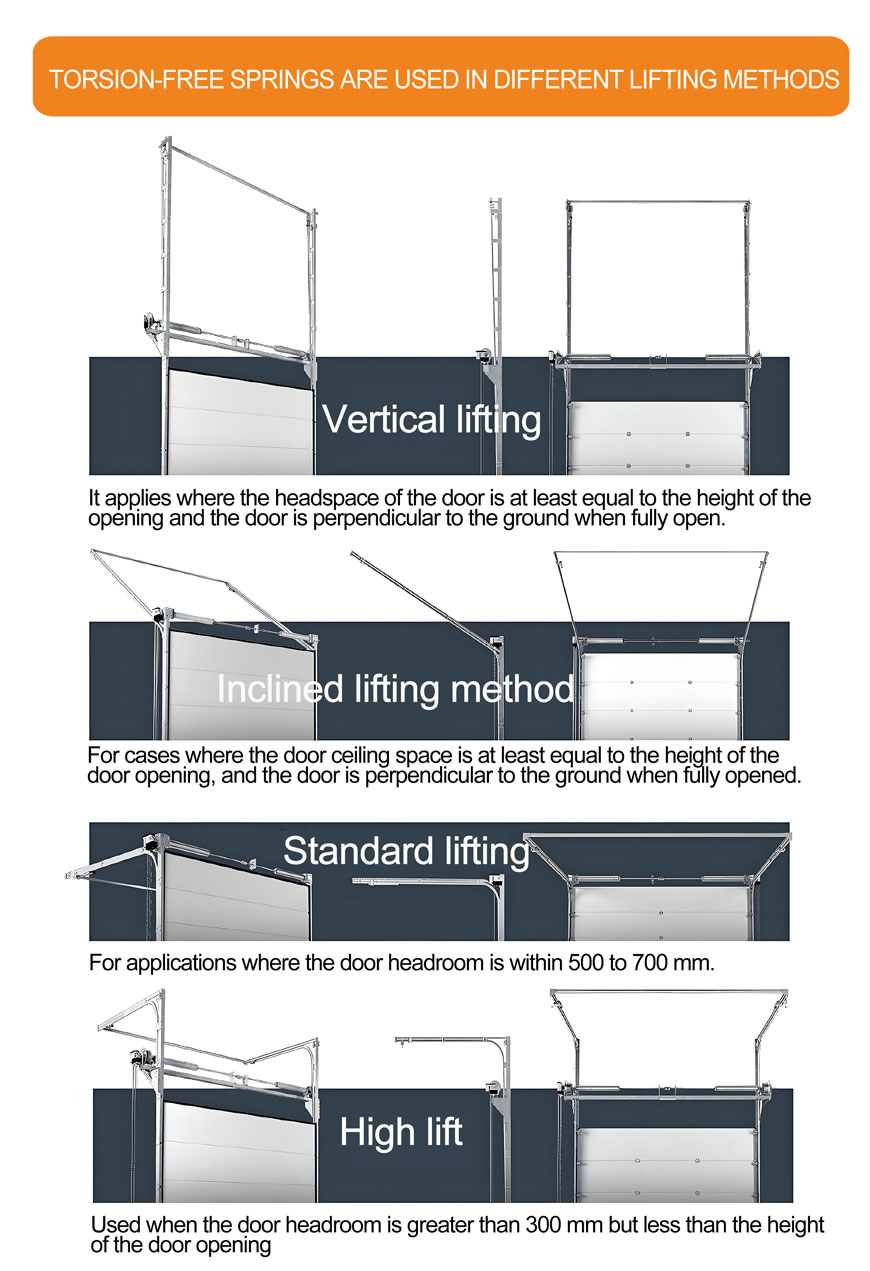

SPECIALIZED MOTORS FOR LIFTING DOOR Brushless-Industrial-Door-Motor_01 Brushless-industrial-liftgate-door-motor_01_03

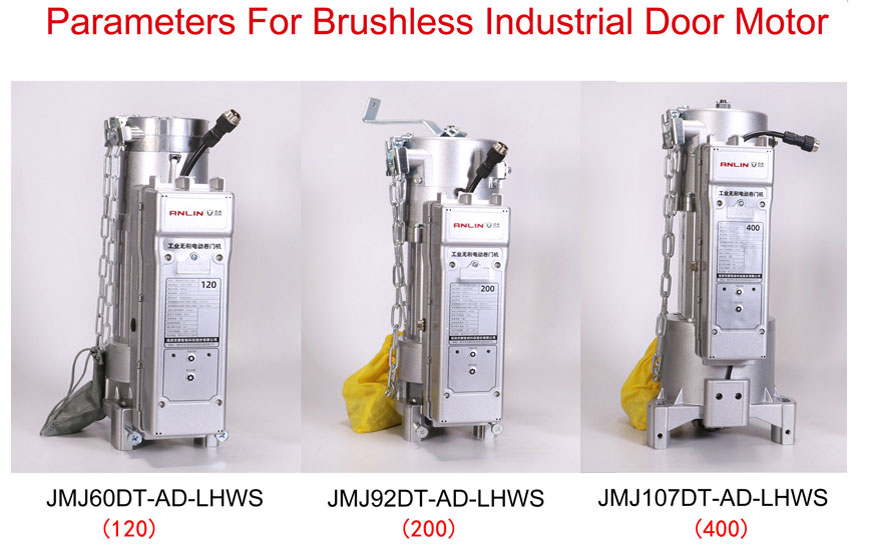

Model	JMJ60DT-AD-LHWS	JMJ92DT-AD-LHWS	JMJ107DT-AD-LHWS
Rated Voltage	220V 50Hz	220V50Hz	220V 50Hz
Rated Wattage	300W	400 W	700W
Rated torque	60 N.m	92 N.m	107 N.m
Rated RPM	36.0r/min	32.0r/min	30.0r/min
Bracket plate output torque (40 teeth/20 teeth)	120 N.m	184 N.m	320 N.m
Bracket plate output speed (40 teeth/20 teeth)	18.0r/min	16.0r/min	10.0r/min
Continuous operation thermal protection	≥8min	≥8min	≥8min
Rated operating time	5min	5min	5min
Lift gate weight	120kg	200kg	400kg
Insulation level	E standard	E standard	E standard
Standardized reel diameter	6”	6”	6”
Maximum Lifting Height	6m	6m	9m
Operating Temperature	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃
Standard	DB 35/T 1111-2019	DB 35/T1111-2019	DB 35/T1111-2019
Outside mounted bracket plate speed	18-20 rpm/min	18-20 rpm/min	/
Inside mounted bracket plate speed	16 rpm/min	16 rpm/min	10 rpm/min

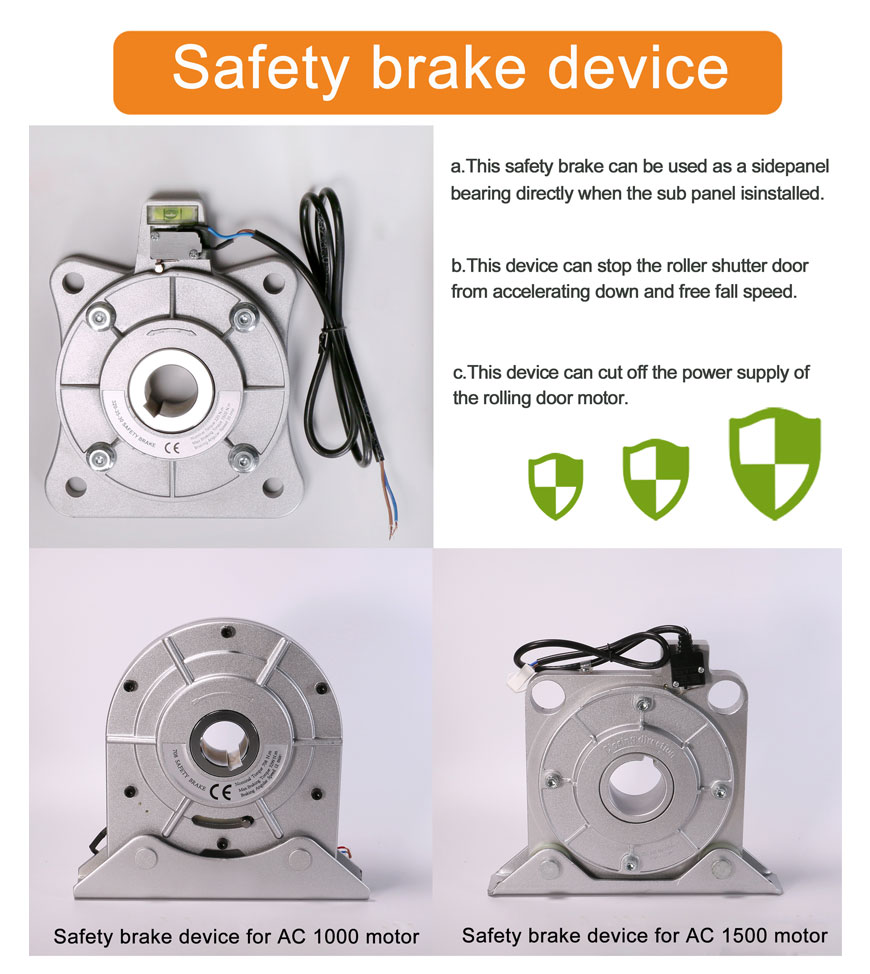

Brushless-Industrial-Door-Motor_08

Parameter
Model	Nominal Torque N.m	Max.Braking Torque N.m	Braking Speed rpm/min-1	Screw Tightenin g Torque N.m	Weight Kg
404	404	1979	14	5	4.3
708	708	3299	12	6	10
1017	1017	3509	7.3	30	11.8

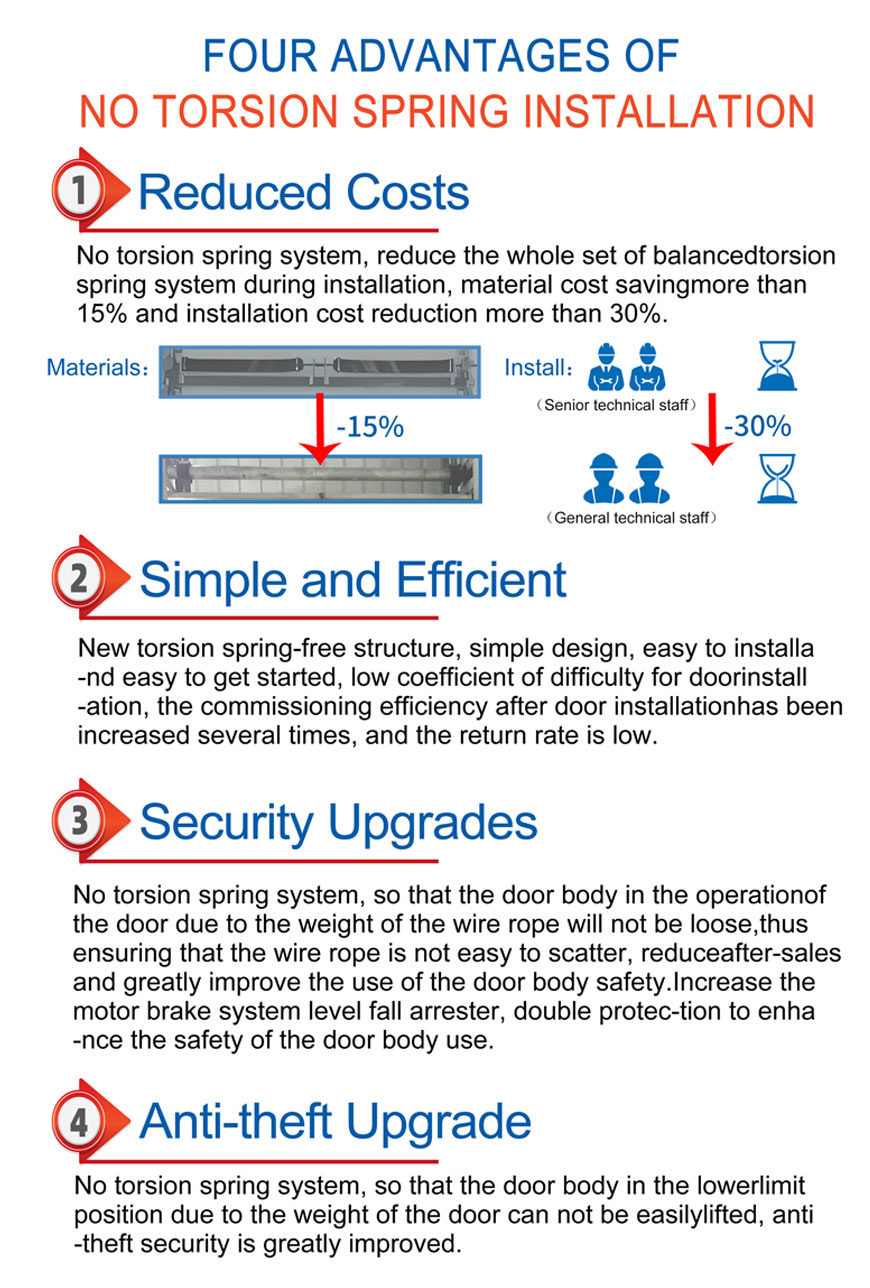

FOUR ADVANTAGES OF

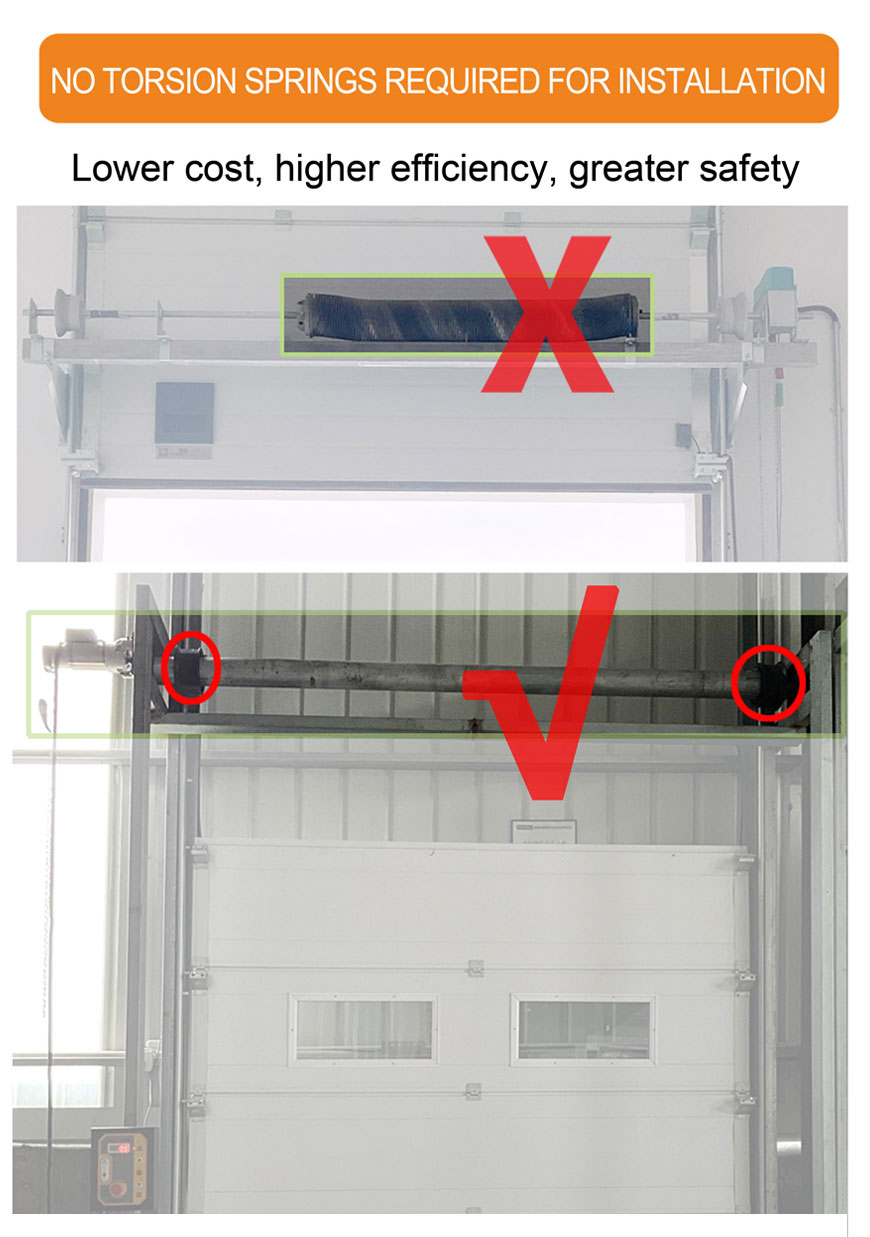

NO TORSION SPRING INSTALLATION

1.Reduced Costs

No torsion spring system, reduce the whole set of balancedtorsion spring system during installation, material cost savingmore than15% and installation cost reduction more than 30%.

2.Simple and Efficient

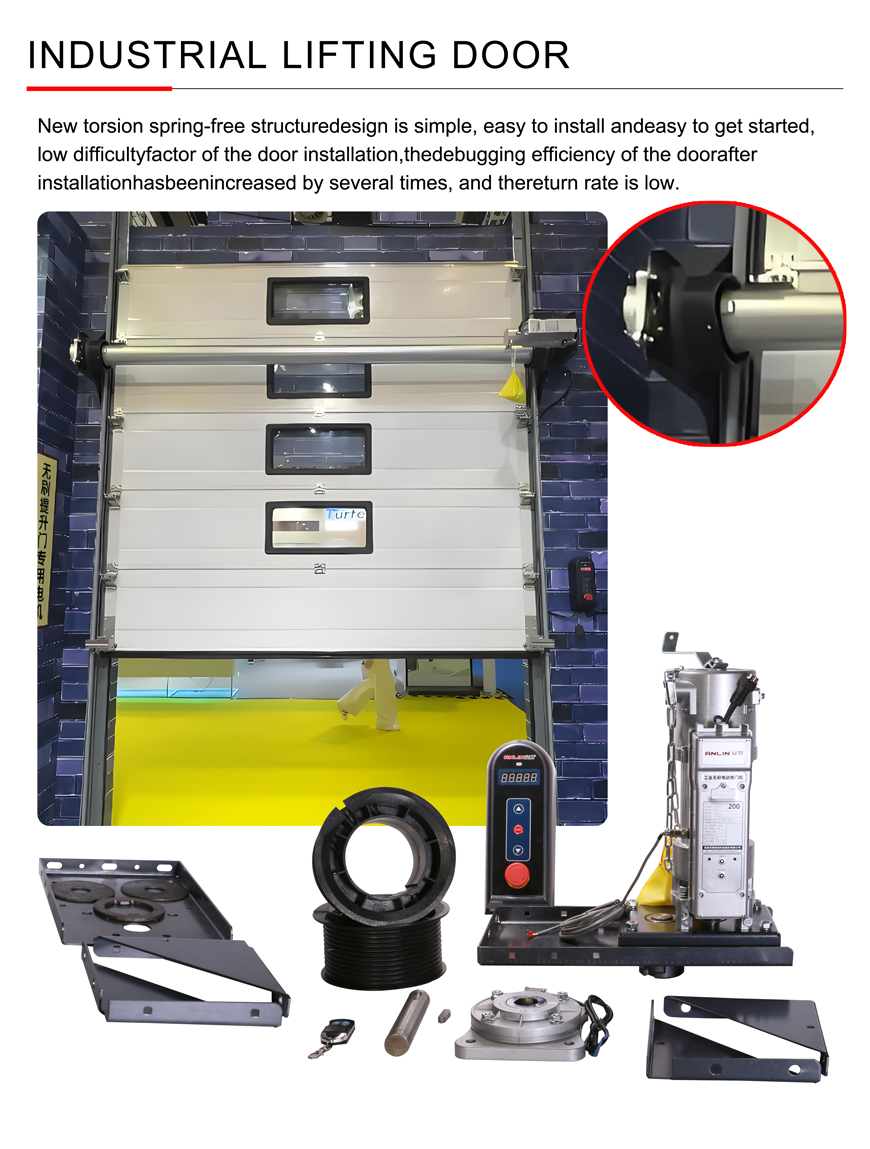

New torsion spring-free structure, simple design, easy to installand easy to get started, low coefficient of difficulty for doorinstallation, the commissioning efficiency after door installationhas been increased several times, and the return rate is low.

3.Security Upgrades

No torsion spring system, so that the door body in the operationof the door due to the weight of the wire rope will not be loose,thus ensuring that the wire rope is not easy to scatter, reduceafter-sales and greatly improve the use of the door body safety.Increase the motor brake system level fall arrester, double protec-tion to enhance the safety of the door body use.

4.Anti-theft Upgrade

No torsion spring system, so that the door body in the lowerlimit position due to the weight of the door can not be easilylifted, anti-theft security is greatly improved.

Brushless Industrial Door Motor
