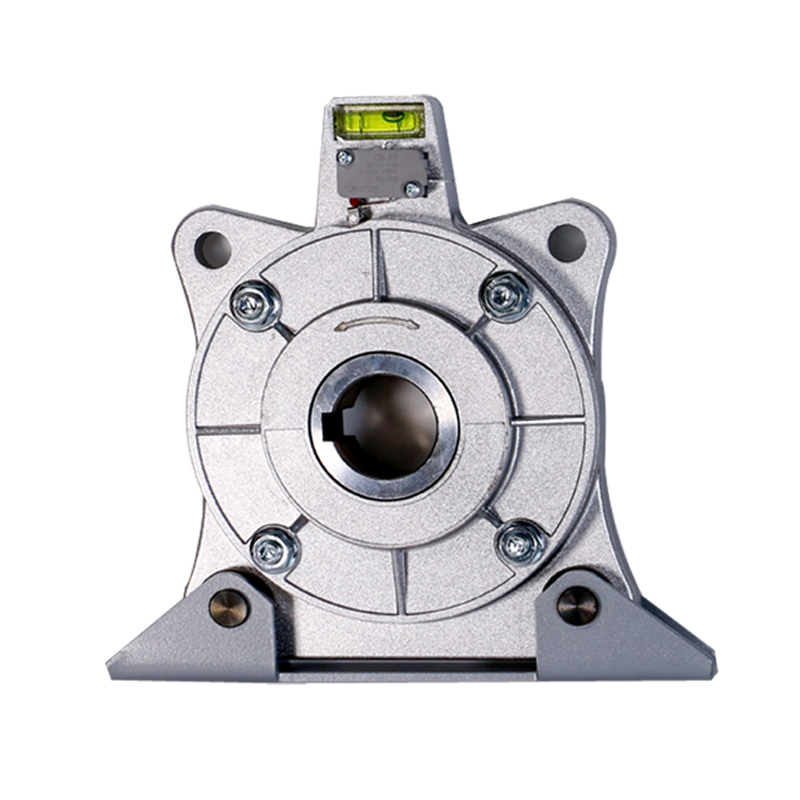

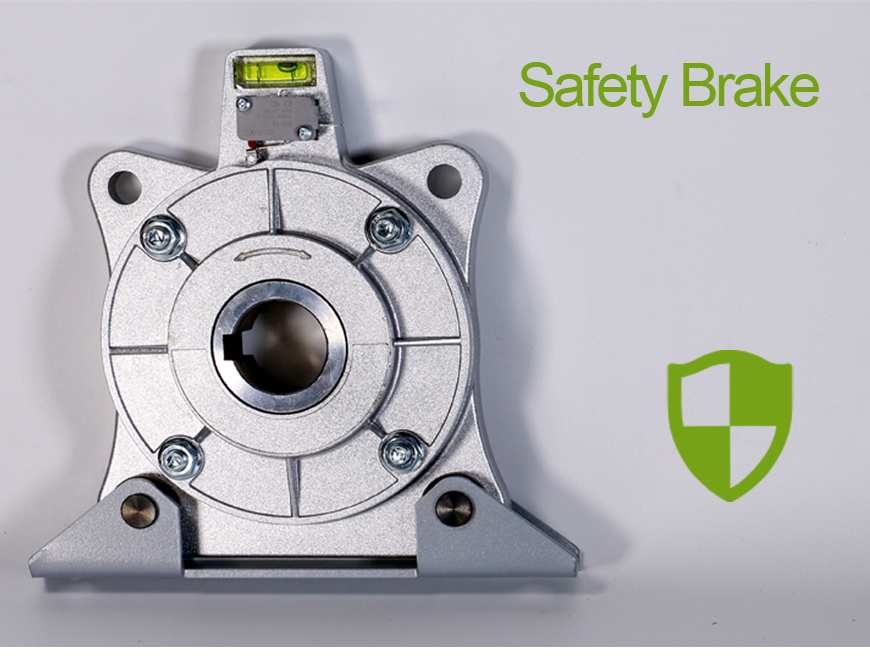

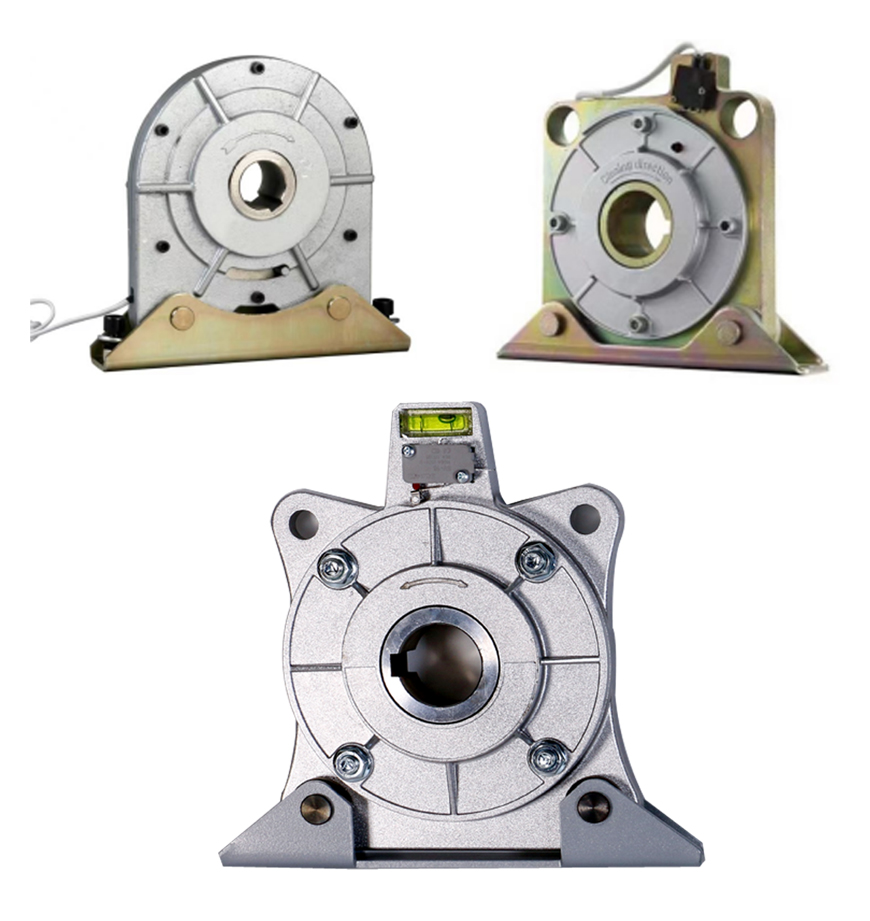

Adding a fall arrester Safety Brake For Rolling Door

The safety brake for rolling door is a crucial component in industrial and commercial applications where rolling doors are used for various purposes, such as warehouses, garages, and storefronts. The primary function of the safety brake is to prevent the door from unexpected closure, which could cause injury or damage to property.
sharethis sharing button


a.This safety brake can be used as a side panel bearing directly when the sub panel is installed.

b.This device can stop the roller shutter door from accelerating down and free fall speed.

c.This device can cut off the power supply of the rolling door motor.


a. The nominal torque of the roll-up door shall be less than the nominal torque of the safety brake.

b. The speed of the roll tube during normal operation of the rolling door must be less than the speed ofthe safety brake.
