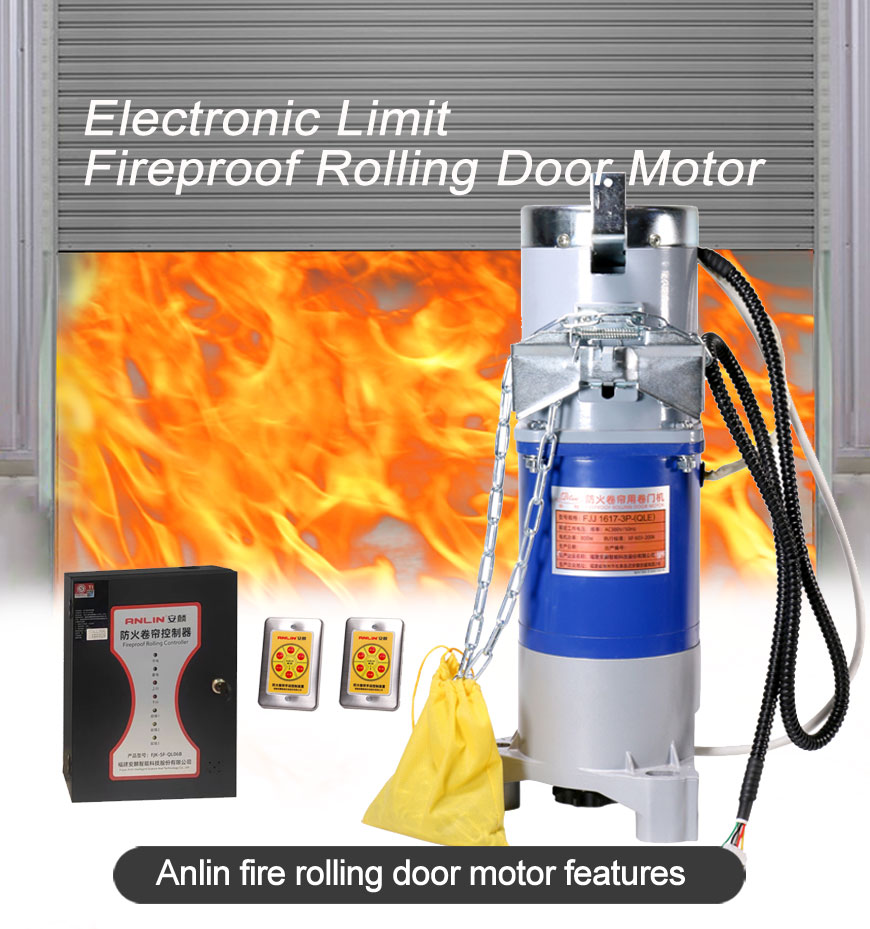

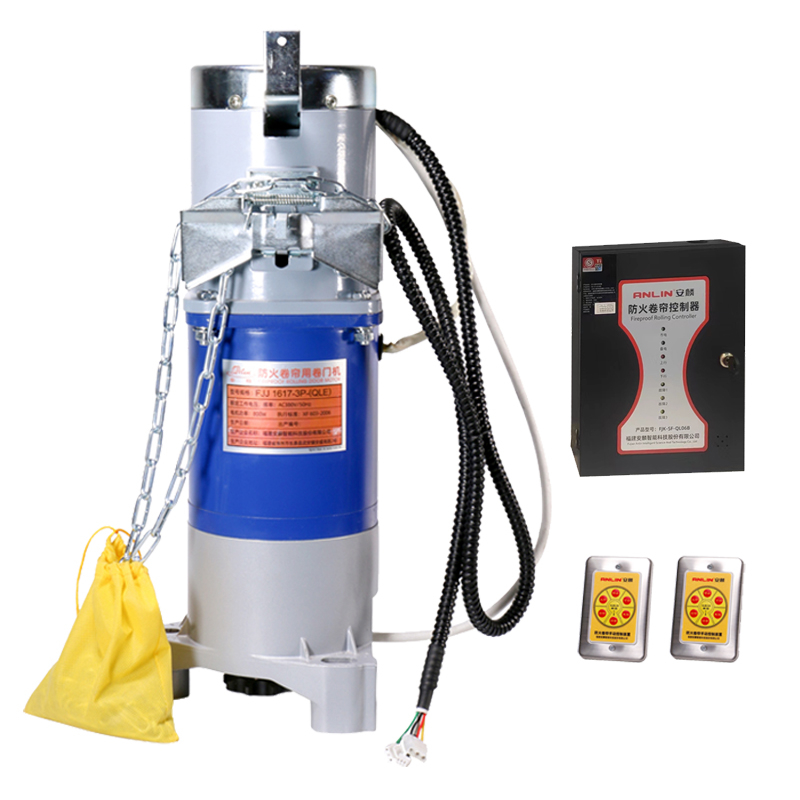

AC2000 three phaseFire-Proof Roller Ro lling Machine Fire Rated Shutters Operators

Fireproof Rolling Door Motor
1.Models are from 600KG to2000KG (can be customized according to customerrequirements)
2.Not affected by power outages

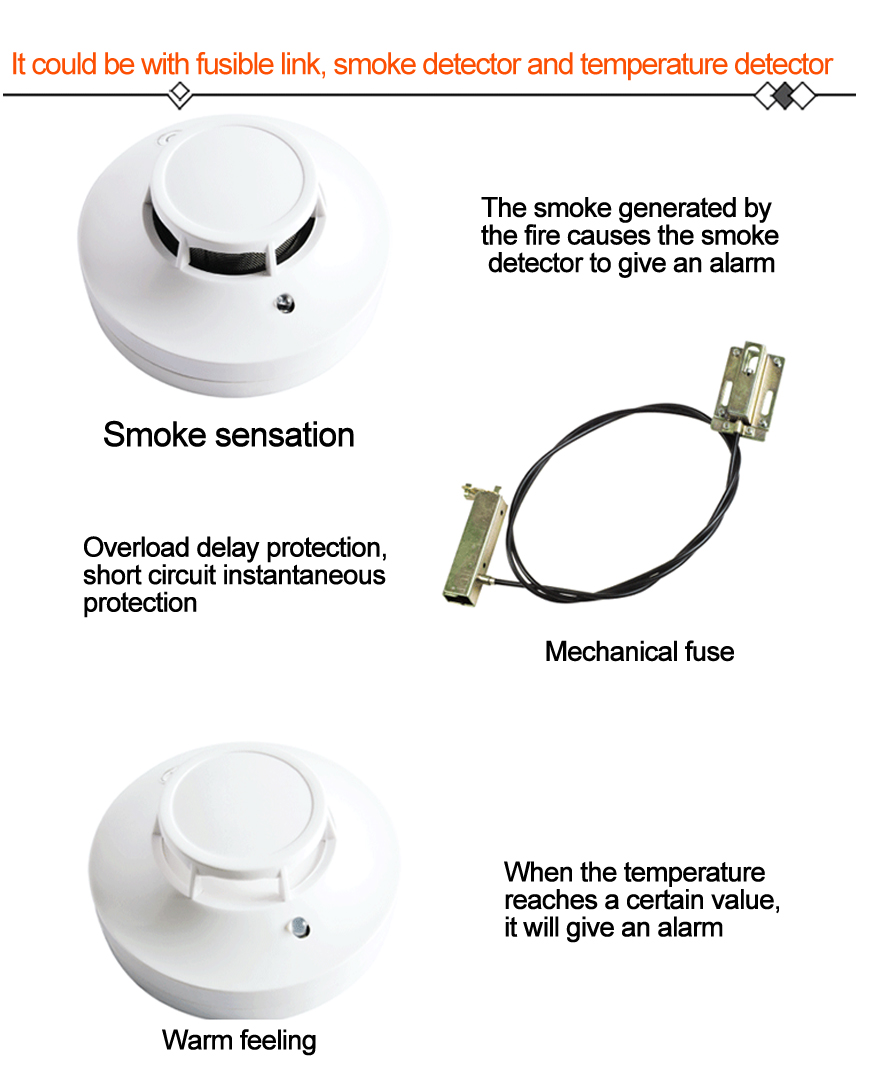

3.A series of fireproof accessories such as smoke sensor and temperature sensor can be configured
4.The whole set of fire shutters could be customized 110V/220V/380V are ok for our Fireproof Roller Door Motor.100% copper material inside the motor, so it have a larger capacity and durable than other motors
Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button
FEATURES
The fire shutter door controller is a fire control device used for public production. It can control the rise and fall of rolling door to achieve evacuation crowd and fire isolation.
It has a quick release control device, which can be realized by starting the power supply when the power supply fails.
The weight of the shutter door decreases intermittently, and there is a median waiting function (waiting time set by itself).Wait until the end of the boot speed again, to the lower limit stop

Fire-resistant-rolling-shutter-door-motor-1500_01Fire-resistant-rolling-shutter-door-motor-1500_02Fire-resistant-rolling-shutter-door-motor-1500_04Fire-resistant-rolling-shutter-door-motor-1500_05Fire-resistant-rolling-shutter-door-motor-1500_06Fire-resistant-rolling-shutter-door-motor-1500_07fire-Rolling-Door-Motor_01

Fireproof Rolling Door Motor Parameter （Electronic limit)
Model Input voltage Rated
power		 Output
speed		 Output
torque		 Advised door weight
when 4" reel		 Advised door weight
when 5" reel		 Advised door weight
when 6" reel		 Advised door weight
when 8" reel		 Elvation Max
elevating
distance		 remark
FJJ 412-3P-(QLE) 380V 50hz 250W 5.5r/min 412N.m 570 460 380 280 600kg 6m Single curtain
FJJ 412-3P-(QLEZ) 380V 50hz 250W 5.5r/min 412N.m 570 460 380 280 600kg 6m Double curtain
FJJ 809-3P-(QLE) 380V 50hz 370W 3.5r/min 809N.m 1020 830 680 510 1000kg 9m Single curtain
FJJ 809-3P-(QLEZ) 380V 50hz 370W 3.5r/min 809N.m 1020 830 680 510 1000kg 9m Double curtain
FJJ 1617-3P-(QLE) 380V 50hz 800W 4.3r/min 1617N.m / / 920 700 1500kg 12m Single curtain

Fire-resistant-rolling-shutter-door-motor-1500_08
