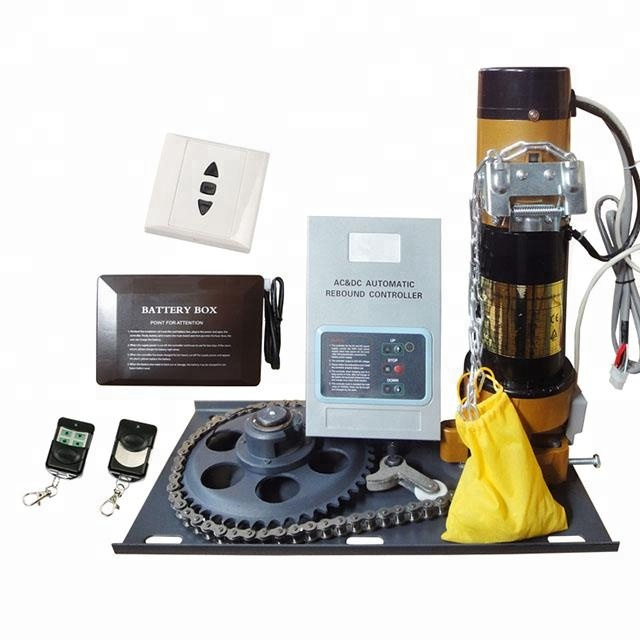

24V DC Roller Shutter Door Motor

MOTOR COMES WITH RESISTANCE REBOUND
The motor comes with the resistance rebound function. No need to instalother accessories to achieve the door to meet the resistance rebound
Availability:
Quantity:
sharethis sharing button
  • W800E-AD

  • Anlin

We produce smoke & fire curtains, residential rolling door motors,bank security rolling door motors, fire shuttor motors ,tubular motors and Australian type motors ,welcome to browse the products you are interested in.

24V DC Roller Shutter Door Motor

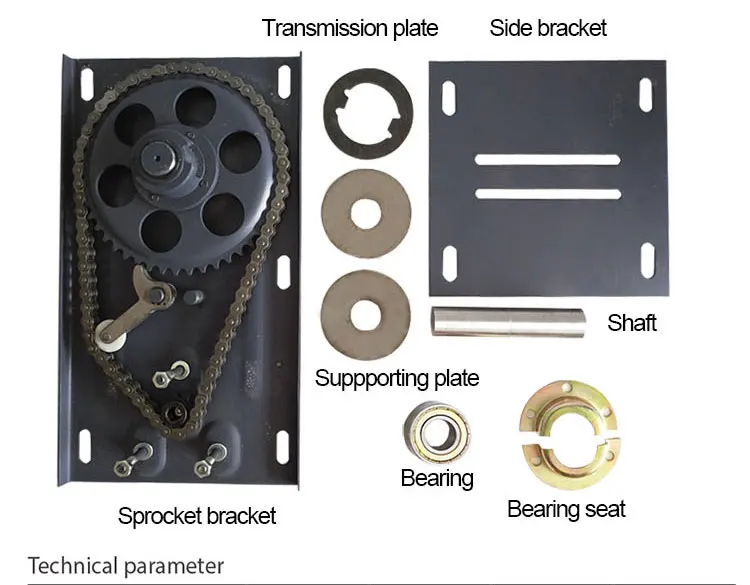

Product configuration


Model W400E-AD W600E-AD W800E-AD W1000E-AD
Input Voltage DC24V DC24V DC24V DC24V
Rated Current 8A 13A 16A 18A
Rated power 220W 280W 430W 430W
Rolling Tube Diameter 4" 5" 6" 6"
Output Torque 225N.m 412N.m 647N.m 809N.m
Output Speed 3.5r/min 3r/min 2.5r/min 2.2r/min
Max elevating distance 6m 6m 9m 9m
Short-time rating ≤15min ≤15min ≤15min ≤15min
Remote control distance  ≥30m ≥30m ≥30m ≥30m

8jpgMOTOR COMES WITH RESISTANCE REBOUND
The motor comes with the resistance rebound function. No need to instalother accessories to achieve the door to meet the resistance rebound9


MOTOR COMES WITH PRY THE DOOR ALARM FUNCTION
Pry the door alarm function, convenient and practical, greatly enhance the practical safety of the door

10

Not need to adjust travel limit on motor of high place
The operator through the controller or remote control button onthe debug, the door is open and close to complete debugging

11

Prevent to rush out of limit position t will not because of the fault limit switch and other factors caused by running out of the limit  Slow downward speed in the greatest extent, revolutionary technologybreak the ordinary ac dc motor downward too fast lead to voltage surge, brake wear and tear, motor overheating and so faults, new technology s very good control the speed of door body downward strengthen the protection of the motor improve the motors service life.

12

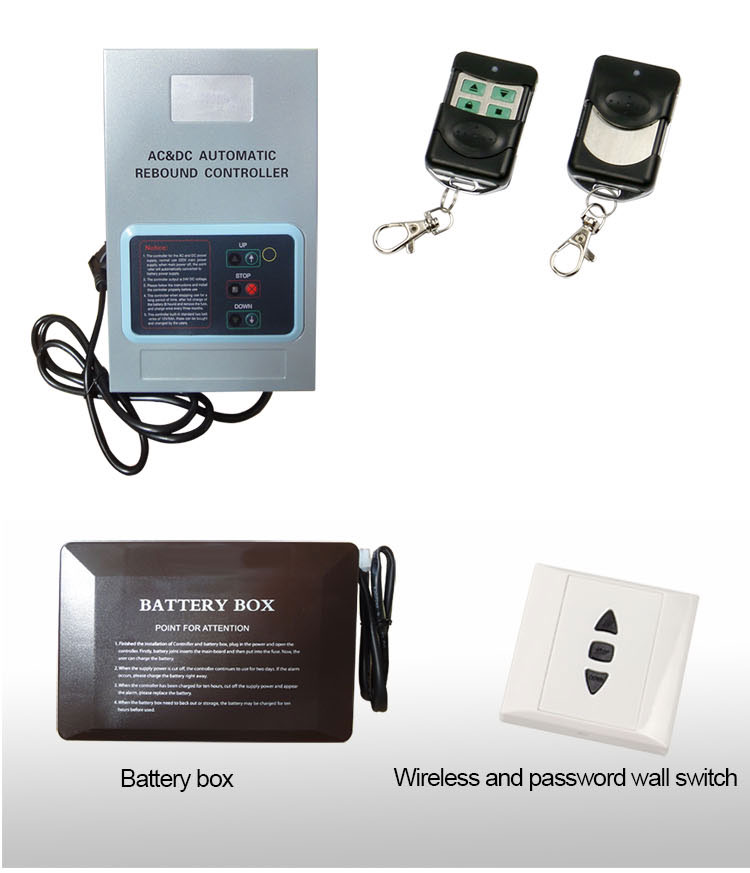

Replace the wire push button, it will save the time for installation, such as dredged trench, buns wire, mending wall and so on. Its easy toinstall wireless wall switch by screw
Adopt the new high performance rechargeable batteries and charge/discharge power management software upgrade improve the protection of the battery, the maximum degree of ascension theservice life of the battery
