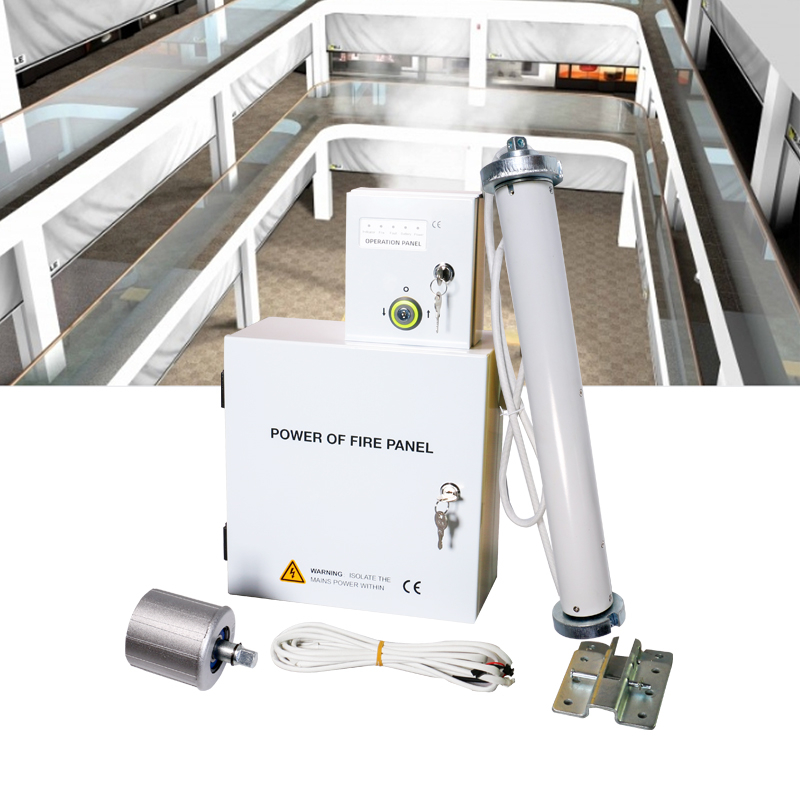

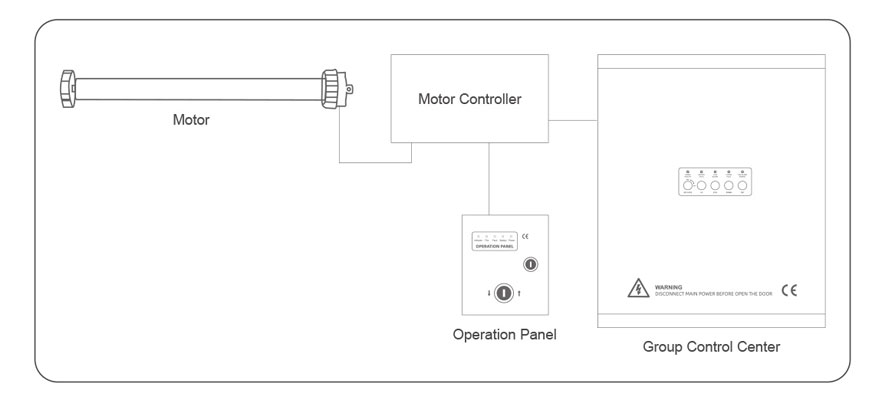

ANLIN fire &smoke curtain system is composed of two parts:drive and control. The drive partis mainly composed of motor,roller,idler and fire fabric. The control part is composed of group control center, motor controller and operation panel.

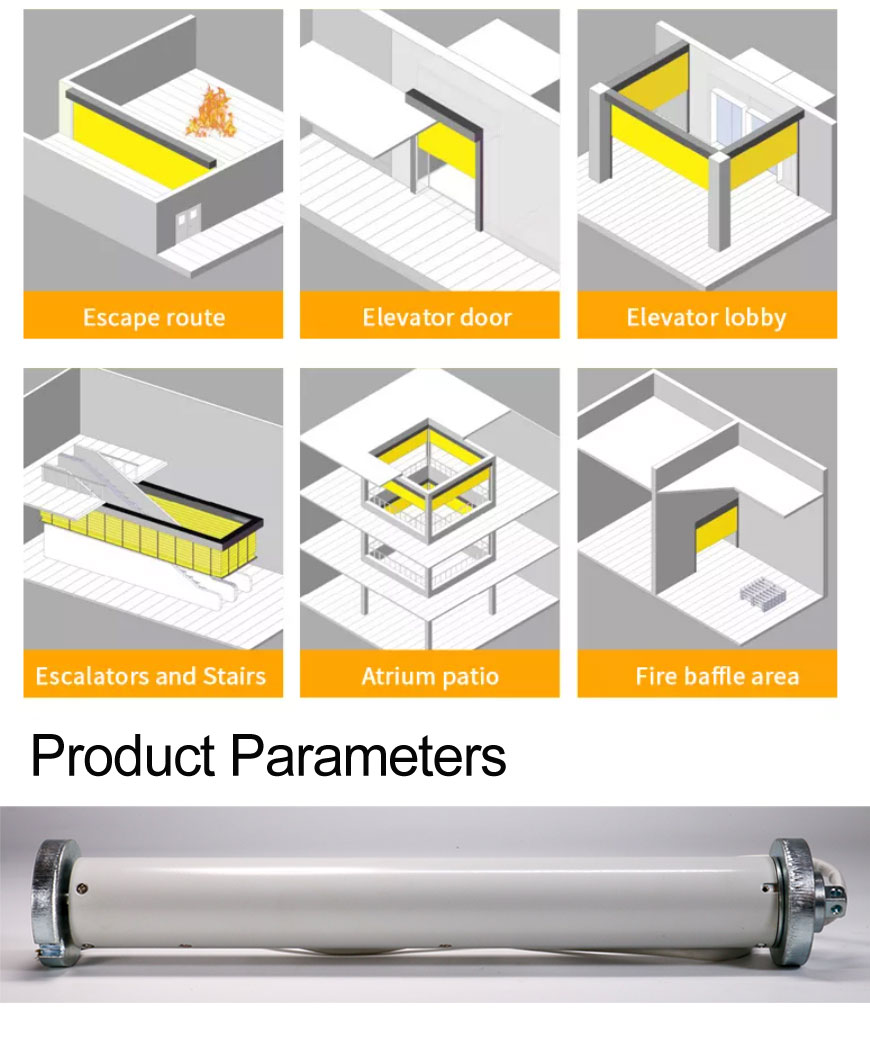

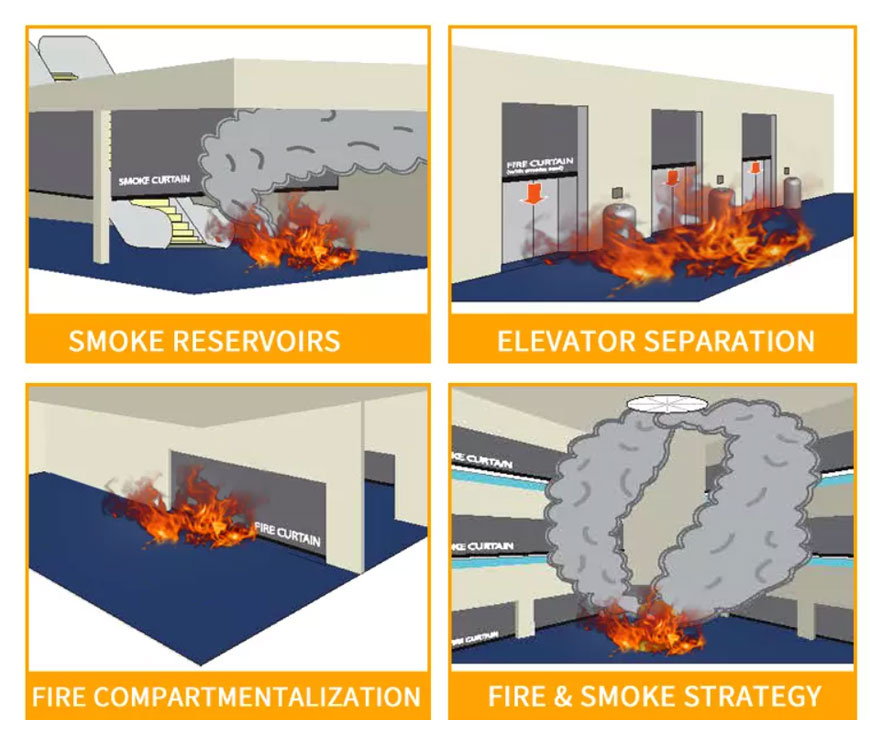

Anlin smoke curtain make up of fiberglass fabric indide stainless steel wire, with double-sided silicone coating material. Smoke curtain can be applied in escape route, elevator door, elevator lobby, escalators and stairs, Atrium Chimney ,etc..
We can customized smoke curtain according to your specific application scenarios.
| Input Voltage | 220V/50HZ |
| Motor Rated Voltage | DC24V |
| Motor Rated Current | 8A |
| Input Power | 192W |
| Output Power | 58W |
| Torque | 30N.m |
| Speed | 18rpm |
| Level of Protection | IP44 |
| Continuous Running time | S2 10min |
| Standby time of batteries back-up while suspending curtain | 24h(7Ah) |
| Descending speed by gravity | between 0.06m/s and 0.15m/s |
ANLIN fire &smoke curtain system is composed of two parts:drive and control. The drive partis mainly composed of motor,roller,idler and fire fabric. The control part is composed of group control center, motor controller and operation panel.
Anlin smoke curtain make up of fiberglass fabric indide stainless steel wire, with double-sided silicone coating material. Smoke curtain can be applied in escape route, elevator door, elevator lobby, escalators and stairs, Atrium Chimney ,etc..
We can customized smoke curtain according to your specific application scenarios.
| Input Voltage | 220V/50HZ |
| Motor Rated Voltage | DC24V |
| Motor Rated Current | 8A |
| Input Power | 192W |
| Output Power | 58W |
| Torque | 30N.m |
| Speed | 18rpm |
| Level of Protection | IP44 |
| Continuous Running time | S2 10min |
| Standby time of batteries back-up while suspending curtain | 24h(7Ah) |
| Descending speed by gravity | between 0.06m/s and 0.15m/s |
